USB3.0/2.0/1.1 To Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description

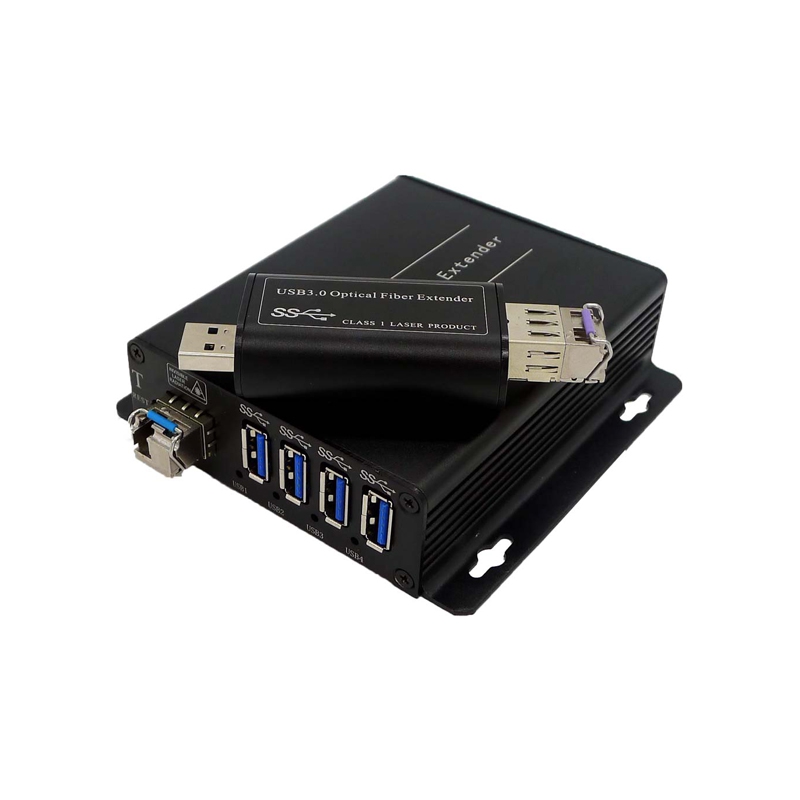

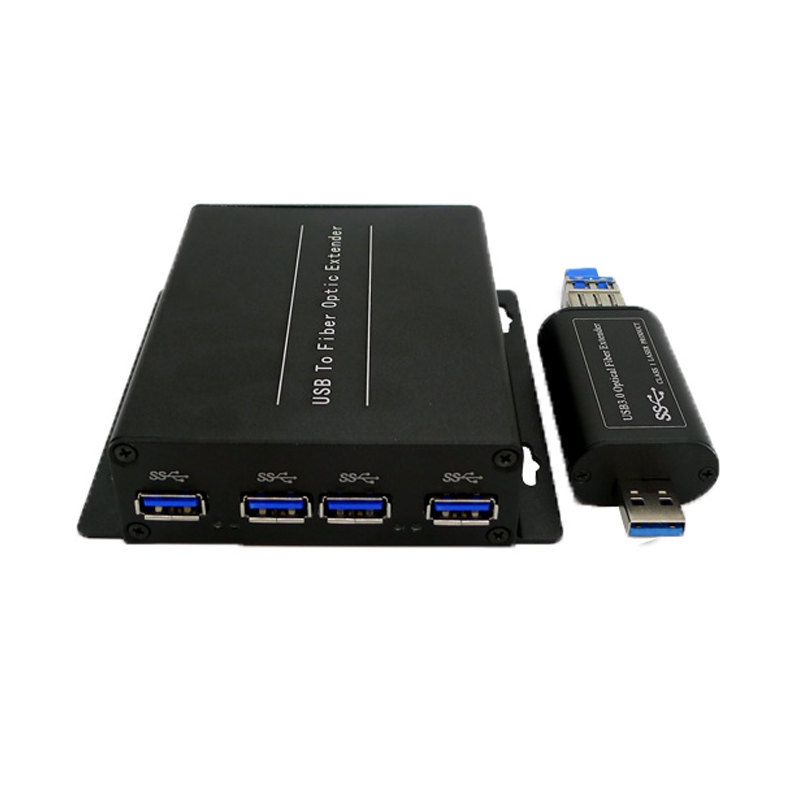

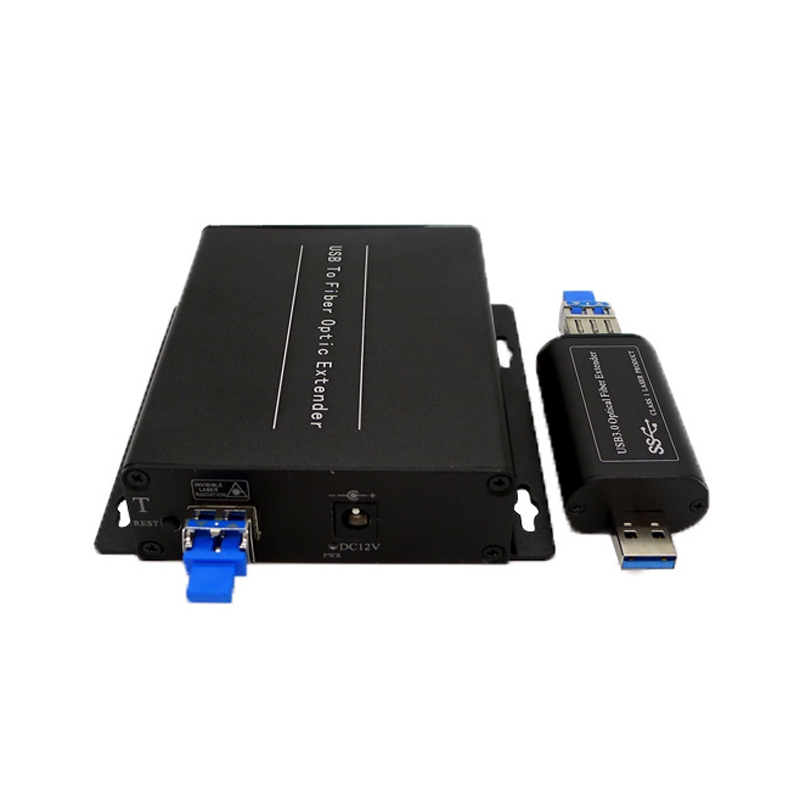

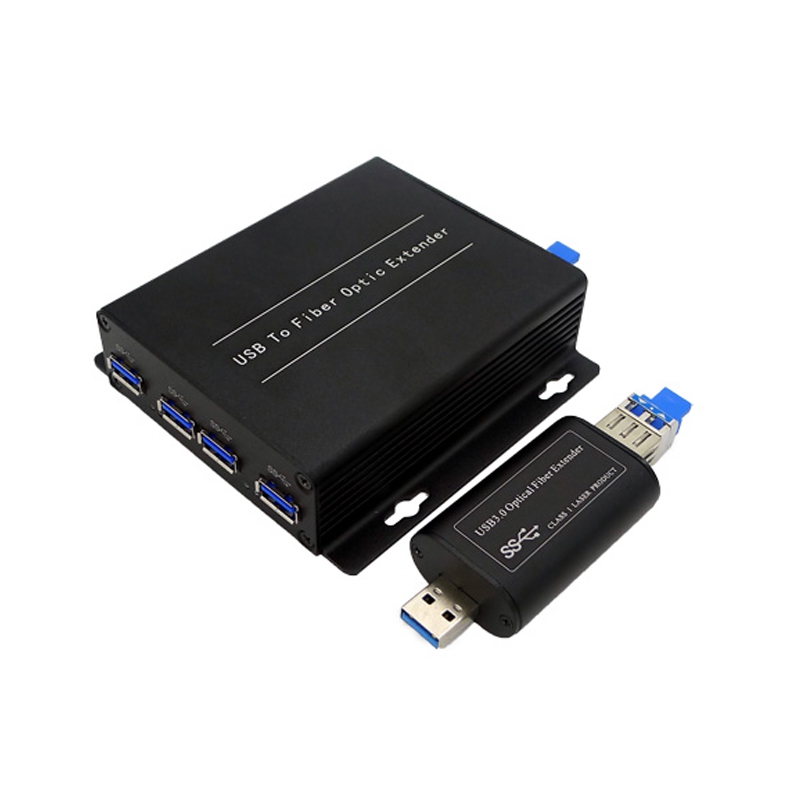

    USB3.0/2.0/1.1 over Fiber, the device includes a transmitter（client-side） and a receiver（host-side）, which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable), also can split 1 USB3.0 interface to 4 USB3.0 interface.
    The device can extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities, Kinect devices etc.

    Feature:
    ● Max extension distance 250m (SM or MM fiber cable).
    ● Duplex/Single LC fiber connecter, pure hardware design, no driver needed, support plug and play
    ● Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
    ● Compatible with USB3.0, USB 2.0 and USB 1.1
    ● Compliantwith Windows 8, Windows 8.1, Windows 10, full version of the LINUX or UNIX operationsystems
    Application
    ● Industrial video transmission
    ● Machine vision system
    ● HD video surveillance system
    ● High - speed data acquisition system
    ● Remote storage
    ● Digital signage and TV wall
    ● Industrial printer system
    ● Kinect devices

    Connection Diagram


    Equipment powered sequence：
    (1) Receiver（host-side）input USB3.0 port
    (2) Transmitter（client-side）powered with the DC 12V adapter
    (3)The USB3.0 device connect to the transmitter（client-side）

    Note：
    After fiber is connected, the fiber indicator is on, otherwise off. After the USB device is inserted, the USB indicator will be on, otherwise off. If the host PC does not recognize the device, you can carry out the following operations:
    1.  press the the REST key of transmitter（client-side）5 seconds, restart the device.
    2.  Connect another USB3.0 interface of host PC.
    3.  uninstall the "USB3.0 hub" in the device manager, re-connect.
    When the device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly.
    Specfication
    Optical
    Wavelength:
    1310nm
    Output Power :
    -14~ -8dBm /-5~0dBm
    Optic fiber :
    50/125u multimode, 62.5/125u multimode, 9/125u single mode
    Rx sensitivity :
    -30dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~250Meter(SM)
    USB Signal
    USB protocol:
    USB3.0/2.0/1.1
    Use:
     Support USB3.0/2.0/1.1 Source
    Number of  Transmitter Channel :
    1 * USB3.0/2.0/1.1 Port
    Number of  Receiver Channel :
    1 * USB3.0/2.0/1.1 port

    Electrical & Mechanical
    Input Power Requirements :
    DC 5V~12V
    Transmitter Power:
     < 20W
    Transmitter Power Consumption:
    < 5W, Powered by USB Cable, don‘t need external power adapter required
    Dimension:
    104*104*28mm
    Shipping Weight :
    (include Transmitter & Receiver ) 0.75Kg
    Material:
    Aluminium Alloy
    Color:
    Black

    Environmental
    Operation Temperature :
    -20°C ~ +70°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    USB interface(Type A):
    RX
    1,         connect to PC
    TX
    1,         connect to USB device

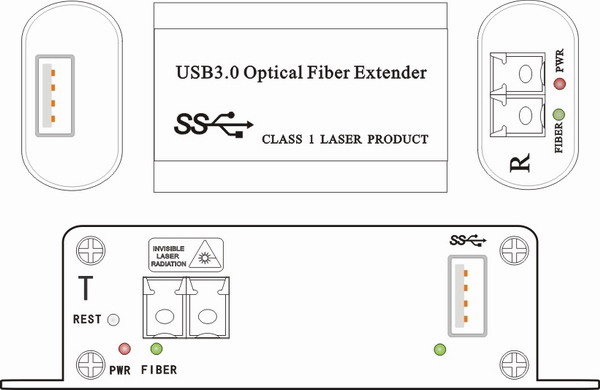

    Panel Diagram
