PCI-E To USB3.0 Over Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    PCI-E To USB3.0 Over Fiber, the device includes a PCI-E to USB3.0 fiber expansion card（host-side）and a transmitter（client-side）, which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 150m (SM or MM fiber cable), also can split 1 USB3.0 interface to 4 USB3.0 interface.
    The device can extend high bandwidth USB3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities, Kinect devices etc.

    Feature:
    ●  Compliant with PCI Express Base 2.0 Specification
    ●  Compliant with xHCI Specification Revision 1.0
    ●  Max extension distance 250m (SM or MM fiber cable).
    ●  Duplex/Single LC fiber connecter,
    ●  Pure hardware design, no driver needed, support plug and play
    ●  Compliantwith Windows 8, Windows 8.1, Windows 10, full version of the LINUX or UNIX operation systems
    ●  Support USB3.0 SuperSpeed up to 5Gbps, 4 USB3.0 Type A Receptacle
    ●  Not backwards compatible with USB2.0 and USB1.1
    Application
    ● Industrial video transmission
    ● Machine vision system
    ● HD video surveillance system
    ● High - speed data acquisition system
    ● Rmote storage
    ● Digital signage and TV wall
    ● Industrial printer system
    ● Kinect devices
    Equipment powered sequence：
    (1) PCI-E to USB3.0 fiber expansion card plug in the PC PCI-E slot
    (2) Transmitter（client-side）powered with the DC 5 / 12V adapter
    (3) Connect the PCI-E to USB3.0 fiber expansion card and transmitter with fiber optics
    (4) The USB3.0 device connect to the transmitter（client-side）

    Note：After fiber is connected, the fiber indicator is on, otherwise off. After the USB device is inserted, the USB indicator will be on, otherwise off.

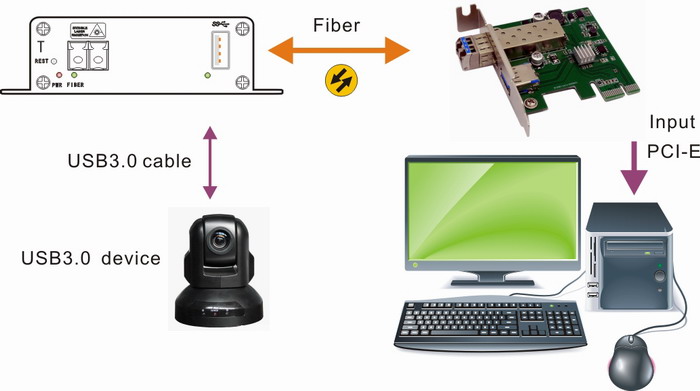

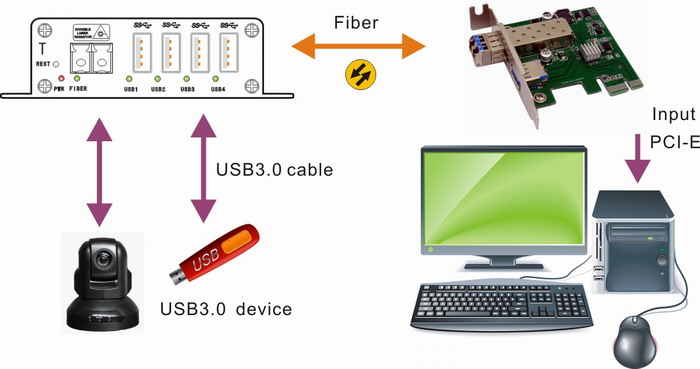

    Connection  Diagram


    Specfication
    Optical
    Wavelength:
    1310nm
    Output Power :
    -14~ -8dBm /-5~0dBm
    Optic fiber :
    50/125u multimode, 62.5/125u multimode, 9/125u single mode
    Rx sensitivity :
    -30dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~250Meter(SM)
    USB Signal
    USB protocol:
    USB3.0
    Use:
     Support USB3.0 Source
    Number of Transmitter Channel :
    4 * USB3.0 Port only, don‘t compatible with USB2.0 and 1.1
    Number of Receiver Channel :
    1 * PCI-E Card

    Electrical & Mechanical
    Input Power Requirements :
    DC 5V~12V
    Transmitter Power:
     < 20W
    Transmitter Power Consumption:
    < 5W, Powered by USB Cable, don‘t need external power adapter required
    Dimension:
    104*104*28mm
    Shipping Weight :
    (include Transmitter & Receiver ) 0.75Kg
    Material:
    Aluminium Alloy
    Color:
    Black

    Environmental
    Operation Temperature :
    -20°C ~ +70°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    USB interface(Type A):
    RX
    1,         connect to PC
    TX
    4,         connect to USB device
    Panel Diagram
