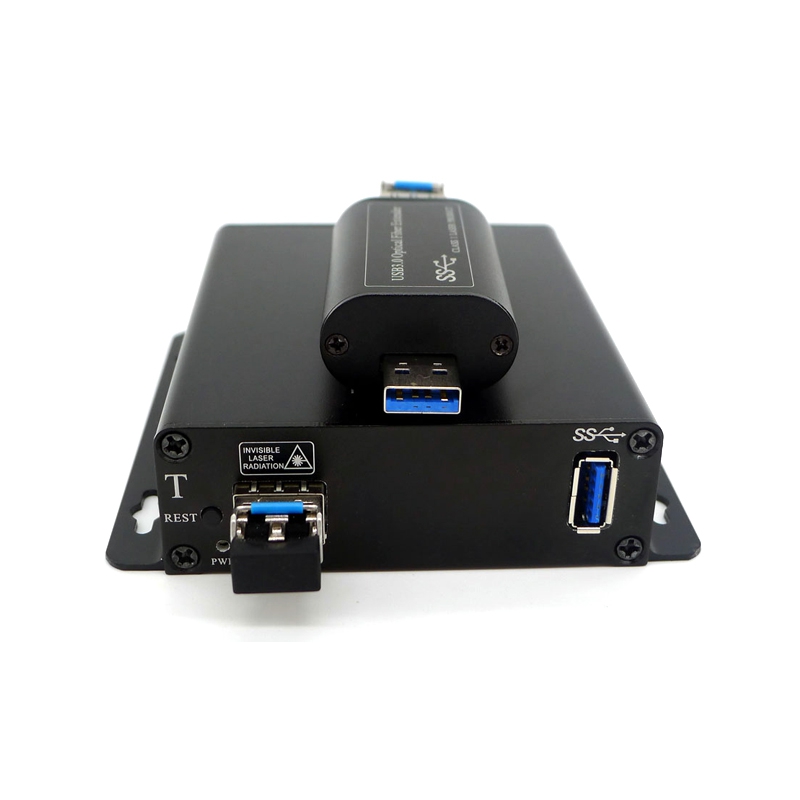

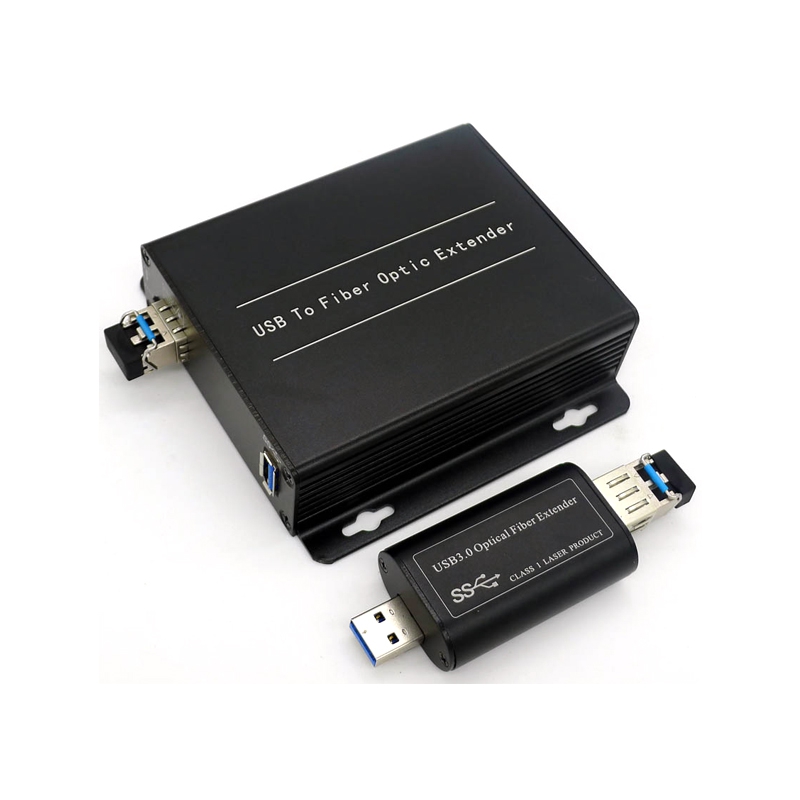

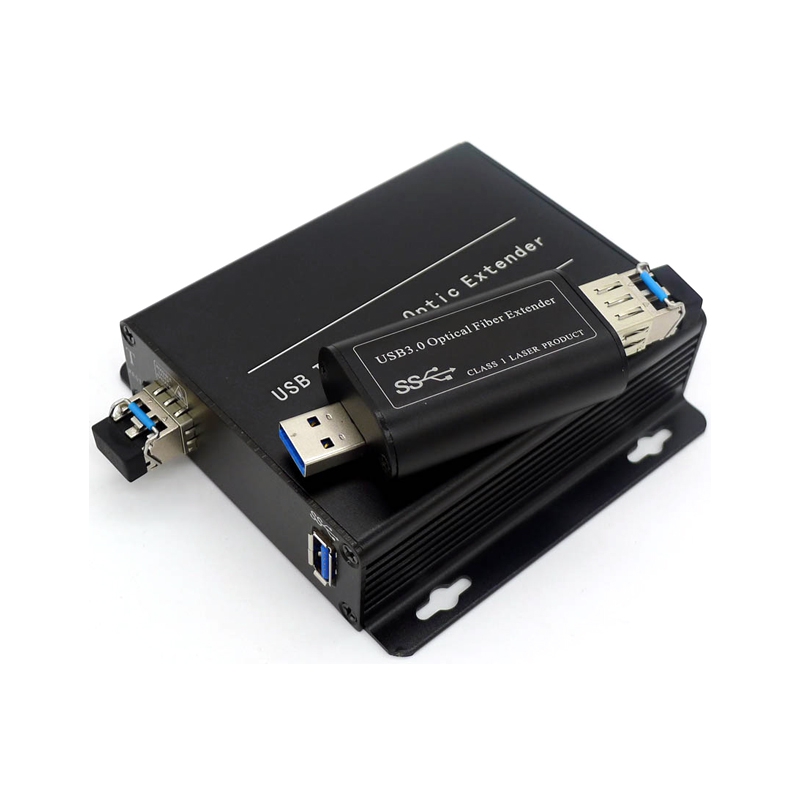

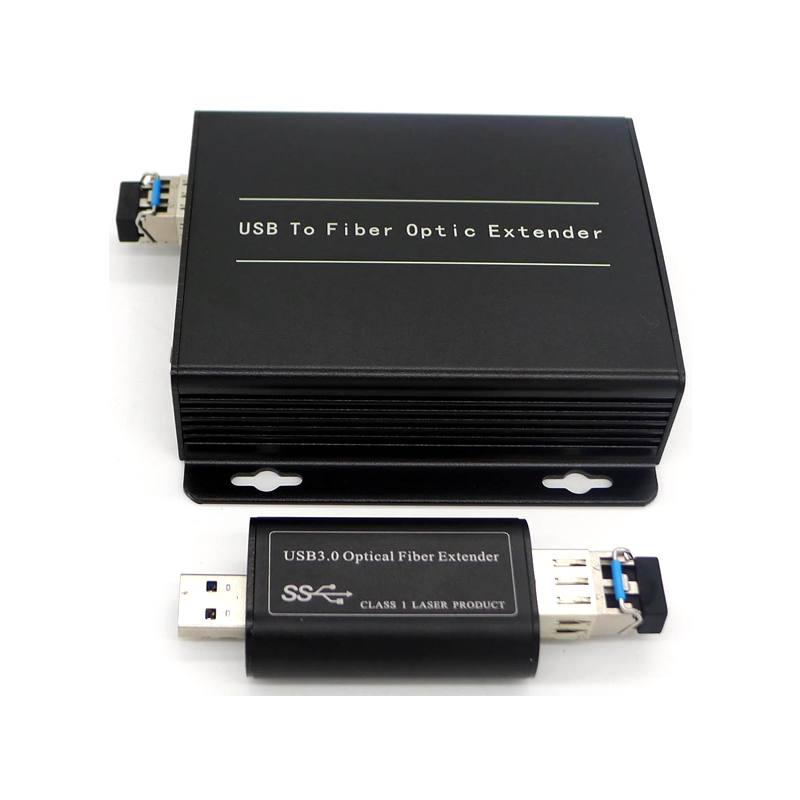

USB3.0 Optical Fiber Extender, also called USB3.0 To Fiber Converter. The device includes a transmitter（client-side） and a receiver（host-side）, which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 150m (SM or MM fiber cable).
The device can extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities,Kinect devices etc.
Feature:
●Max extension distance 150m (SM or MM fiber cable).
●Duplex/Single LC fiber connecter,
●pure hardware design, no driver needed,, support plug and play
●Compliant with Windows8, Windows 8.1, Windows 10, full version of the LINUX or UNIX operation systems
●Support USB3.0 SuperSpeed up to 5Gbps, USB3.0 Type A Receptacle
●Not backwards compatible with USB2.0 and USB1.1
●Support Kinect devices

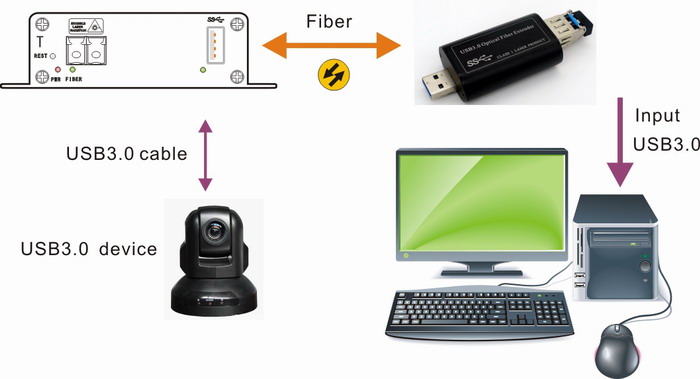

Connection Diagram
|
Optical
|
|
|
Wavelength:
|
1310/1550nm
|
|
Output Power :
|
-14~ -8dBm /-5~0dBm
|
|
Optic fiber :
|
50/125u multimode, 62.5/125u multimode, 9/125u single mode
|
|
Rx sensitivity :
|
-30dBm
|
|
Optical connector :
|
FC /ST /SC /LC (optional)
|
|
Distance :
|
0~250Meter(SM)
|
|
USB Signal
|
|
|
USB protocol:
|
USB2.0
|
|
Use:
|
For all USB2.0 Source
|
|
Number of Transmitter Channel :
|
1 * USB3.0 Port only, don‘t compatible with USB2.0 and 1.1
|
|
Number of Receiver Channel :
|
1 * USB3.0 port only, don‘t compatible with USB2.0 and 1.1
|
|
Electrical & Mechanical |
|
|
Input Power Requirements :
|
DC 5V~12V
|
|
Transmitter Power:
|
< 20W
|
|
Transmitter Power Consumption:
|
< 5W, Powered by USB Cable, don‘t need external power adapter required
|
|
Dimension:
|
104*104*28mm
|
|
Shipping Weight :
|
(include Transmitter & Receiver ) 0.75Kg
|
|
Material:
|
Aluminium Alloy
|
|
Color:
|
Black
|
|
Environmental |
|
|
Operation Temperature :
|
-20°C ~ +70°C
|
|
Storage Temperature :
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
|

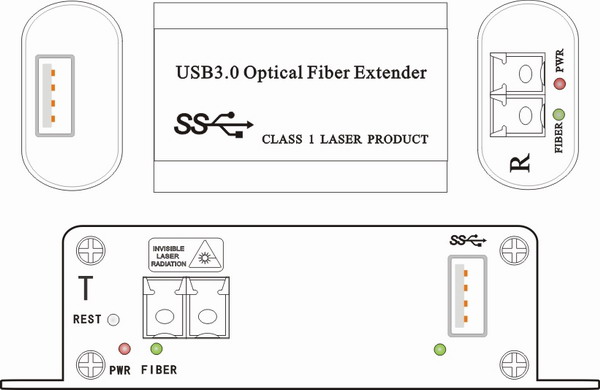

RX
|
1, connect to PC
|
|
TX
|
1, connect to USB device
|
 |
