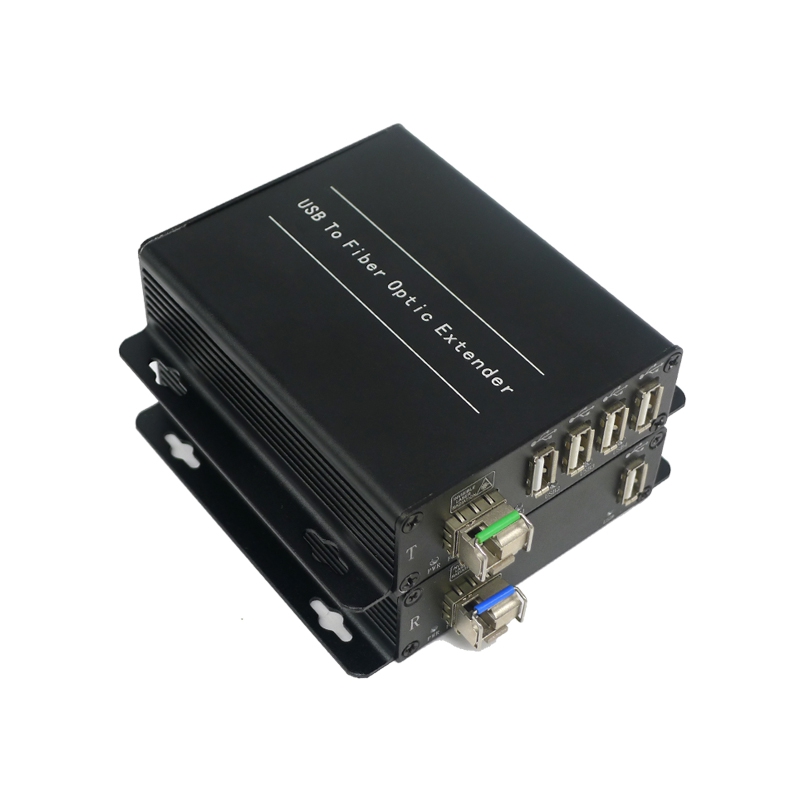

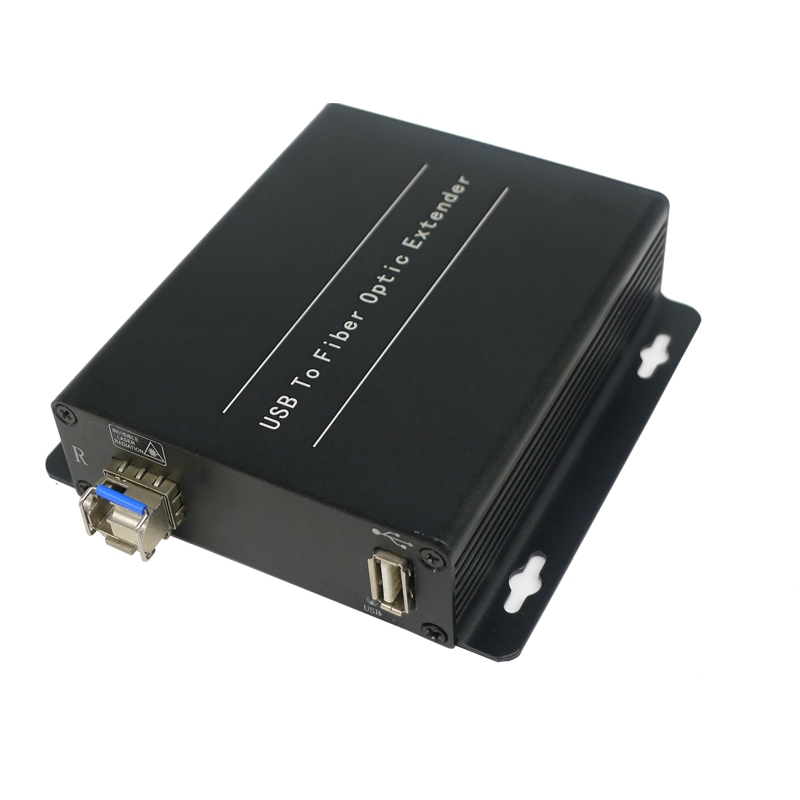

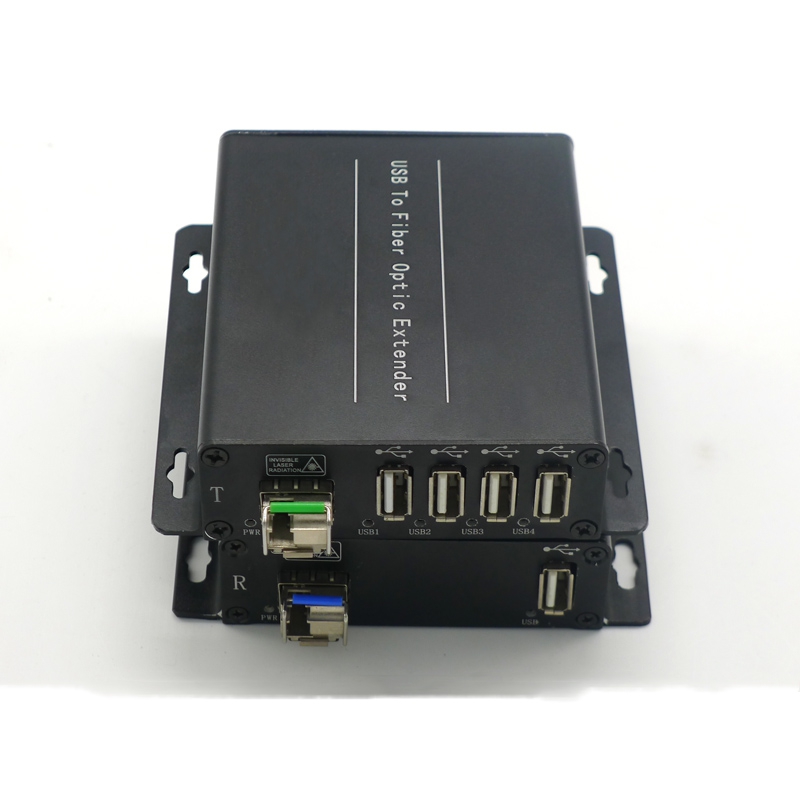

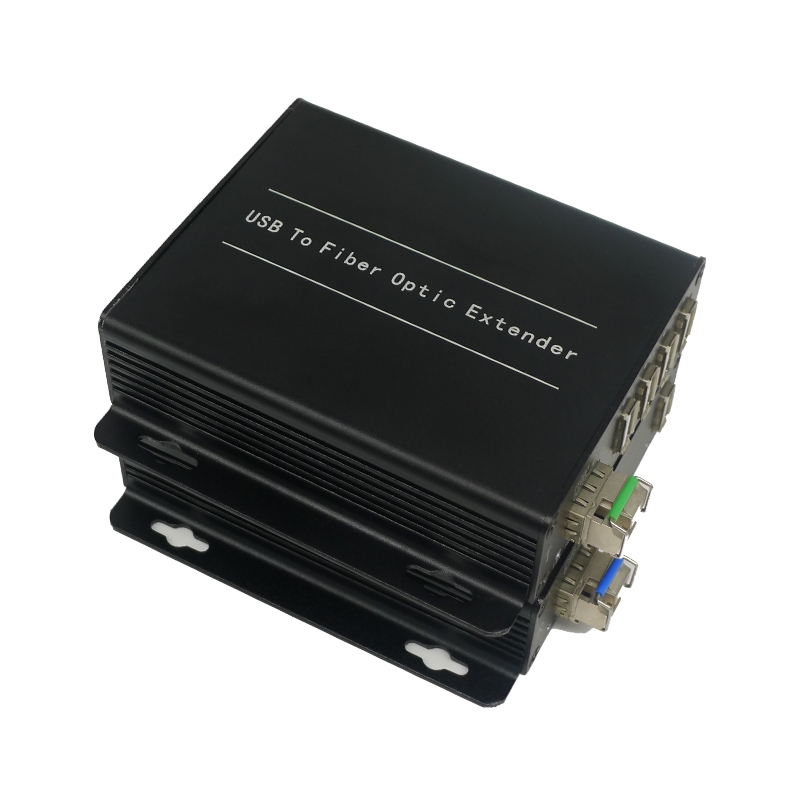

4 Port USB2.0 To Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description

    USB2.0 To Fiber Optic Extender, also called USB2.0 To Fiber Converter. The device includes a transmitter and a receiver, which can extend USB2.0 device to a remote location over 1 fiber cable, max distance 250m (SM or MM fiber cable) or SM 5KM.
    The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

    Feature:
    ● Max extension distance 250m (SM or MM fiber cable) or SM 5KM.
    ● Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
    ● Auto recognition of High-speed(25Mbps~480Mbps)、Full-speed(500Kbps~12Mbps)、Low-speed(10Kbps~1.5Mbps)USB device.
    ● Support USB1.1 and USB2.0 devices, cameras, printers, U disk, scanners, audio devices, touch screens, game controllers, mouse and keyboard, etc.

    Connection  Diagram

    Specfication
    Optical
    Wavelength:
    1310/1550nm
    Output Power :
    -14~ -8dBm /-5~0dBm
    Optic fiber :
    50/125u multimode, 62.5/125u multimode, 9/125u single mode
    Rx sensitivity :
    -30dBm
    Optical connector :
    FC /ST /SC /LC (optional)
    Distance :
    0~250Meter(SM) or 0~5KM
    USB Signal
    USB protocol:
    USB2.0
    Use:
    For all USB2.0 Source
    Number of  Transmitter Channel :
    4 * USB2.0 Port
    Number of  Receiver Channel :
    1 * USB2.0 port

    Electrical & Mechanical

    Input Power Requirements :
    DC 5V~12V
    Transmitter Power:
     < 20W
    Transmitter Power Consumption:
    < 5W, Powered by USB Cable, don‘t need external power adapter required
    Dimension:
    104*104*28mm
    Shipping Weight :
    (include Transmitter & Receiver ) 0.75Kg
    Material:
    Aluminium Alloy
    Color:
    Black

    Environmental

    Operation Temperature :
    -20°C ~ +70°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    USB interface(Type A):
    RX
    1,         connect to PC
    TX
     4,         connect to USB device
