Optical
|
|
|
Wavelength:
|
1310/1550nm
|
|
Output Power :
|
-14~ -8dBm /-5~0dBm
|
|
Optic fiber :
|
50/125u multimode, 62.5/125u multimode, 9/125u single mode
|
|
Rx sensitivity :
|
-30dBm
|
|
Optical connector :
|
FC /ST /SC /LC (optional)
|
|
Distance :
|
0~250Meter(SM) or 0~5KM
|
|
USB Signal
|
|
|
USB protocol:
|
USB2.0
|
|
Use:
|
For all USB2.0 Source
|
|
Number of Transmitter Channel :
|
1 * USB2.0 Port
|
|
Number of Receiver Channel :
|
1 * USB2.0 port
|
|
Electrical & Mechanical |
|
|
Input Power Requirements :
|
DC 5V~12V
|
|
Transmitter Power:
|
< 20W
|
|
Transmitter Power Consumption:
|
< 5W, Powered by USB Cable, don‘t need external power adapter required
|
|
Dimension:
|
104*104*28mm
|
|
Shipping Weight :
|
(include Transmitter & Receiver ) 0.75Kg
|
|
Material:
|
Aluminium Alloy
|
|
Color:
|
Black
|
|
Environmental |
|
|
Operation Temperature :
|
-20°C ~ +70°C
|
|
Storage Temperature :
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
|

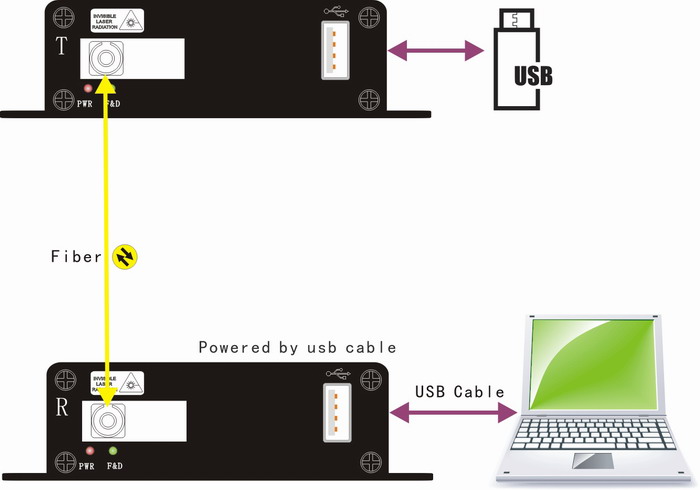

RX
|
1, connect to PC
|
|
TX
|
1 , connect to USB device
|
 |
