Sony Remote To Fiber Converter Standard 8-pin Sony Remote Connector to Optical Fiber

  • Description
  • Technical data
  • Make an inquiry
    Description

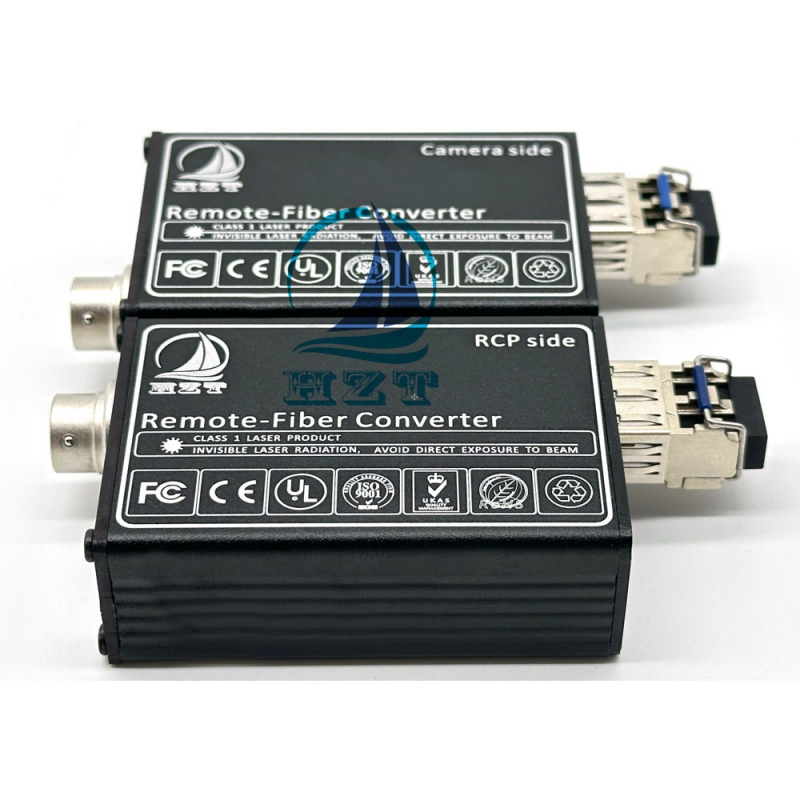

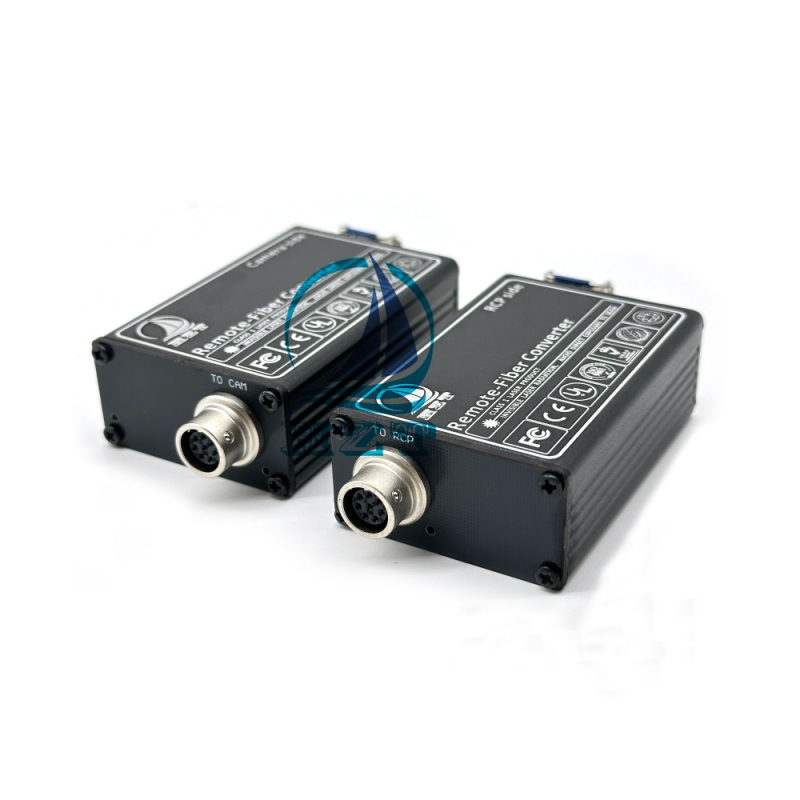

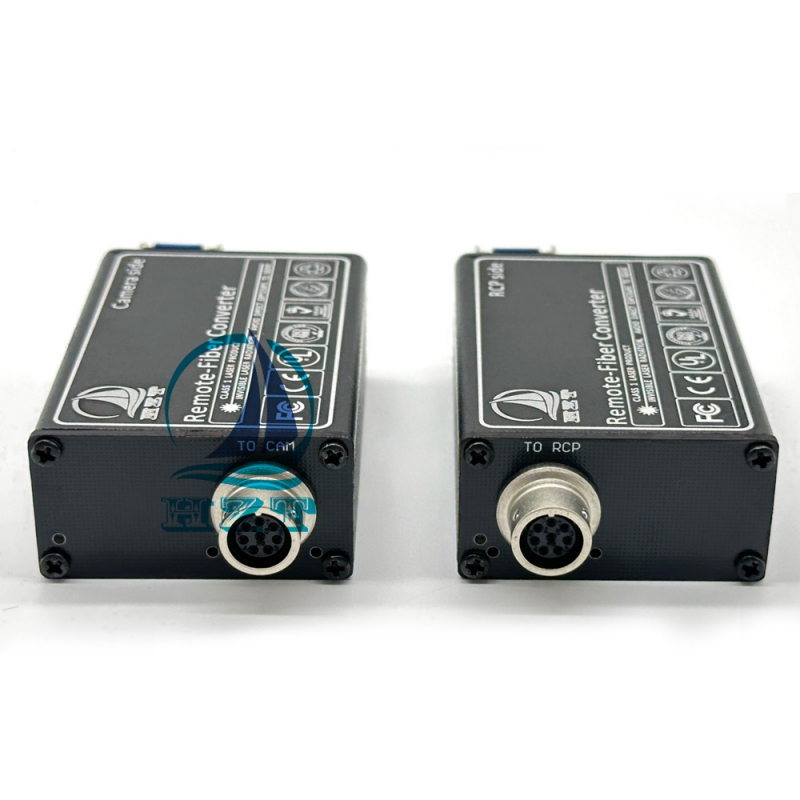

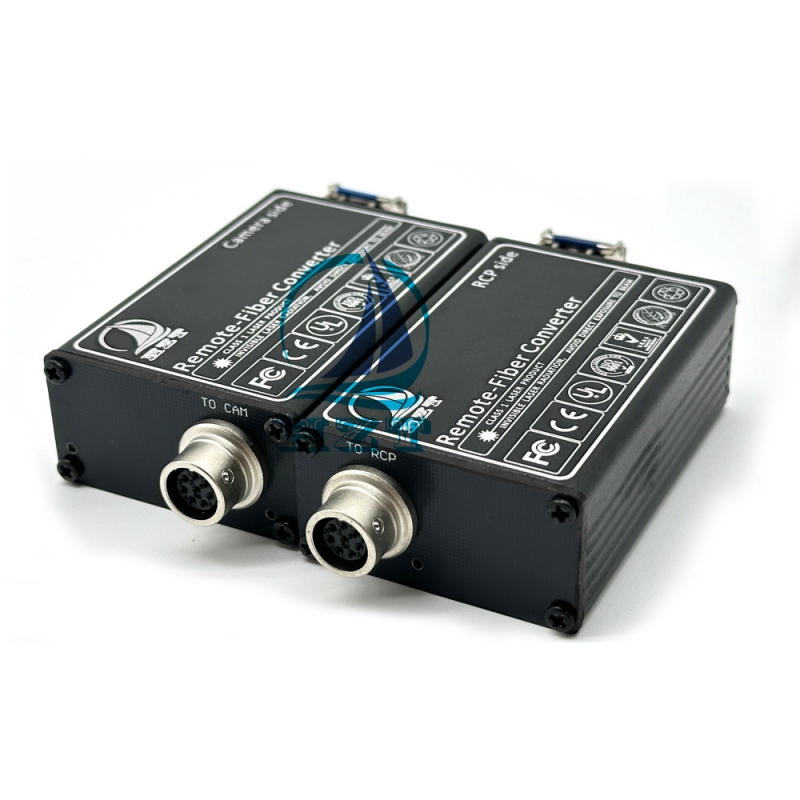

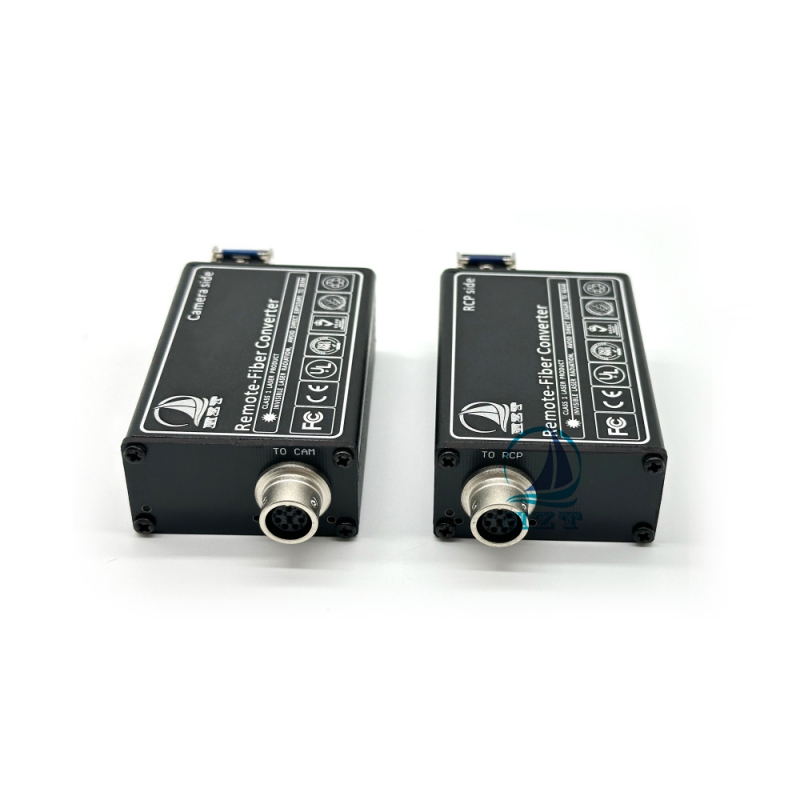

    Sony Remote To Fiber Converter is one idea of sloving the Transmisison distrance probelm throught Optical Fiber. It can extend the Sony Remote Signal to max 20KM over a Single or Dual LC Fiber Cable. Both Transmitter and Receiver have a standard Sony 8-pin Remote Connector, transmitter connects to the Camera throught Sony Remote Cable,  Receiver Connects the Sony RCP through one Sony REMOTE Cable,  between the Transmitter and Receiver uses a LC fiber cable, then the connection is finished.

    This case has a small size and light weight, It is very convenient to carry when event production. Plug and play, simple operation.

    Features.
    ● Support Sony Camera to Sony RCP
    ● Duplex LC or Simplex LC optional
    ● 0-10KM transmisison distance
    ● Small size and light weight, easy carry
    ● Plug and play
    ● Support Customized.
    ● Support to add 3G/12G-SDI Signal, 1000M Ethernet, XLR Audio or more, welcome to ask.
    Technique Parameter
    Fiber Optical
    Wavelength:
    1260~1550nm
    Output Power:
    -5~0dBm
    Optical fiber:
    Single mode Fiber
    Rx sensitivity:
    -18dBm~0 dBm
    Optical connector:
    Single LC or Duplex LC optional
    Distance:
    0~10KM   (SM Default)
    Remote Signal
    Connector :
     Sony Standard 8-pin Remote Connector
    Standard:
    Support Sony Remote protocol
    Number of Transmitter Channel:
    1-ch Sony Remote Singal input,
    Number of Receiver Channel:
    1-ch Sony Remote Singal output,

    General index

    Transmitter power supply:
    DC5V-12V
    Receiver Power supply:
     DC5V-12V
    Power consumption
    <5 w
    Net weight:
    Approax.0.5 KG /pair
    Dimension :
    42*22*10 mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
