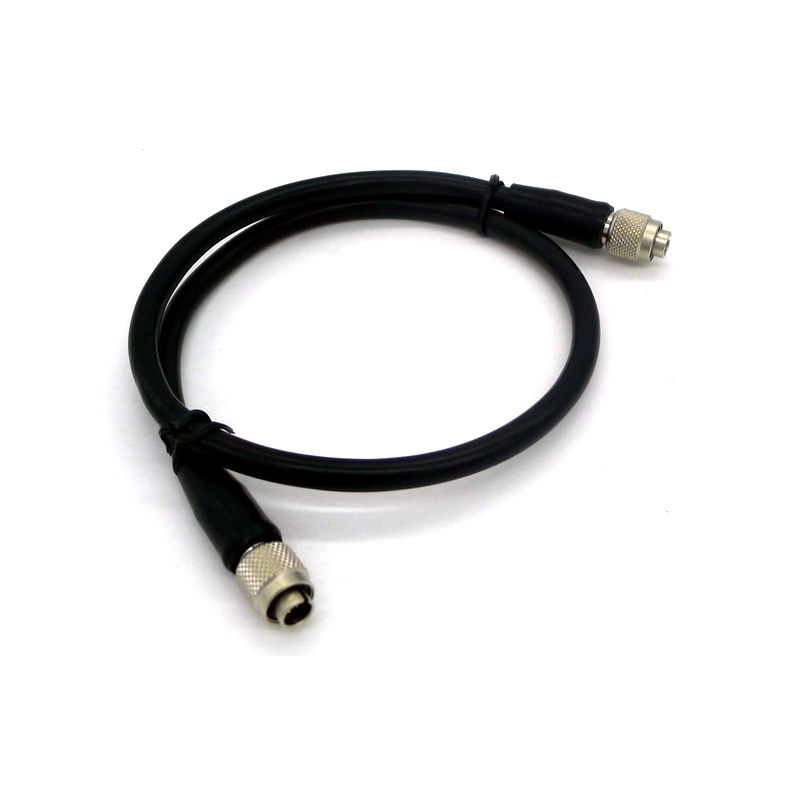

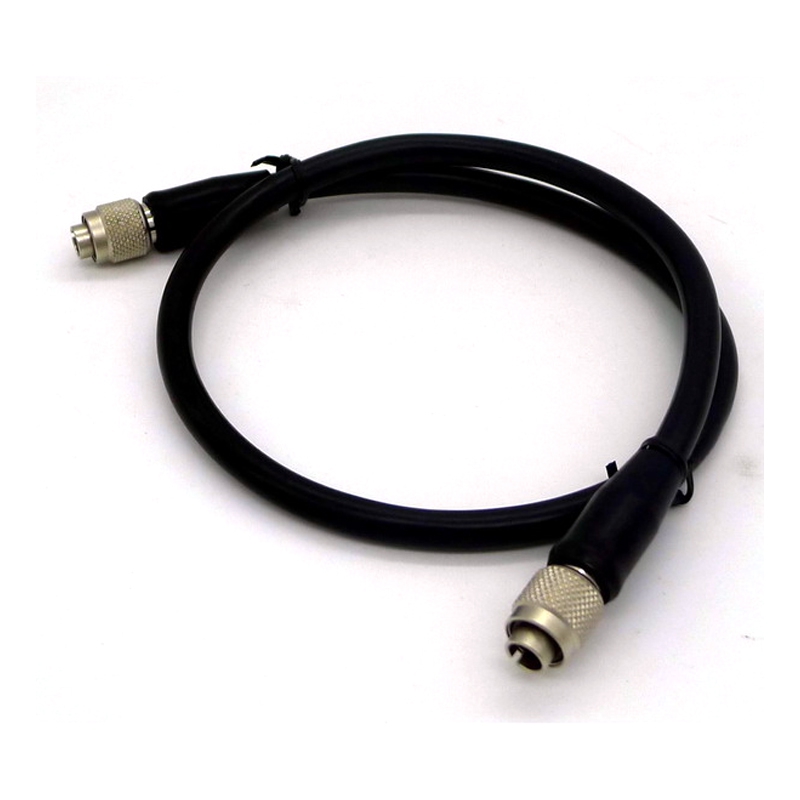

Remote Control Cable for Sony to Panasonic, used for Sony remote interface to Panasonicremote interface, can be supplied with EFP to fiber optic equipment, compatiblewith the Sony and Panasonic remote control.With the Remote Control Cable for Sony to Panasonic, the EFP to Fiber for Sony cameras can also be used for Panasonic cameras andPanasonic RCU.

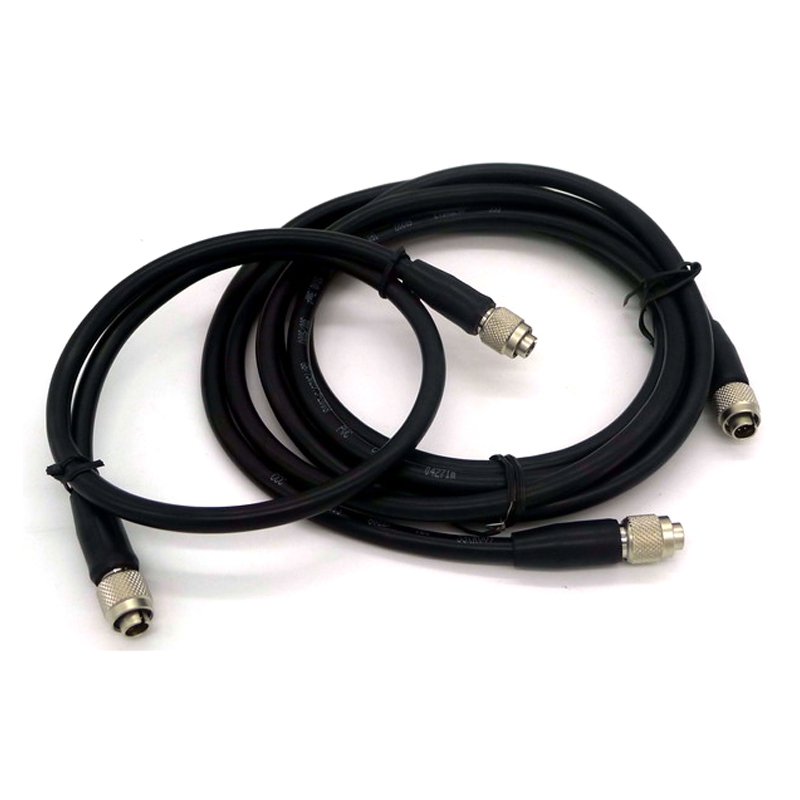

The general length is 0.5 meters, 2 or 3 meters, can also be customer requirements.
Applicable Model:
1) HDCU-1000/1500 CCU
2) CCU-790P/590P CCU
3) RCP-700/701/750/751 Remote Control Panels
4) MSU-900/MSU-950 Master Setup Unit
5) RM-B150, RM-B170 or RM-B750
Pin Definations
1
TX (secret)
2
TX (secret)
3
RX (secret)
4
RX (secret)
5
GND
6
POWER (secret)
7
POWER (secret)
8
NC
