2-CH 3G-SDI+1-CH Return SDI+ Intercom+ Remote+Tally +BB/TC to LEMO Hybrid Sony EFP Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

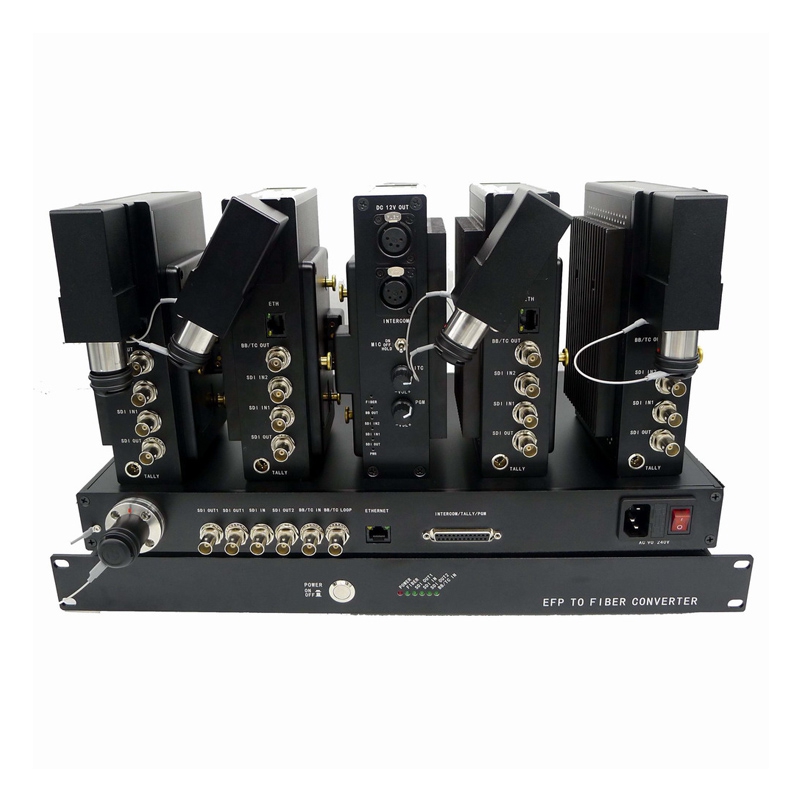

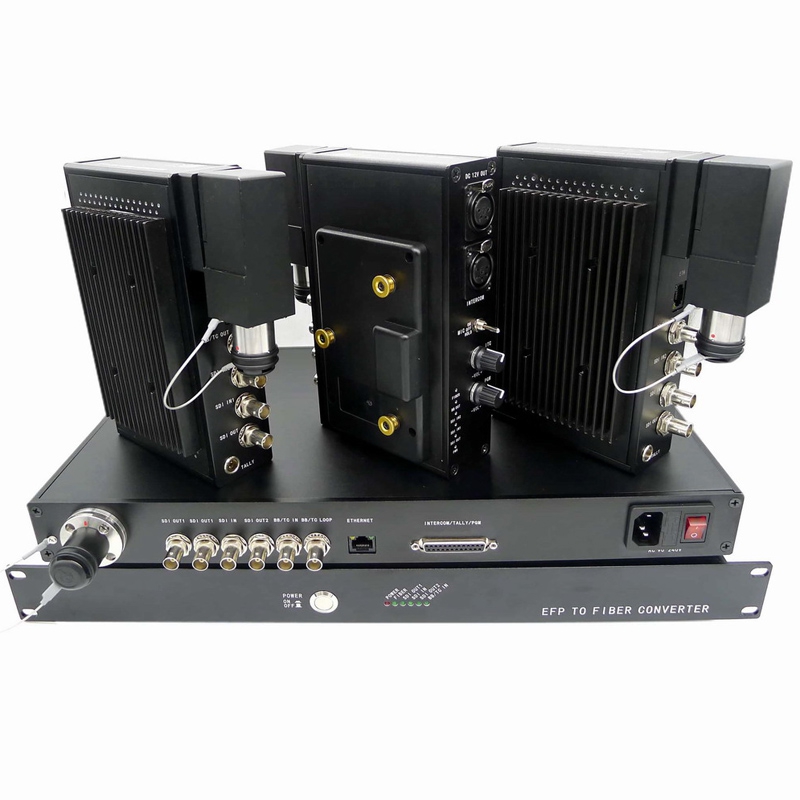

    EFP to fiber for Sony camera includes one Camera Adaptor and one Base Station. This fiber system transports 1-ch 3G/HD-SDI signal from the camera to the Base Station, 1-ch reverse 3G/HD-SDI, Genlock or BB/TC, Remote control for Sony or Panasonic camera(compatible with thecamera control unit RM-B150, RM-B170 or RM-B750, it also can use in Panasonic camera and RCU via Remote Control Cable for Sony to Panasonic), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), 1-ch reverse PGM/IFB audio ,Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
    Features
    ● 1-ch forward and 1-ch reverse SDI
    ● Handle all Pathological patterns
    ● Automatic cable equalization to ensuresignal integrity
    ● 3G/HD/SD SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE259M
    ●  Mic inputs with mute and pre-amps
    ● Headphone with volume up or down
    ●  Remote control (Sony/ Panasonic/JVC/Ikegami/ Datavideo optional)
    ● Tally LED+/- wet output or dry ContactClosure optional
    ● V-mount or A-mount (Anton/Bauer)batteryplate optional
    ● Genlock or TC/BB is available
    ● Reverse PGM/IFB audio optional
    ● Remote camera power supply (14.6V DC up to100 Watts), with insertion detection protection, Lemo SMPTE 304 or NeutrikOpticalCON DUO connector
    ● SMPTE hybrid cable 200+m

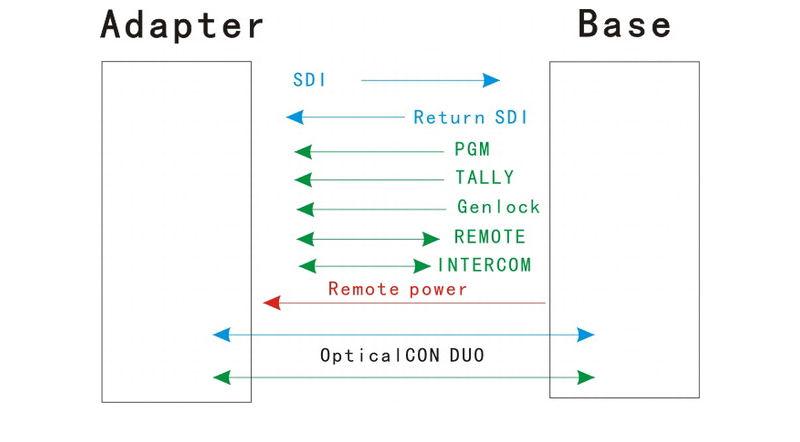

    Connection diagram
    Optical: Wavelength: 1310nm / 1550nm / CWDM
    Output Power: -6~-1dBm
    Rx sensitivity: <-18dBm
    Transmission Distance: Remote power 100W,SMPTE hybrid cable 200+meter
    Optical connector: Lemo SMPTE 304 / Neutrik OpticalCON DUO , Camera end can be rotated 90 degrees
    SDI input /output: Signal format: SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate: 270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization: Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
    SDI interface: BNC 75 Ohm
    SDI Number: Camera Adapter Base Station
    1-CH 3G-SDI Video Input, 1-CH 3G-SDI Video Output 1-CH 3G-SDI Video Input, 2-CH 3G-SDI Video Output
    Genlock /BB/TC: Input/output impedance: BNC 75Ω (unbalance)
    Input/output voltage: 1.0Vp-p
    Differential Gain: < ±1.5%
    Differential Phase: < ±1%
    SNR: >60dB
    Genlock Number: Camera Adapter Base Station
    1-CH Genlock output 1-CH Genlock input, 1-CH Genlock Loop-out
    Intercom: Camera Adapter Base Station:
    Interface: 4-pin XLR(Male) / 5-pin XLR(Female)/ 3.5mm headset jack 3-pin XLR Female/Male: Party line audio for Clearcom / Altairaudio / Granitesound’s Intercom main station ,or Line level balanced audio input and output DB9(Female): Line level unbalanced audio input and output,
    Microphone: Mic inputs with mute and pre-amps None
    Headphone: with volume up or down None
    Tally: Camera Adaptor Base Station
    Interface: 4-pin or 3pin mini XLR DB9(Male)
    Input/Output: Dry Contact Closure or wet LED+/- (Output) Dry Contact Closure or TTL (Input)
    LED Indicator: On: short or LED on Off: open or LED off On: short to GND or TTL low, Off: open or TTL high
    Remote: Camera Adapter Base Station
    Interface: Sony 8-pin interface Sony 8-pin interface
    Data: RS422 /RS232/RS485 RS422 /RS232/RS485
    PGM: Camera Adapter Base Station
    Interface: 4-pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack 3-pin XLR Female: Line level balanced audio input, Or DB25(Female): balanced audio input
    Headphone: with volume up or down None
    Ethernet Work mode: Full duplex/half duplex
    Data Rate: 10/100/1000Mbps(AUTO)
    connection terminal: RJ45
    Physical: Camera  Adaptor Base Station
    Input power: DC 11~19V AC90~240V
    Power consumption: <12W <12W
    Net weight: 1kg 3kg
    Appearance size: 188mm*116mm*45mm Standard 1U Rack Chassis
    Work Temp: -25°C to 55°C
    Storage Temp: -40°C to 85°C
    Humidity: 0 ~ 95% (non-condensing)
