Description

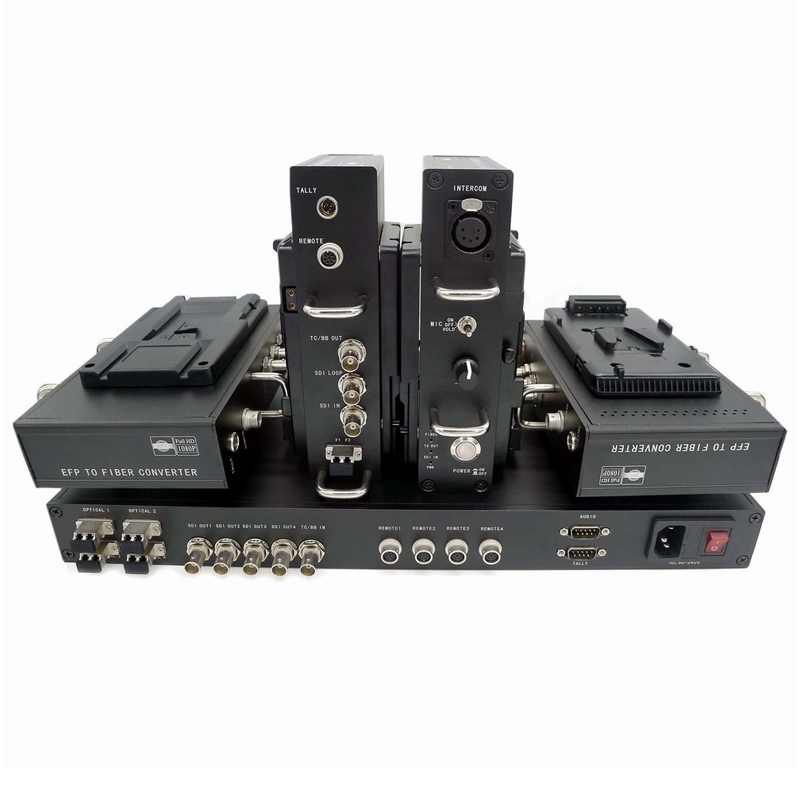

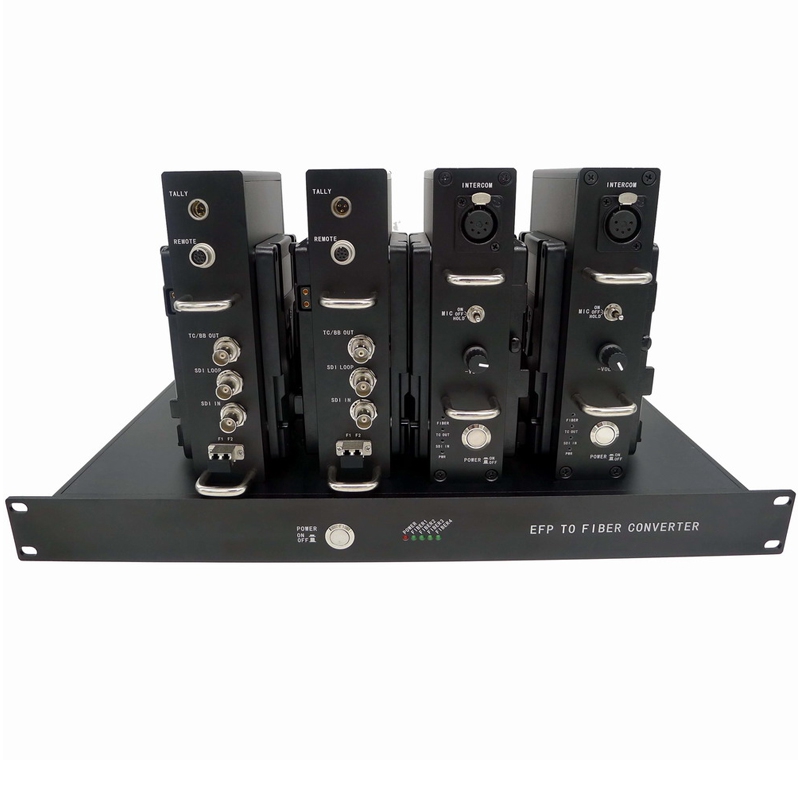

EFP to fiber for Sony camera includes one Camera Adaptor and one Base Station. This fiber system transports 1-ch 3G/HD-SDI signal from the camera to the Base Station, 1-ch reverse 3G/HD-SDI, Genlock or BB/TC, Remote control for Sony or Panasonic camera(compatible with thecamera control unit RM-B150, RM-B170 or RM-B750, it also can use in Panasonic camera and RCU via Remote Control Cable for Sony to Panasonic), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), 1-ch reverse PGM/IFB audio ,Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features
● 1-ch forward
● Handle all Pathological patterns
● Automatic cable equalization to ensuresignal integrity
● 3G/HD/SD SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE259M
● Mic inputs with mute and pre-amps
● Headphone with volume up or down
● Remote control (Sony/ Panasonic/JVC/Ikegami/ Datavideo optional)
● Tally LED+/- wet output or dry ContactClosure optional
● V-mount or A-mount (Anton/Bauer)batteryplate optional
● Genlock or TC/BB is available
● Reverse PGM/IFB audio optional

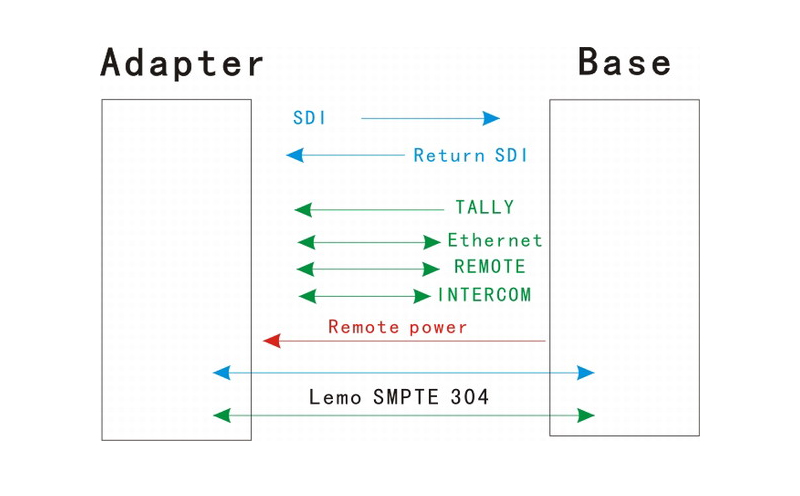

Connection diagram
