1. Product Overview

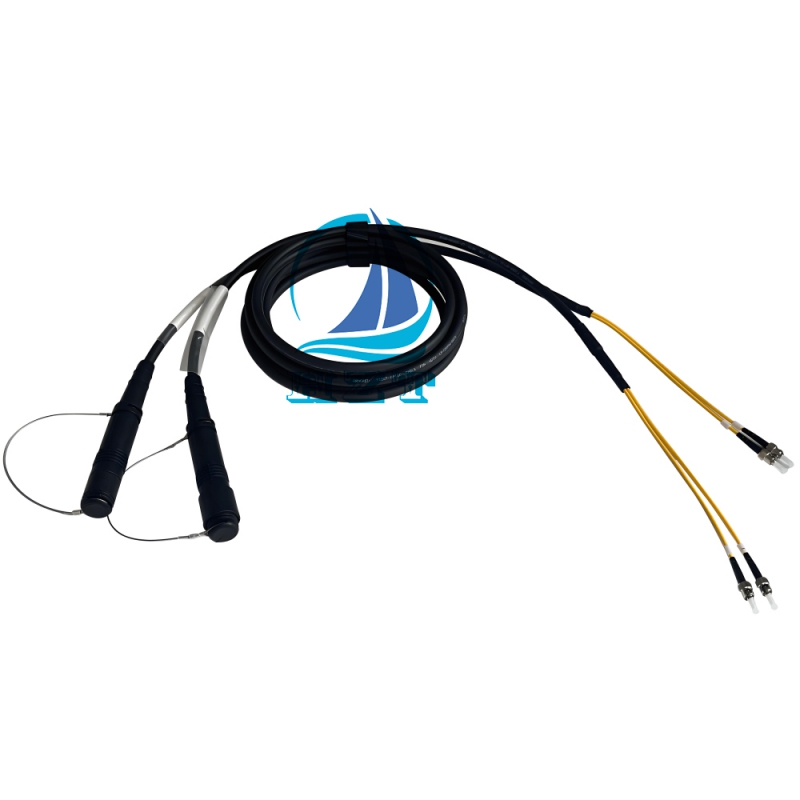

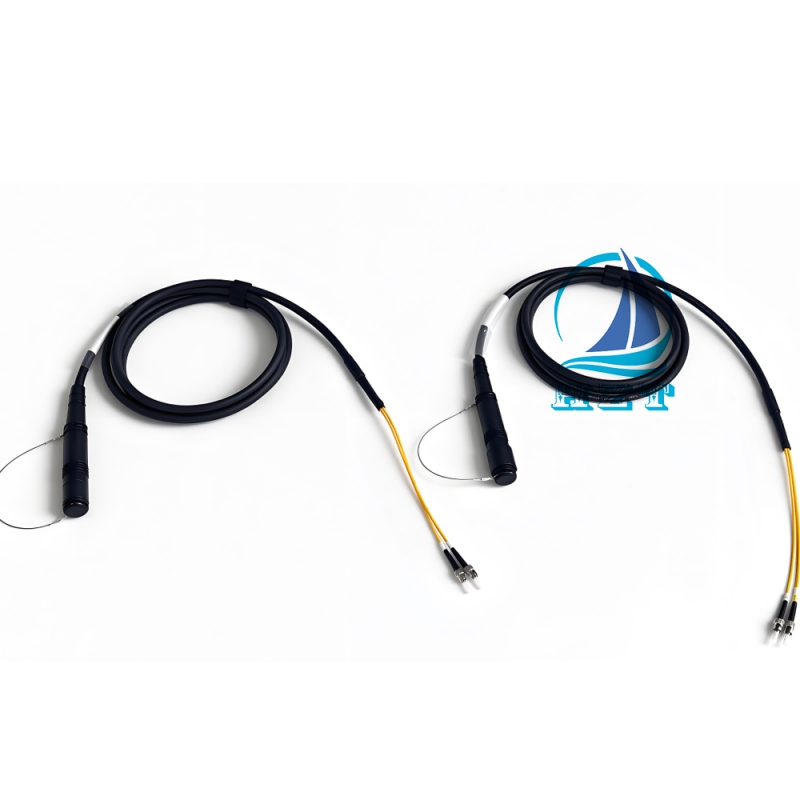

This SMPTE 311M broadcast camera composite breakout cable features one end terminated with LEMO 3K.93C (FUW) SMPTE hybrid connector, and the other end breakout with 2-core single-mode fiber terminated with ST/UPC fiber connectors. The cable integrates optical fibers and power copper conductors with heavy-duty outer jacket, offering tensile resistance, repeated flexing performance, dust & water resistance and anti-interference capability. It is designed to separate optical signals from SMPTE hybrid camera cables. It extracts fiber signals to connect to optical transceivers and fiber transmission equipment for long-distance transmission of HD/4K video, control and intercom signals. Note: This breakout version only brings out fiber channels; power copper conductors remain inside the LEMO connector side and are not terminated out.
Typical Applications: TV Studios, Gala Events, Sports Broadcasting, OB Vans, Field Video Production.

2. Compliance Standards
● SMPTE 311M: Standard for Hybrid Camera Cable for Television

●  IEC 60793-2: Optical fiber specifications

●  IEC 61753: Fiber optic connector performance standards

●  Telcordia GR-20: General optical fiber reliability specification

●  RoHS / REACH

3. Product Features

1. Fully compliant with SMPTE311M broadcast standard, compatible with mainstream broadcast camera systems

2. Heavy-duty PUR outer jacket with high-strength aramid yarn for repeated dragging and trampling on live event sites

3. LEMO SMPTE circular connector, dust cap with tether included to avoid losing caps on site

4. ST dual fiber pigtails with numbered labels for fast channel identification and on-site commissioning

5. Integrated long strain relief boot to prevent fracture at connector root for extended service life

6. LSZH breakout pigtails for safety inside studios

7. 100% optical performance tested before shipment; test report available optionally

8. Customization available: Change connector type (LC/SC/FC), adjust cable length, custom marking & label printing

3. Compliance Standards

●  SMPTE 311M: Standard for Hybrid Camera Cable for Television

●  IEC 60793-2: Optical fiber specifications

●  IEC 61753: Fiber optic connector performance standards

●  Telcordia GR-20: General optical fiber reliability specification

1. Mechanical & Construction Specifications

1.1 Connector Details

1. Main Camera-side Connector: LEMO 3K.93C FUW (SMPTE 311M)
   • Core: 2 single-mode fibers + multiple power / control copper conductors
   • Housing: Nickel-plated brass, dust and water resistant
   • Sealing Rating: IP65 (fully locked position)
   • Strain relief: Extended rubber boot for anti-bend protection
   • Accessories: Dust protection cap with stainless steel lanyard (included as standard)
   • Mating Cycles: ≥1000 times
2. Breakout Fiber Ends: ST/UPC Fiber Connectors, 2 Cores
   • End Face: UPC Polish
   • Ferrule: Zirconia ceramic ferrule
   • Identification: Serial label #1, #2 for easy channel identification
   • Mating Cycles: ≥1000 times

1.2 Cable Construction

1. Main Heavy-Duty SMPTE Composite Cable
   • Cable Type: SMPTE 311M Hybrid Composite Cable
   • Outer Jacket: Black TPU/PUR, oil-resistant, abrasion-resistant, flexible at low temperature
   • Internal Structure: 2-core single-mode fiber + multi-strand power/signal copper conductors, aramid yarn tensile strength member
   • Minimum Bend Radius: Static ≥8×OD; Dynamic ≥12×OD
   • Tensile Load: Max short-term tension 800N
2. Breakout Pigtails (Yellow Fiber Pigtails)
   • Fiber Type: G.652D Single Mode Fiber
   • Pigtail Jacket: LSZH low smoke zero halogen yellow jacket
   • Transition Protection: Heat shrink tubing reinforcement at breakout point to prevent fiber breakage

1.3 Cable Length (Customizable)

Standard options: 3m / 5m /10m
Custom length available upon customer request

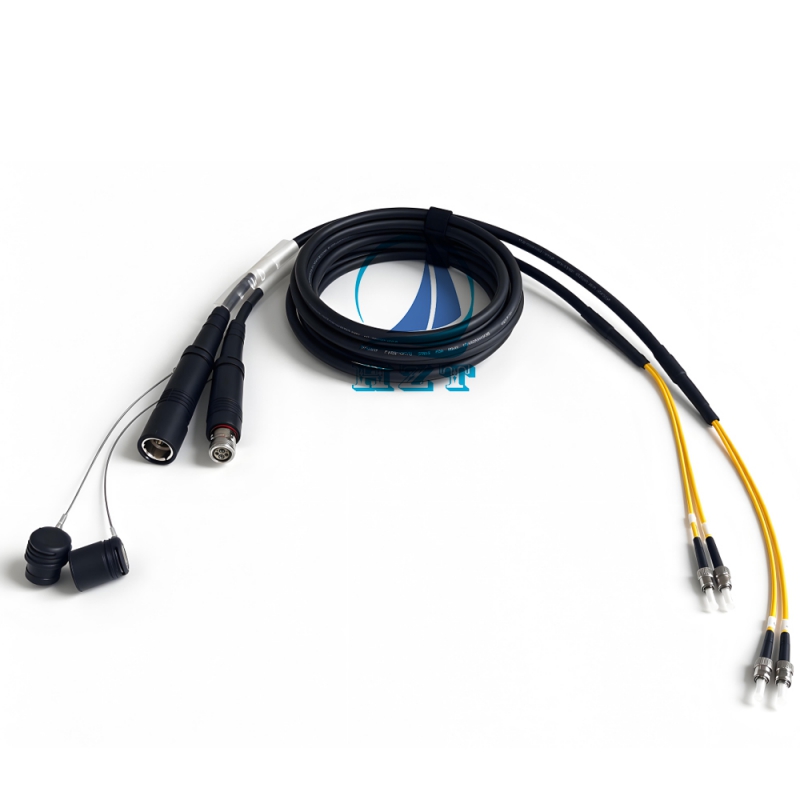

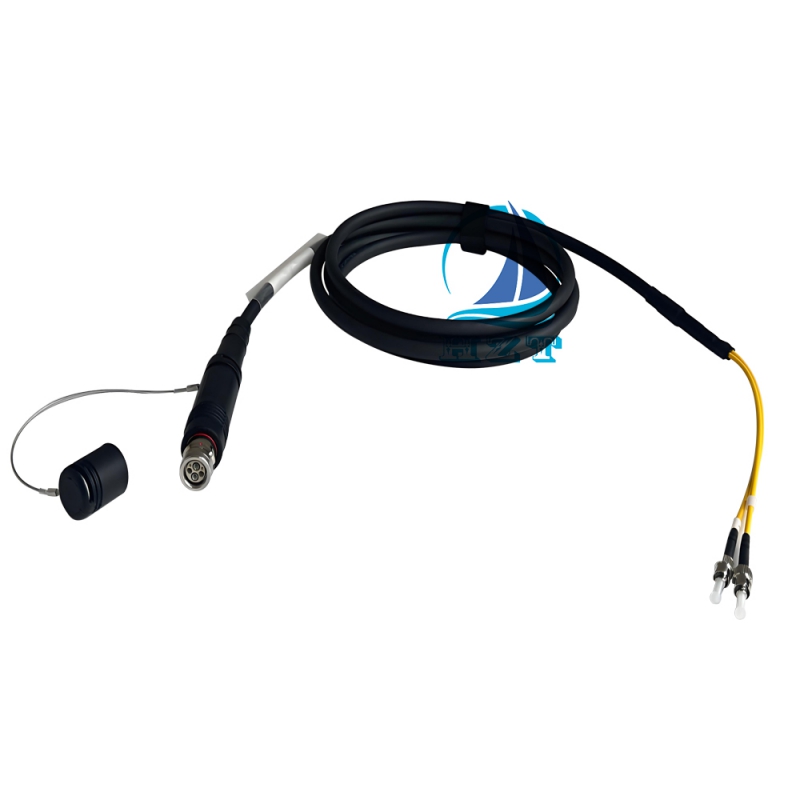

Sample shown in picture: 2.5m

2. Optical Performance (G.652D SMF @1310nm /1550nm)

5. Electrical Specifications (Copper embedded in main cable, fiber-only breakout model)

The cable is integrated with power copper conductors to supply power for broadcast cameras. This breakout cable only extracts optical fiber signal channels, and power copper wires stay inside LEMO connector and are not breakout.

• Rated Voltage: AC 600V
• DC Resistance of conductors: Compliant with SMPTE311M
• Shielding: Full shielding structure to resist EMI/RFI interference, suitable for field environments with complex electromagnetic noise

6. Environmental Specifications

7. Reliability Test Items (Sampling Inspection before delivery)

1. Optical test: 100% Insertion Loss & Return Loss inspection
2. Mechanical test: Connector pull test, flex cycling test, torsion test
3. Environmental test: Temperature cycling, damp heat aging
4. Water proof test: IP65 spray test on connector

10. Ordering Code Rule

HZT-SMPTE-BO-ST02-[Length]
Example: HZT-SMPTE-BO-ST02-5M Meaning: SMPTE Breakout Cable, LEMO to ST dual fiber, 5 meters length

11. Important Notes

1. Do not touch fiber end face directly. Keep dust cap covered when unused, dust contamination will degrade optical performance.
2. Do not bend cable below minimum bend radius; avoid sharp objects cutting outer jacket.
3. Align locating notch and twist to lock when mating LEMO connector. Do NOT force plug/unplug.
4. This breakout cable only extracts fiber signals without power breakout. For version with power breakout, please refer to separate model.
