SMPTE 311M FUW-PUW Hybrid Camera Fiber Cable 100 Meter With Drum

  • Description
  • Technical data
  • Make an inquiry
    1.Description

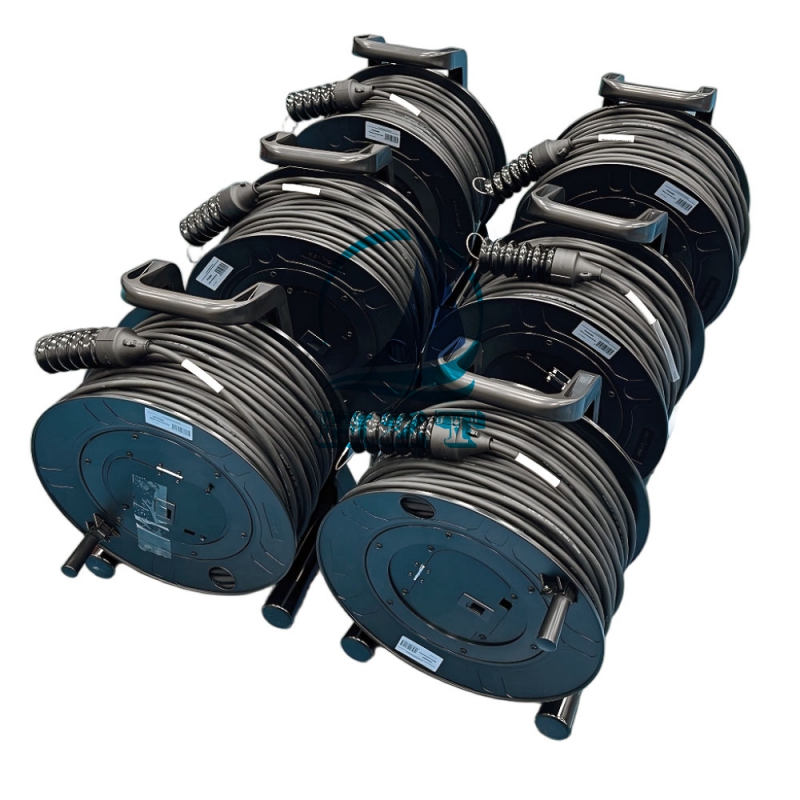

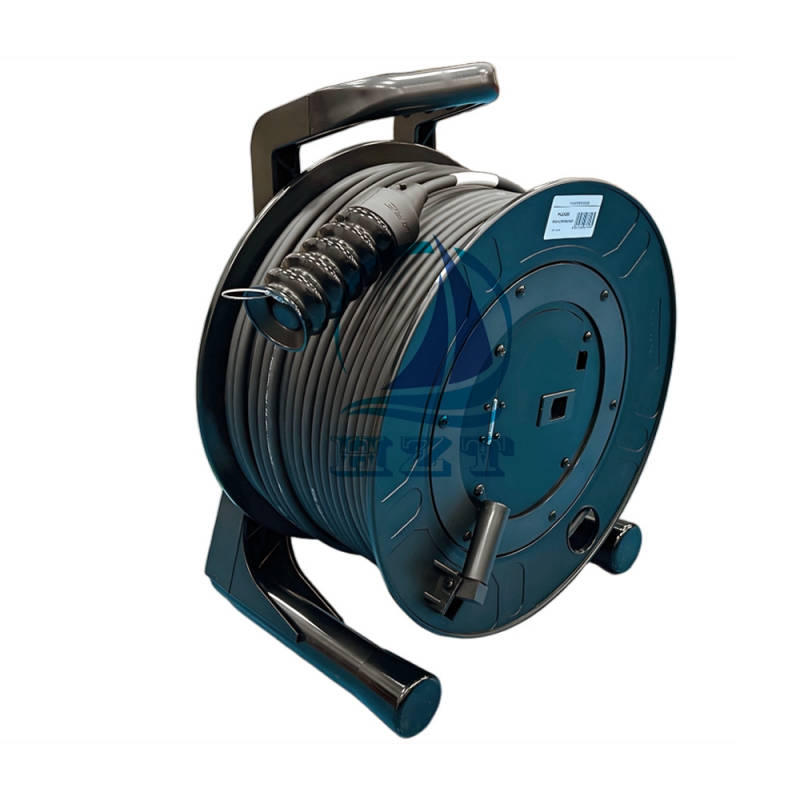

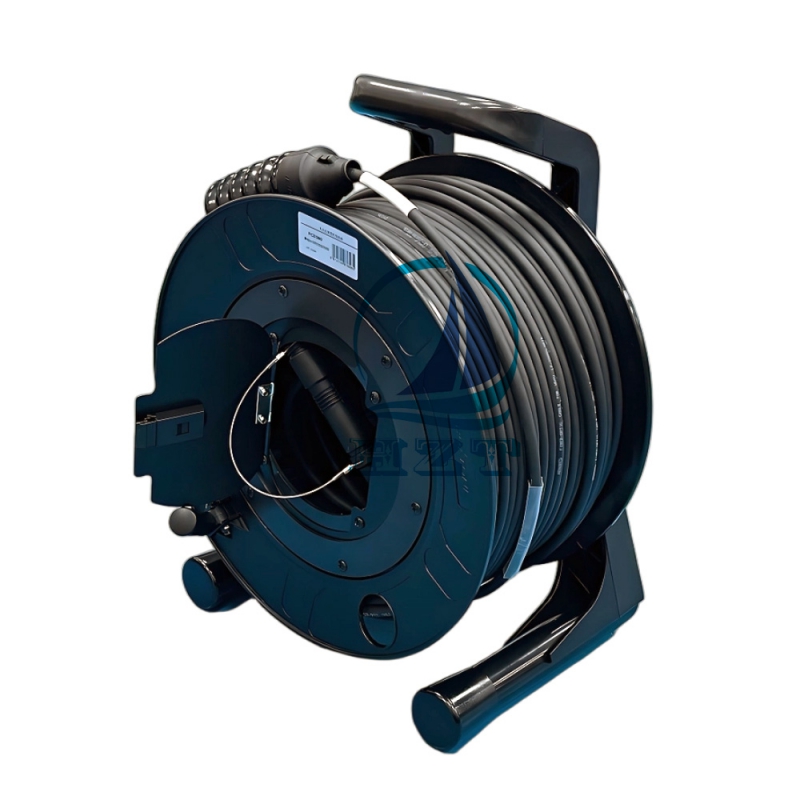

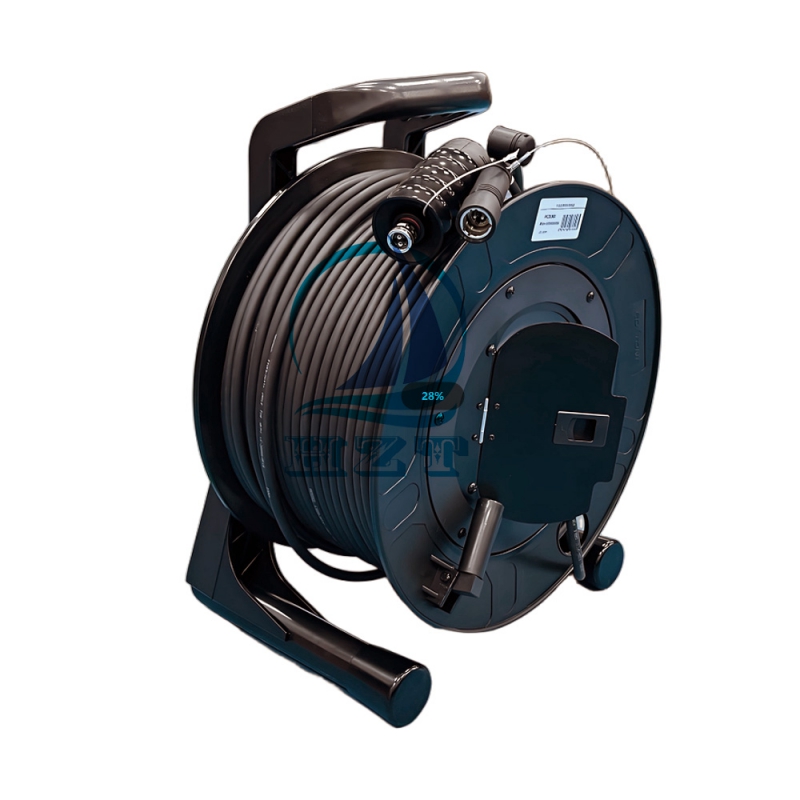

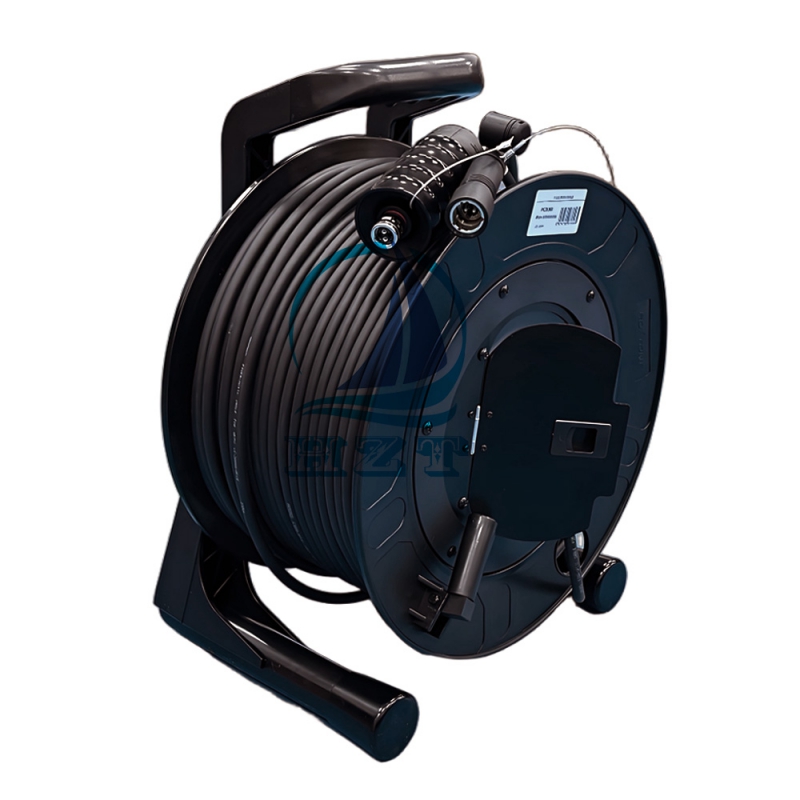

    This product is a professional-grade SMPTE 311M-compliant hybrid camera fiber optic cable assembly, conveniently supplied on a durable, high-strength plastic cable drum. The assembly integrates the standardized FUW-PUW (Fiber Utility Wedge - Power Utility Wedge) hybrid connector system, designed for broadcast camera applications.The core of this solution is the SMPTE 311M cable itself, engineered to transmit high-bandwidth video/audio/data signals and provide camera power and control over a single, lightweight fiber. It ensures reliable performance for live production, outside broadcasting (OB), and studio environments.A key feature is its packaging. The cable is neatly wound onto a robust, high-strength plastic cable drum with a maximum capacity of 100 meters. This drum is specifically designed for easy transportation, deployment, and storage in demanding field conditions. It protects the cable from tangles and damage while allowing for smooth pay-out and reel-in during setup and wrap-up.This cable assembly is the ideal solution for broadcast engineers and technicians requiring a reliable, pre-tested, and portable fiber link for connecting cameras to base stations up to 100 meters away.
    2. Key Features & Benefits
    ● Full SMPTE 311M Compliance: Guaranteed interoperability with standard broadcast equipment, including camera control units (CCUs), camera adapters, and fiber termination panels. Ensures flawless signal integrity and power delivery.
    ●  Hybrid Design (FUW-PUW): Combines:
         ★Single-Mode Optical Fibers: For transmitting uncompressed HD, 4K, 8K video, audio, intercom, and camera control data over long distances with             zero loss of quality.
          ★Electrical Conductors: Delays remote power (typically 24-30V DC) from the CCU to the camera, eliminating the need for local power at the camera           position.
    ●  Reinforced Protective Cover: The cable is sheathed in a rugged, flexible protective jacket designed to resist abrasion, crushing, moisture, oils, and common wear-and-tear. This significantly enhances its lifespan on busy sets, in outdoor broadcasts, and when being frequently coiled and uncoiled.
    ●  Ruggedized Reliability: Featuring a robust construction with a protective jacket, this cable is built for enduring performance, ensuring critical power and signal remain stable under the rigors of daily broadcast use.
    ●  Reliable Performance: Engineered for minimal signal attenuation and stable power delivery, ensuring a rock-solid connection without dropouts, even in electrically noisy environments.
    3. Applications
    This cable is the industry-standard solution for connecting:
    ●  Broadcast Camera Systems (e.g., ARRI, Sony, Blackmagic, Grass Valley, Canon)
    ●  Camera Control Units (CCUs) to camera heads
    ●  Systems within Outside Broadcast (OB) Vans
    ●  Studio Production setups
    ●  Live Event Production (sports, concerts, ceremonies)
    4.Connection Diagram
    5. Why Choose Our Cable?
    This cable is not just a link; it is the lifeline of your broadcast camera system. By choosing our SMPTE 311M compliant cable, you invest in a product that delivers unparalleled reliability, protects your signal integrity, and withstands the harsh conditions of professional video production. Its durable protective cover ensures reduced downtime and lower total cost of ownership, making it the intelligent choice for mission-critical applications.
    Specification
    Items
    Parameter
    Connector nomination:
    FMW 3K.93C FUW TO PUW ( FXW-EDW Optional)
    Standards:
    SMPTE 311M
    Fiber type:
    Singlemode G657A1 Fiber
    Power line Diameter:
    2 * 1.0mm2
    Reinforcer:
    Kevlar
    Cable Diameter:
    9.2+0.2 mm
    Color
    Black
    Outer Sheath Material
    PE
    Attenuation:
                                   ≤0.4dB/km(1310nm)
    ≤0.3dB/km(1550nm)
    Weight:
    Approax. 5 KG / KM
    Tensile Strength:
    Short Term
    700N/10cm
    Long term
    350N/10cm
    Crush resistance:

    Short term
    1000N
    Long term
    500N
    Bending radius:

    Static
    10D
    Dynamic
    20D
    Operating temperature:
    -20°C~+70°C
    Storage temperature:
    -20°C~+70°C
    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
