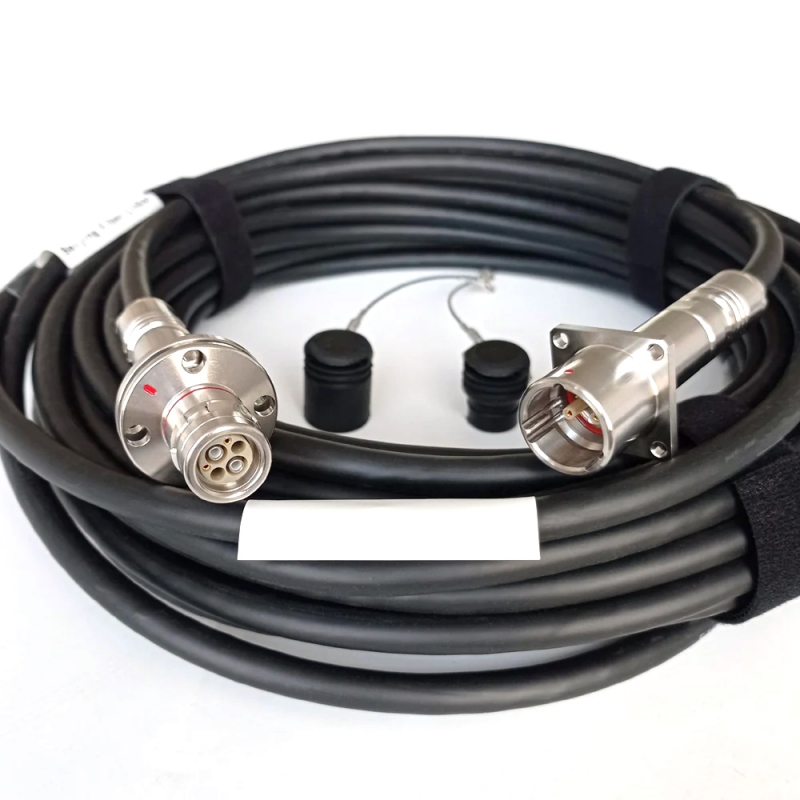

Connector nomination
|

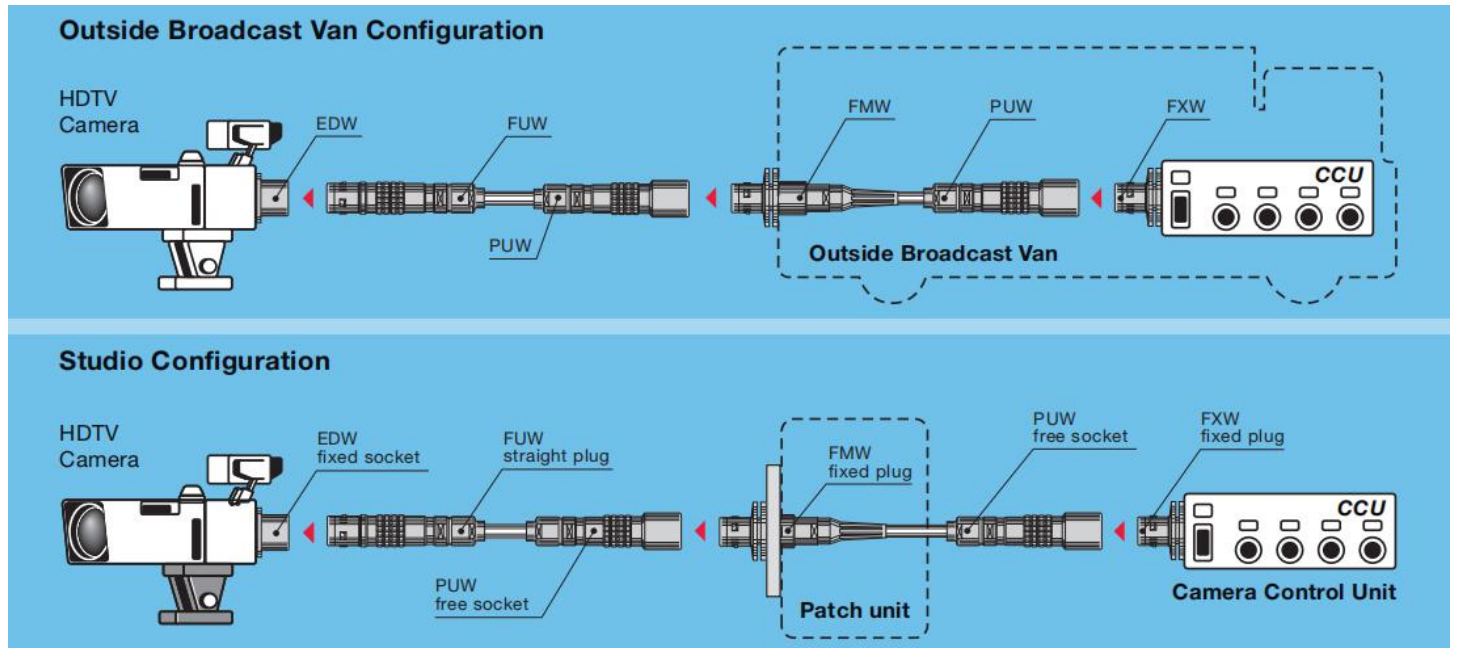

FMW 3K.93C FMW TO PBW ( FXW-EDW Optional)
|
|
Standards
|
SMPTE 311M
|
|
Fiber type:
|
Singlemode G657A1 Fiber
|
|
Power line Diameter:
|
2 * 1.0MM2
|
|
Reinforcer:
|
Kevlar
|
|
Cable Diameter
|
9.2+0.2 mm
|
|
Color
|
Black
|
|
Outer Sheath Material
|
PE
|
|
Attenuation :
|
≤0.4dB/km(1310nm)
≤0.3dB/km(1550nm)
|
|
Weight:
|
Approax. 5 KG / KM
|
|
Tensile Strength:
|
Short Term
|
700N/10cm
|
|
Long term
|
350N/10cm
|
|
Crush resistance
|
Short term
|
1000N
|
|
Long term
|
500N
|
|
Bending radius
|
Static
|
10D
|
|
Dynamic
|
20D
|
|
Operating temperature:
|
-40°C~+85°C
|
|
Storage temperature:
|
-40°C~+85°C
|
