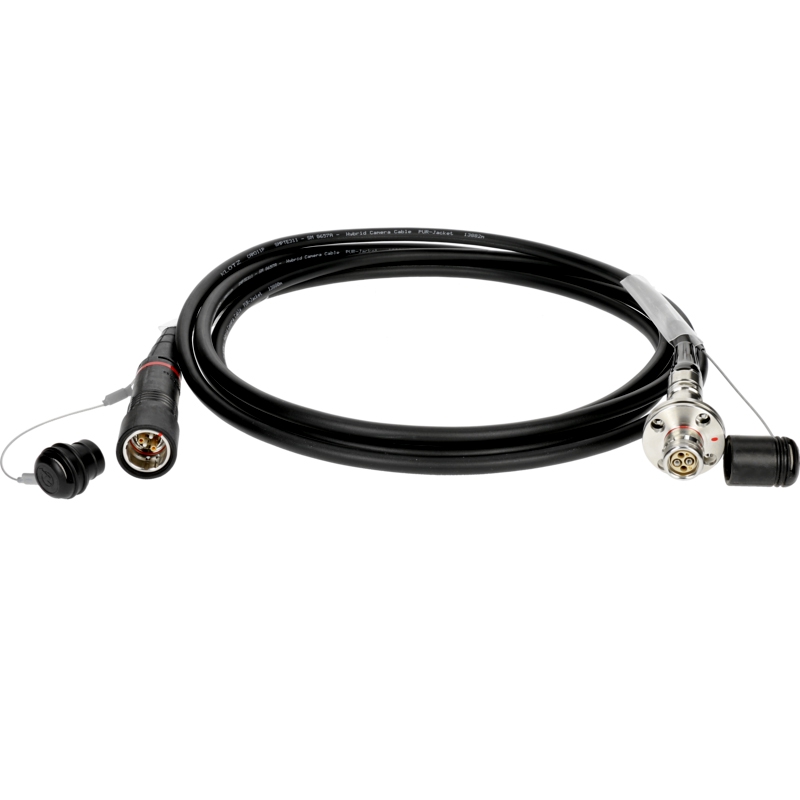

SMPTE311M 3K93C Hybrid Camera Optical Cable with FMW-PUW SMPTE Connector

  • Description
  • Technical data
  • Make an inquiry
    Description :
    HZT Technology’S SMPTE Hybrid FMW/PUW LEMO Outdoor Fiber Optical Camera Cable are used for connecting Professional HD cameras to the CCU. Cables are assembled using Lemo 3K93C connectors which conform to SMPTE 304m and HZT technology self-production cables conforming to SMPTE 311m. This cables, which are generically referred to as SMPTE311M, incorporate two singlemode fibres, two power conductors and two low-voltage conductors, laid up around a stainless-steel strength member, with a copper braid plus a rugged, abrasion-resistant jacket.

    All assemblies are manufactured in house and undergo a stringent quality control process. Every cable is measured for insertion and return loss and consistently performs above industry standards.

    SMPTE311Hybrid FMW/PUW LEMO Outdoor Fiber Optical Camera Cable are available in sizes from 1m to 500m, lengths 100m and above suggested to use extra metal reel to package or spooled into one Free-charge wooden drum provided by HZT Technology.

    Feature:
    ● SMPTE 311M and 304M Compliant
    ● SMPTE Standard HDTV Broadcast Cable
    ● Cable-mount, camera-to-CCU connection cable
    ● Integrated power, control, and optical lines for comprehensive connectivity
    ● Round flange FMW LEMO connector and round socket PUW LEMO connector
    ● Harsh environment outdoor cable assembly
    ● Every cable undergoes a stringent quality control process
    ● Tested for < -55dB return loss

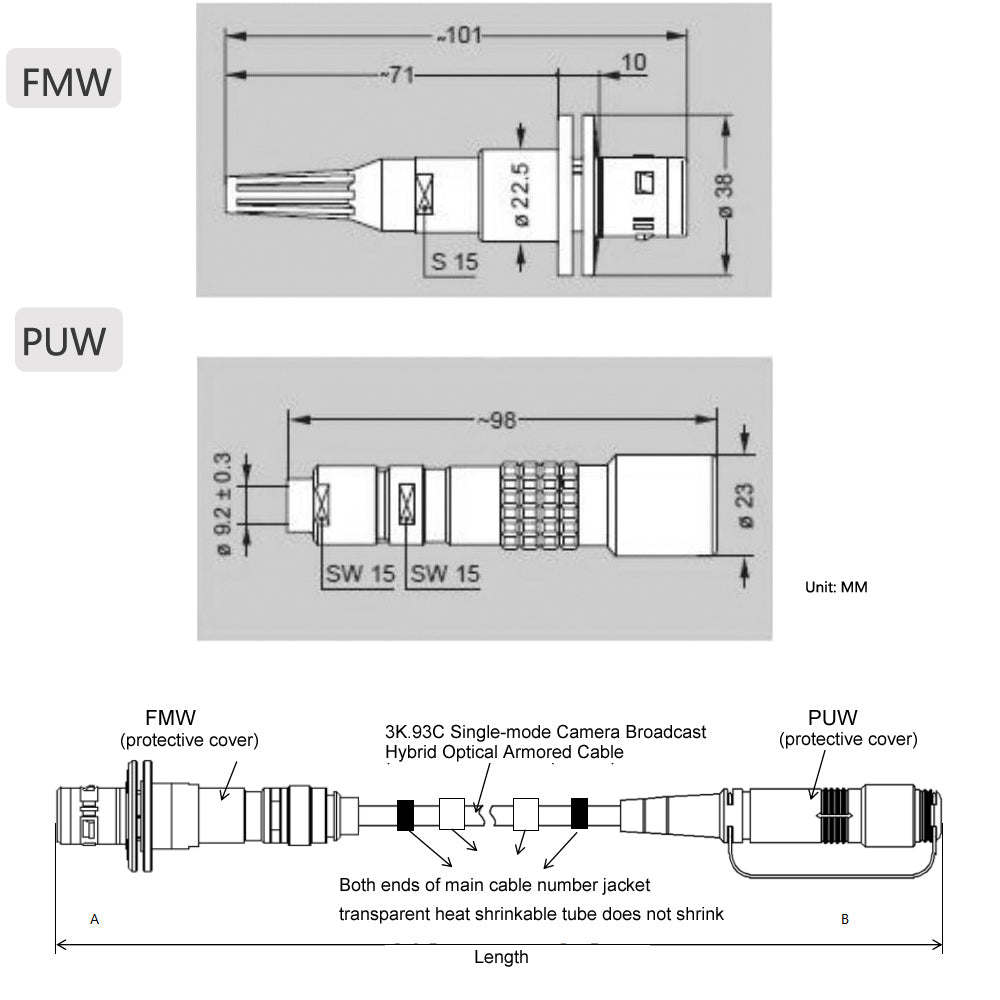

    Connector Diagram

      Specification
    Items
    Parameter
    Connector nomination:
    FMW 3K.93C FUW TO PUW ( FXW-EDW Optional)
    Standards:
    SMPTE 311M
    Fiber type:
    Singlemode G657A1 Fiber
    Power line Diameter:
    2 * 1.0mm2
    Reinforcer:
    Kevlar
    Cable Diameter:
    9.2+0.2 mm
    Color
    Black
    Outer Sheath Material
    PE
    Attenuation:
    ≤0.4dB/km(1310nm)
    ≤0.3dB/km(1550nm)
    Weight:
    Approax. 5 KG / KM
    Tensile Strength:
    Short Term
    700N/10cm
    Long term
    350N/10cm
    Crush resistance:

    Short term
    1000N
    Long term
    500N
    Bending radius:

    Static
    10D
    Dynamic
    20D
    Operating temperature:
    -20°C~+70°C
    Storage temperature:
    -20°C~+70°C
    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
