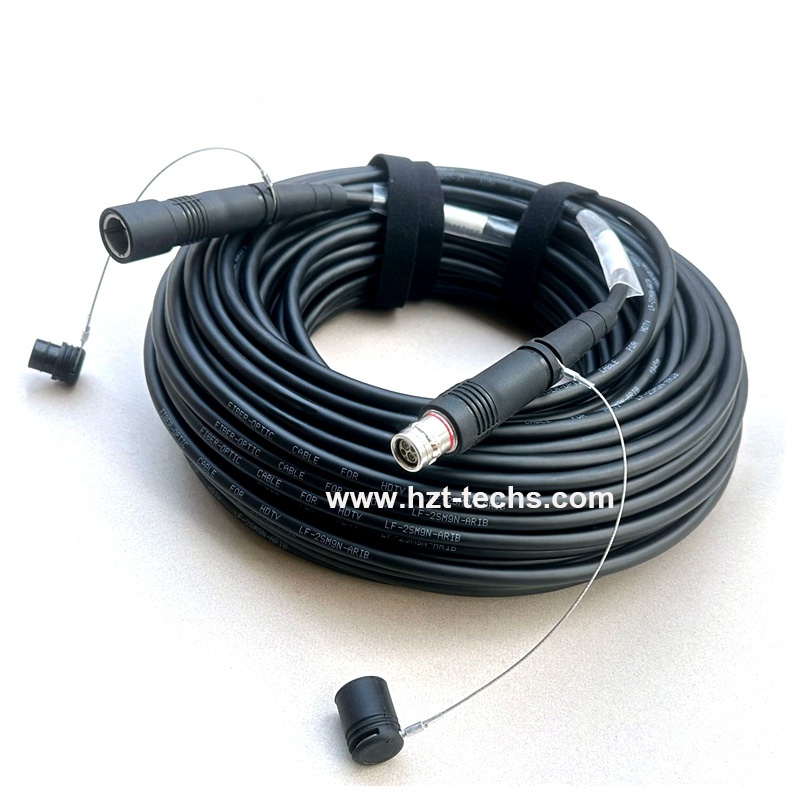

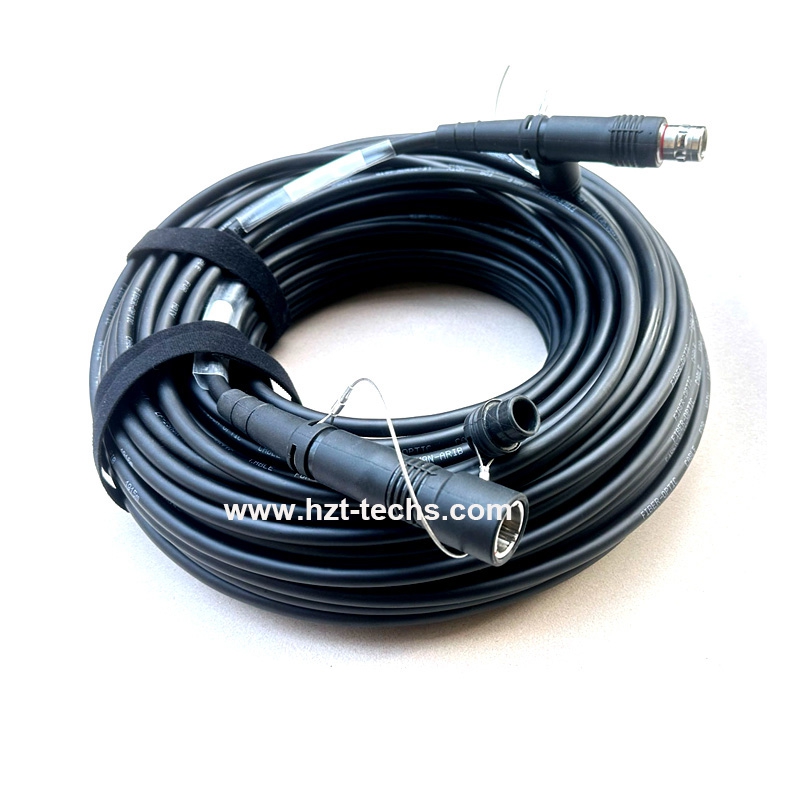

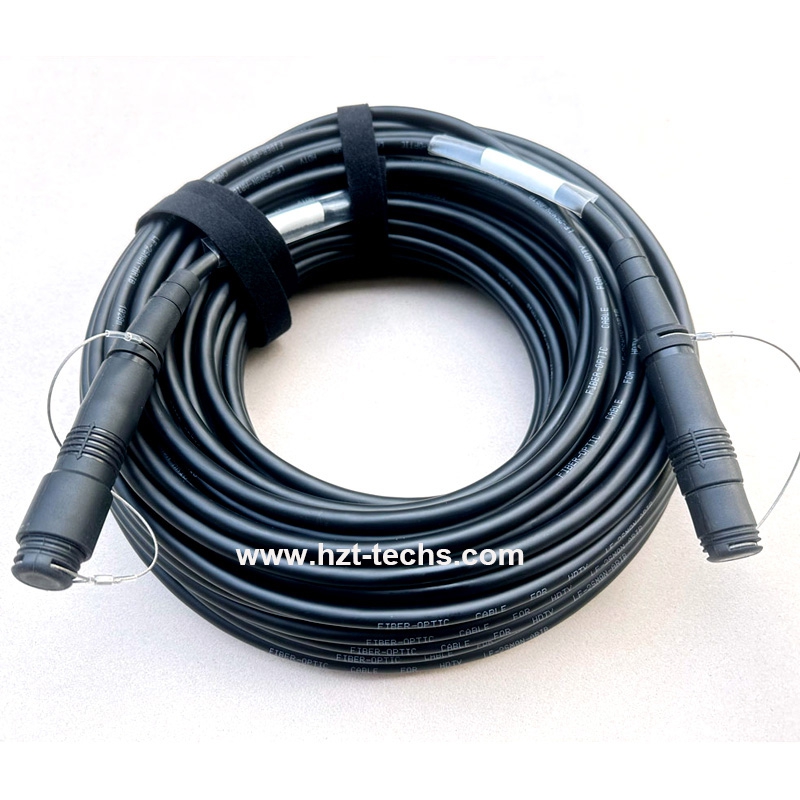

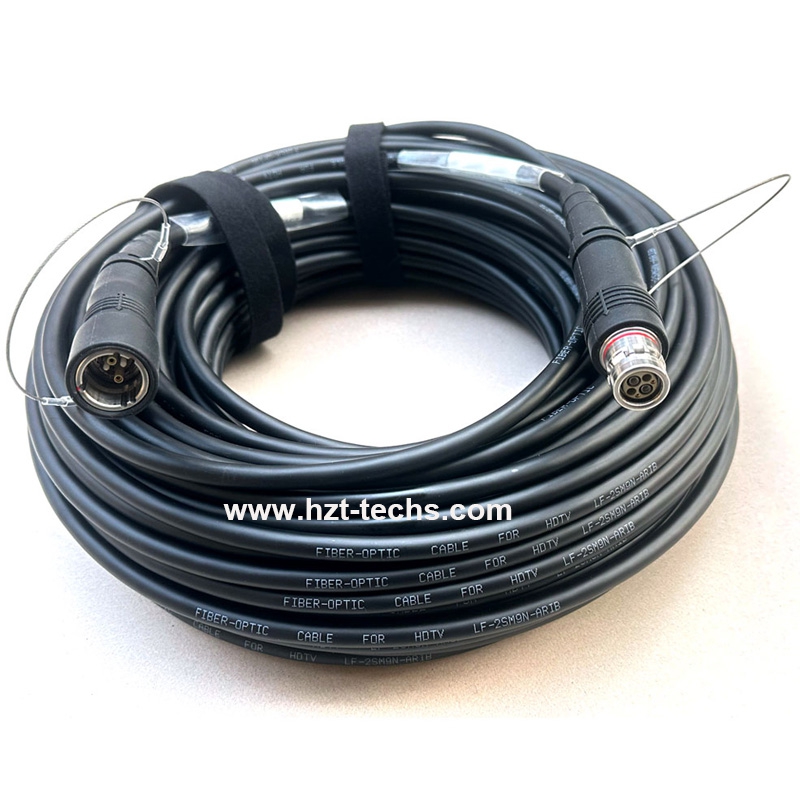

SMPTE311M 3K93C Hybrid Camera Optical Cable with FUW-PUW SMPTE Connector

  • Description
  • Technical data
  • Make an inquiry
    Description:
    HZT Technology specializes in the production of high-definition camera hybrid Fiber cable assemblies, it can be compatible with the Swiss LEMO original 3K.93C connector and CANARE connector.
    HZT’s hybrid fiber optical cable consists of 4 power cables (20AWG) for HDTV cameras, 2 signal control cables (24AWG) and 2*single mode fiber for video and audio transmission, the strength member of  composite cable  uses  a 1.8mm high-strength steel wire, the whole cable adopts of braided net as shielding layer, it widely used for  connecting different cameras for live broadcast of outdoor operations, and It can also be used in control room fixtures connected to studio cameras.
    Features
    ● The stainless steel housing is suitable for use in a variety of harsh environments and can withstand 20,000 insertions
    ● Can withstand 1.5 meters deep immersion after connection (protection level up to IP67)
    ● Fiber Ferrule cleaning is simple and convenient
    ● High and low temperature resistance, operating temperature range -40℃~80℃
    ● Simultaneous SMPTE, ARIB and EBU standard speed connection of self-locking system, insertion loss ≤0.5dB
    ● 2 strands singlemode fiber, 2 strands power-line and 2 strands signals as  configuration
    ● Mainly used in outdoor live broadcast applications, stadium event broadcast applications, studio applications, concerts and so on
    Application
    ● 3G/HD-SDI monitor system;
    ● Animals, filming;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    Connection Diagram
      Specification
    Items
    Parameter
    Connector nomination:
    FMW 3K.93C FUW TO PUW( FXW-EDW Optional)
    Standards:
    SMPTE 311M
    Fiber type:
    Singlemode G657A1 Fiber
    Power line Diameter:
    4*0.5mm2 ( 2 * 1.0mm2 Optional)
    Reinforcer:
    Kevlar
    Cable Diameter:
    9.2+0.2 mm
    Color:
    Black
    Outer Sheath Material:
    PE
    Attenuation:
    ≤0.4dB/km(1310nm),  ≤0.3dB/km(1550nm)
    Weight:
    Approax. 12 KG/KM
    Tensile Strength:
    Short Term
    700N/10cm
    Long term
    350N/10cm
    Crush resistance:
    Short term
    1000N
    Long term
    500N
    Bending radius:
    Static
    10D
    Dynamic
    20D
    Operating temperature:
    -40°C~+85°C
    Storage temperature:
    -40°C~+85°C
