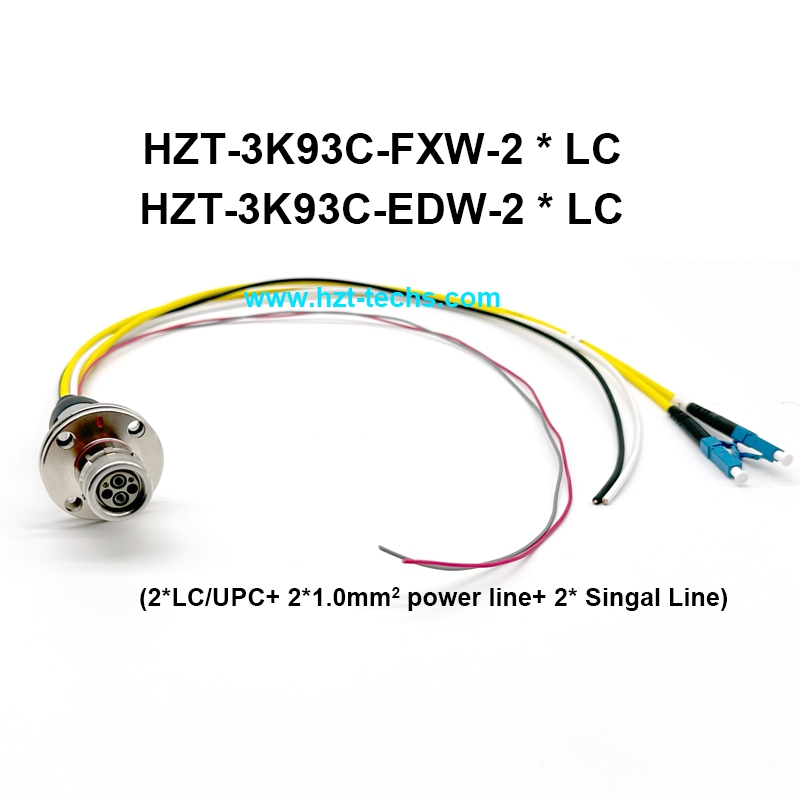

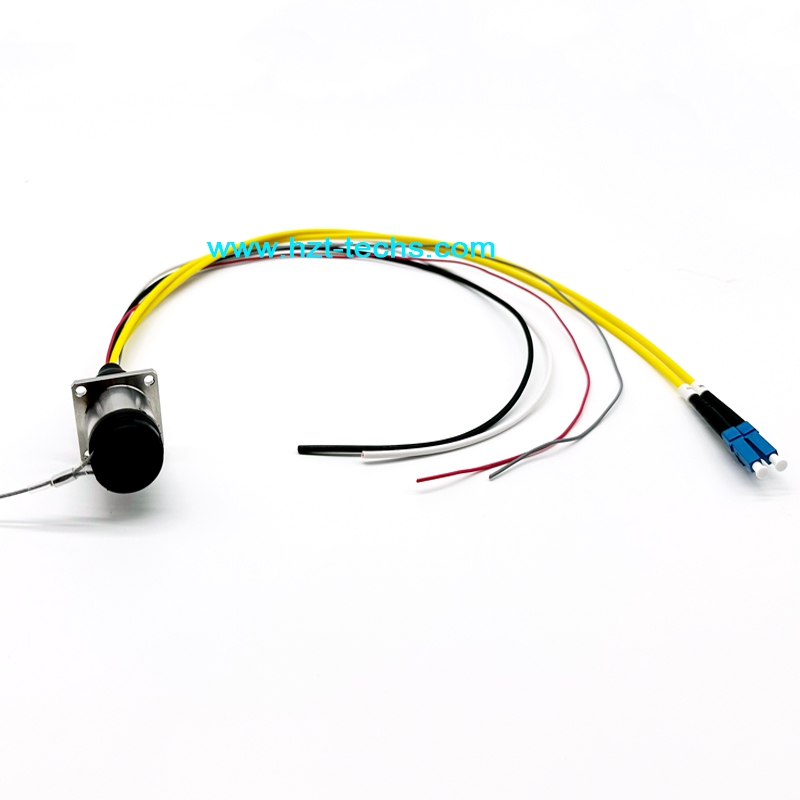

SMPTE311M 3K93C FXW & EDW to LC/UPC Breakout Optic Fiber Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

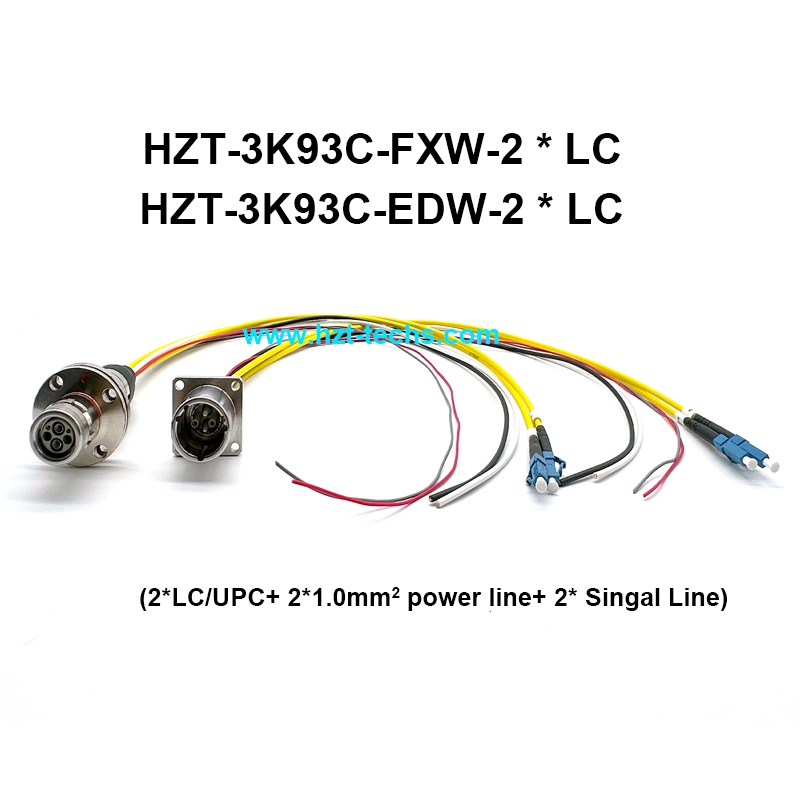

    HZT Technology’s SMPTE311M to Dual LC Hybrid fiber camera breakout cable assembly usually consists of two pcs of pigtail.
    One is FXW to 2*LC +2*1.0mm2 + 2*Signal line
    The other one is EDW to 2*LC +2*1.0mm2 + 2*Signal line.
    It is used in professional video productions for simultaneous transmission of energy, video, audio and control signals and is intended to interconnect Camera Units and Base Stations in conjunction with the Connector Interface Standard.

    HZT Technology SMPTE 311M to Dual LC hybrid fiber breakout camera cables are manufactured from factory polished Lemo 3K stainless steel connectors, UPC connector options of SC, ST, LC for precision optical performance and durability. All cables are made to order and can be produced to customer specified lengths.

    Connectors introduce:
    FXW: Cable plug with cable gland.
    EDW: Cable socket with cable gland.

    Feature:
    ● SMPTE 311M and 304M compliant
    ● LC,SC,ST connector optional.
    ● 2*1.0mm2 power line or 4*0.5mm2 for your choose
    ● Stainless steel assemblies
    ● Rubber dust caps
    ● Electrical assemblies 100% tested for continuity and shorts
    ● Fiber optic assemblies 100% tested for attenuation and back reflection
      Specification
    SMPTE304M Connector Side:
    Connector 1:
    3K.93C FXW (Default)
    Connector 2:
    3K.93C EDW (Default)
    Branch Side:
    Standards :
    Singlemode G657A1 Fiber
    Fiber Connector:
    Dual LC (Default) , SC/UPC, SC/APC, ST optional
    Fiber connector Color:
    Yellow
    Power line Diameter:
    2 * 1.0mm2 or 4 *0.5mm2 optional
    Power Line Color:
    Black and White
    Signal line:
    Singal Line Color:
    Red and Grey
    Weight:
    Approax. 0.15 KG / pcs
    Operating temperature:
    -20°C~+70°C
    Storage temperature:
    -20°C~+70°C
    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
