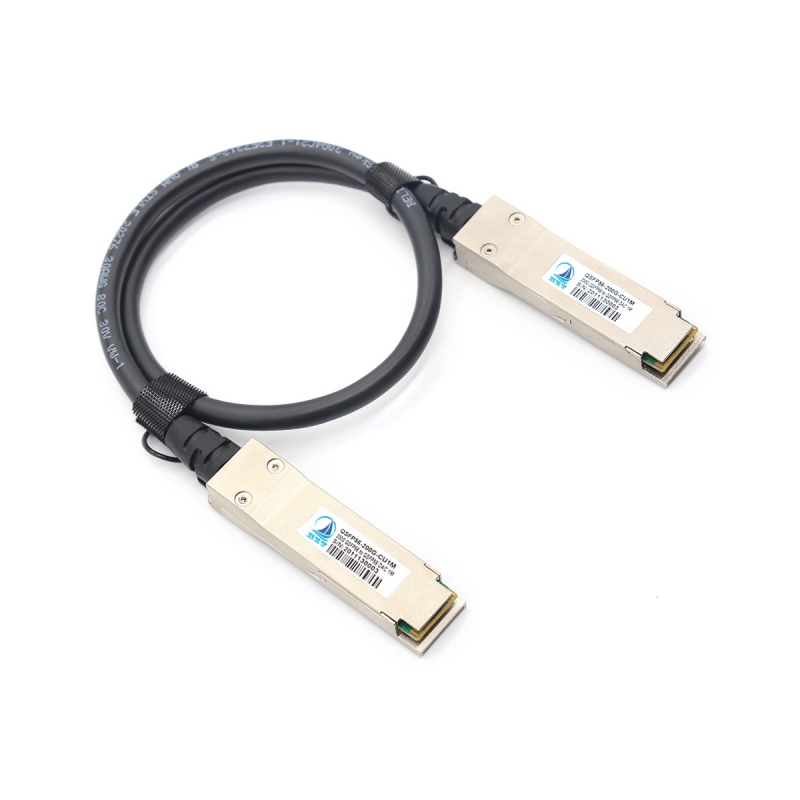

QSFP56-200G-CU1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s 200G QSFP56 Direct Atach Cable (DAc) assemblies are high performance, cost effective l0 solutions for LAN, HPC 13-May.21Rev.0 2 and SAN. The high speed cable assemblies meet and exceed 200 Gigabit Ethernet, infiniBand EDR /HDR and temperaturerequirements for performance and reliability. The cables are compliant with SFF-8436 specifications and provide connectivity between devicesusing QSFP ports.
    Feature
    ● low cost and high reliability
    ● Support data rates :56Gb/s (Support 28GBaud PAM4)
    ● Low crosstalk
    ● 4-Channel Full-Duplex Passive Copper Cable Transceiver
    ● Maximum aggregate data rate:200Gb/s (4 x 50Gb/s)
    ● 2C based two-wire serial interface for EEPROM signature which can be customized

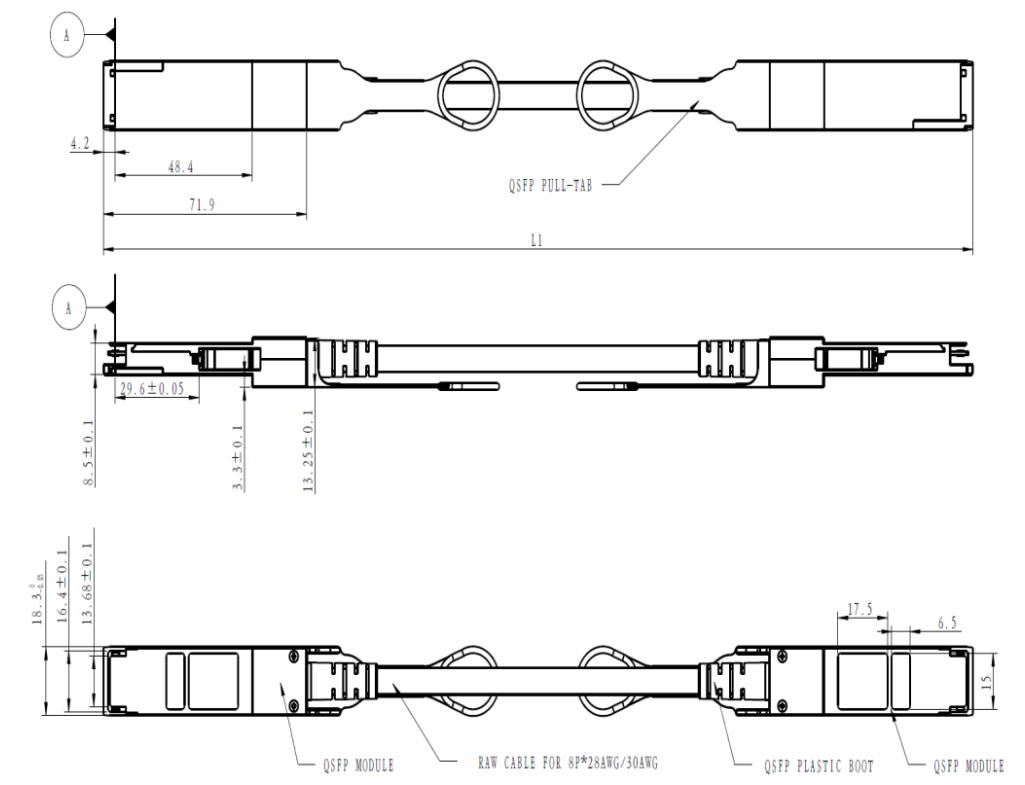

    Dimension
       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-QSFP56-200G-30AWG-***M
    200G QSFP56 Passive Direct Attach Copper Black Cable Assembly, ****≤2m
    30AWG
    ≤2M
    HZT-DAC-QSFP56-200G-28AWG- ***M
    200G QSFP56 Passive Direct Attach Copper Black Cable Assembly, ****≤2m
    28AWG
    ≤2M
    HZT-DAC-QSFP56-200G-26AWG-***M
    200G QSFP56 Passive Direct Attach Copper Black CableAssembly,.****≤3m

    26AWG
    ≤3M
