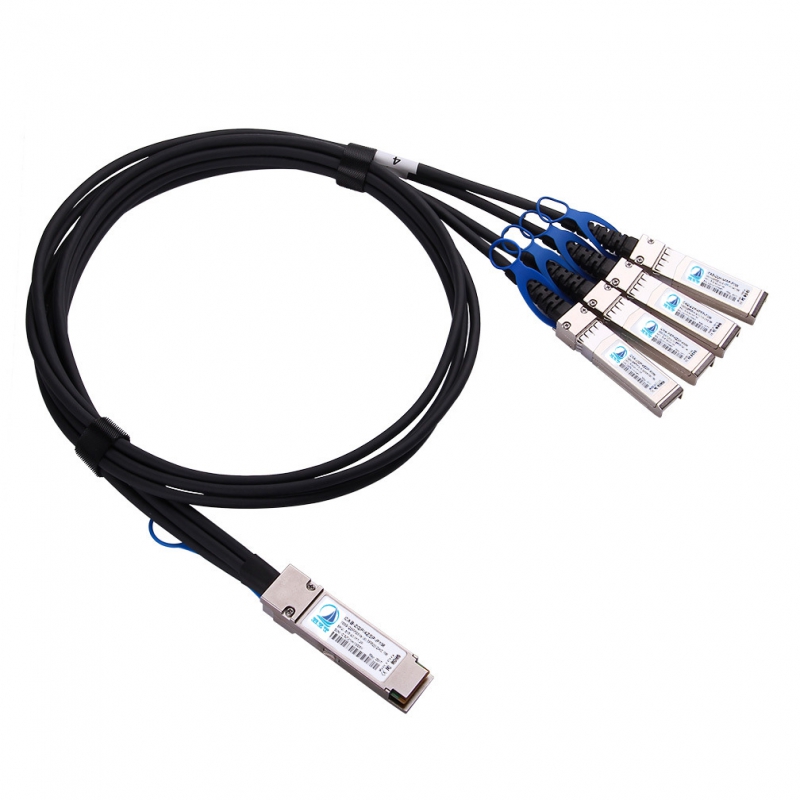

100G QSFP28 to 4x25G Breakout DirectAttached Cable for 1- 3 Meter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s QSFP28 t0 4SFP28 passive cable is the preferred solution for 100G rate short-range data transmision,it has the characteristics of lowpower consumption, good stability and high cost performance.The QSFP28 to 4SFP28 passive cable is used for data transfer between a100G 0SEP28 pout and four25G SEP28 pors, providing a low-cost solution for data transmission senices within and between data centerracks The product complies with the QSFP28 MSA and SEP28 MSA standards
    Feature
    ● low cost and high reliability
    ● QSFP28 End: Compliant with QSFP28 MSA specifications
    ● SFP28 End: Compliant with SFP28 MSA specifcations
    ● 4 independent duplex channels operating at 25Gbps
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● All-metal housing for superior ElMl performance
    ● Single power supply 3.3v, low power consumption
    ● RoHS Compliant
    ● Operating temperature range. 0‘C to 70°c

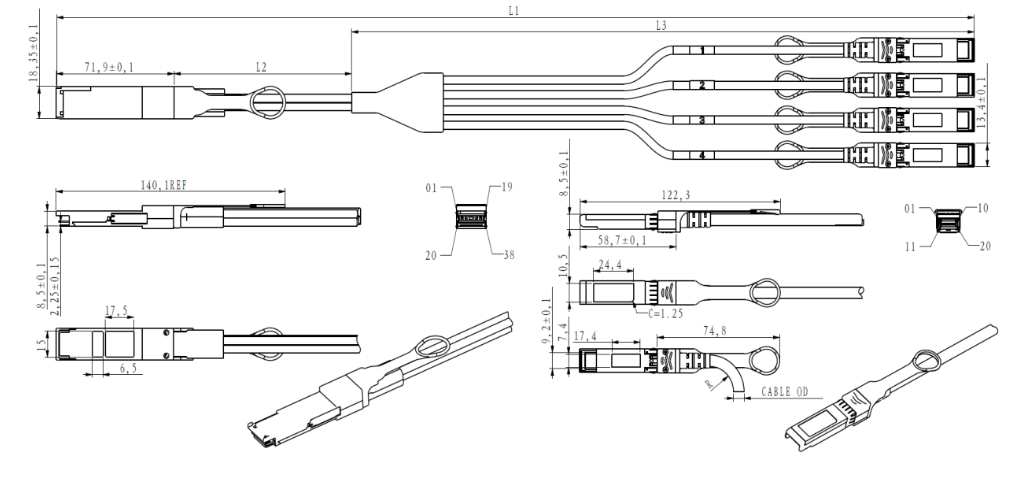

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-QSFP28-4X25G-30AWG-***M
    100G QSFP28 To 4x25 Passive Direct Attach Copper Black Cable Assembly, ****≤2m
    30AWG
    ≤2M
    HZT-DAC-QSFP28-4x25G-28AWG- ***M
    100G QSFP28 To 4x25G Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    28AWG
    ≤3M
    HZT-DAC-QSFP28-4x25G-26AWG-***M
    100G QSFP28 To 4x25G Passive Direct Attach Copper Black Cable Assembly,.****≤5m

    26AWG
    ≤5M
