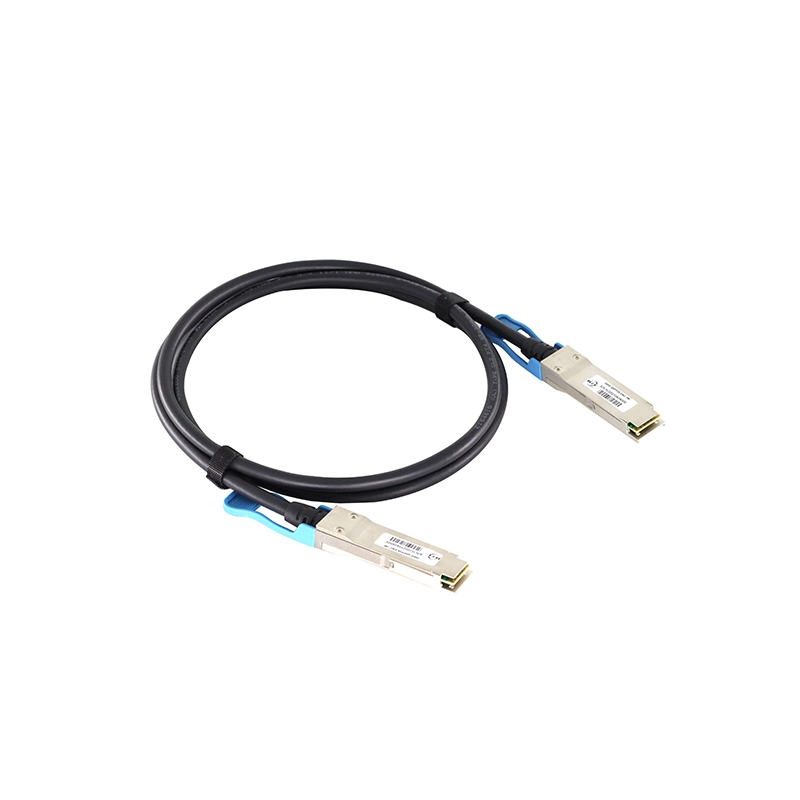

QSFP28-100G-CU1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s QSFP28 passive cable uses shielded high-speed diferential cables,Compliant with 100G Ethernet standard and QSFP28 Muli-SourceAgreement (MSA) standard. it supports 100G transmission rate and can be backward compatible with yarous rates OSFP28 passive cable isihe preferred solution for shor-distance applicaions. t is widely used for data transmission between data centers and cabinets or adiacenicabinets. its biagest feature is low cost, ultra-low power consumption lless than 0.1 wat) and hioh reliability.
    Feature
    ● Up to 100 Gb/s bi-directional data links
    ● Compliant with QSFP28 MSA specifications
    ● Fully Compliant with lEEE 802.3bj and Infiniband EDR specifications
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● All-metal housing for superior Ell performance
    ● Single power supply 3.3v, low power consumption
    ● RoHS Compliant
    ● Operating temperature range: 0.C to 70.C

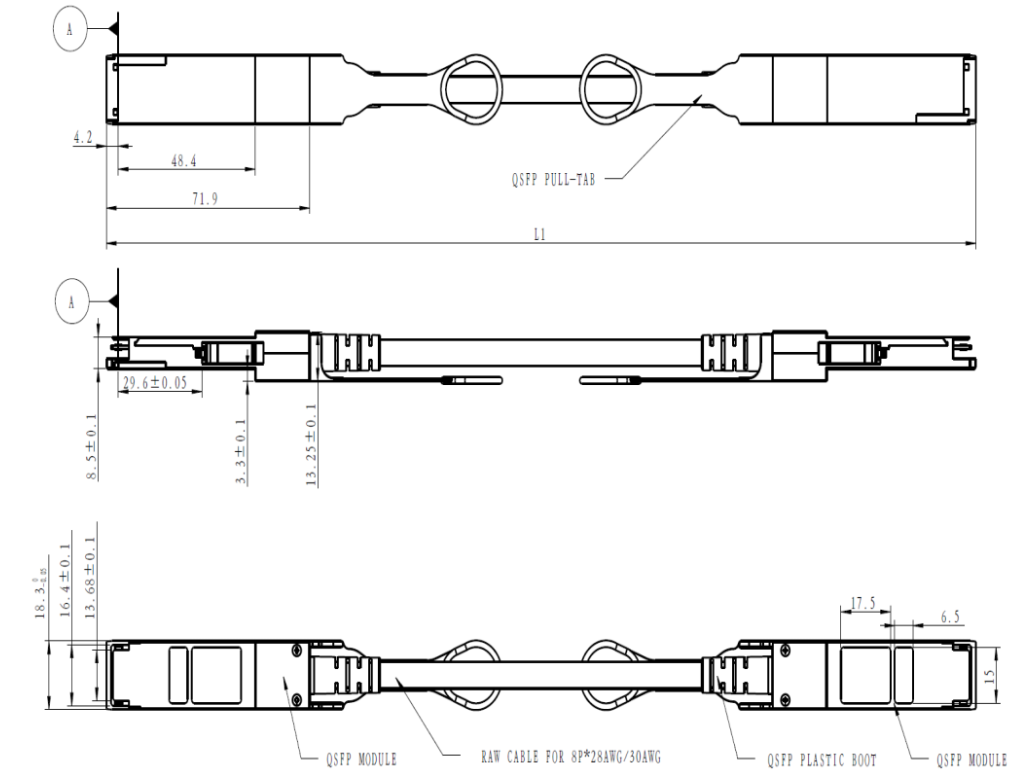

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-QSFP28-100G-30AWG-***M
    100G QSFP28 Passive Direct Attach Copper Black Cable Assembly, ****≤2m
    30AWG
    ≤2M
    HZT-DAC-QSFP28-100G-28AWG- ***M
    100G QSFP28 Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    28AWG
    ≤3M
    HZT-DAC-QSFP28-100G-26AWG-***M
    100G QSFP28 Passive Direct Attach Copper Black Cable Assembly,.****≤5m

    26AWG
    ≤5M
