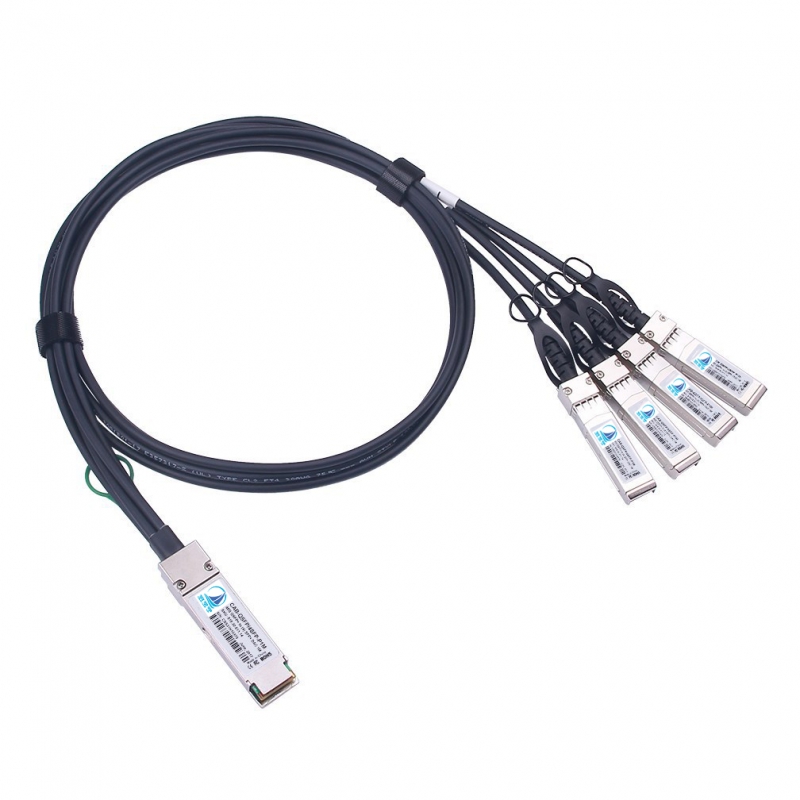

40G QSFP to 4 x10G Breakout Direct AttachCable for 1~5 Meter Optional

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s QSFP to 4 X SFP+ passive cable is the preferred solution for 40G speed shor-range data transmision with low power consumptiongood stablity and high cost performance.The 40G QSFP to 4xSFP+ passive cable is used for data transfer between a 40G QSFP+ por andfour 10G SFP+ ports, providing a low-cost solution for data transfer services within and between data center racks.This product complies witthe SFF-8436,QSFP+ MSA and lEEE 802.3ae standards
    Feature
    ● QSFP10 End:Compliant with QSFP+ MSA specifications
    ● SFP10 End: Compliant with SFP+ MSA specifications
    ● 4 independent duplex channels operating at 10Gbps
    ● Support for 2.5Gbps, 5Gbps data rates
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● All-metal housing for superior EMl performance
    ● Single power supply 3.3v, low power consumption
    ● RoHS Compliant
    ● Operating temperature range. 0‘c to 70°c

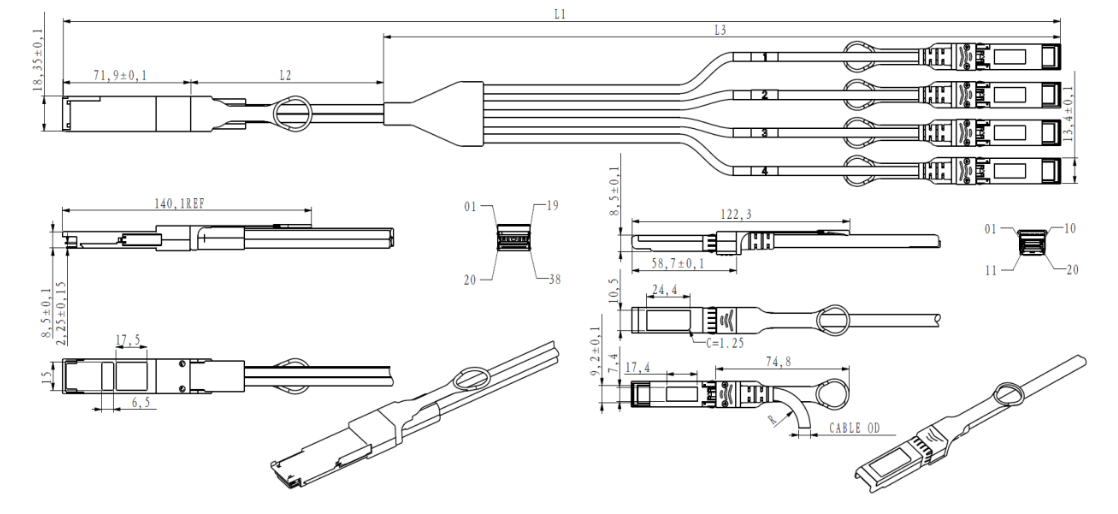

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-QSFP-4x10G-30AWG-***M
    40G QSFP+ To 4x10G Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    30AWG
    ≤3M
    HZT-DAC-QSFP-4x10G-28AWG- ***M
    40G QSFP+ To 4x10G Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    28AWG
    ≤5M
