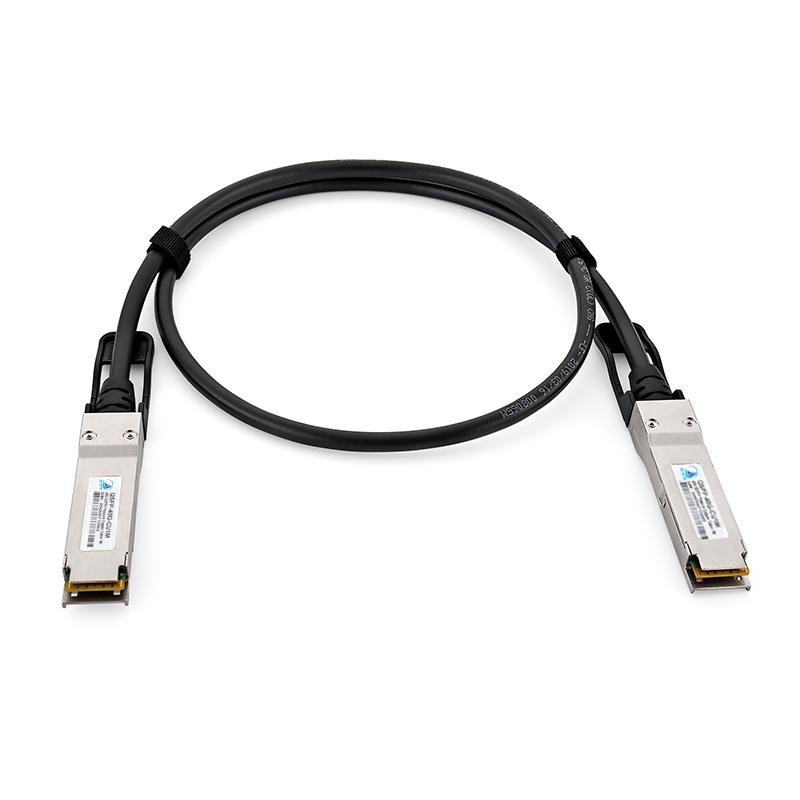

QSFP-40G-CU1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s QSFP-40G-CU1M passive cable uses shielded high-speed diferential cables,Compliant with 40G Ethernet standard and QSFP Mult.Source Agreement (lMSA) standard, it supports 40G transmission rate and can be backward compatible with various speeds.QSFP-40GCU1M passive cables are the preferred solution for shor.haul applications. They are commonly used for data transmission between datacenters and cabinets or adjacent cabinets. The biggest features are low cost, ultra-ow power consumption lless than 0.1 wats) and highreliability.
    Feature
    ● Up to 40Gb/s bi-directional data links
    ● Compliant with QSFP+ MSA specifications
    ● Fully Compliant with lEEE802.3ba
    ● Fully Compliant with infiniband QDR specifications
    ● 4 independent duplex channels operating at 10Gbps
    ● Support for 2.5Gbps,5Gbps data rates
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● All-metal housing for superior EMl performance
    ● Single power supply 3.3V, low power consumption
    ● RoHS Compliant
    ● Operating temperature range: 0‘C to 70°C

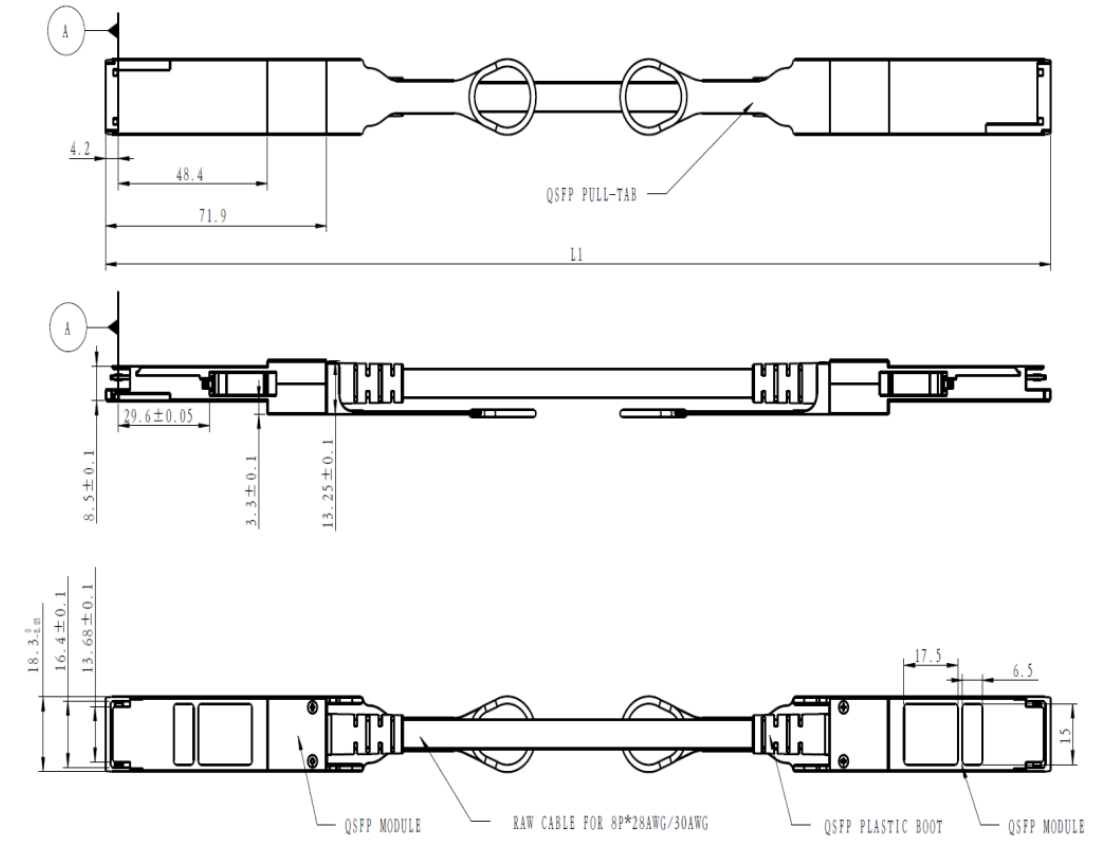

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-QSFP-40G-30AWG-***M
    40G QSFP Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    30AWG
    ≤3M
    HZT-DAC-QSFP-40G-28AWG- ***M
    40G QSFP Passive Direct Attach Copper Black Cable Assembly, ****≤5m
    28AWG
    ≤5M
    HZT-DAC-QSFP-40G-24AWG-***M
    40G QSFP Passive Direct Attach Copper Black Cable Assembly,.****≤7m

    24AWG
    ≤7M
