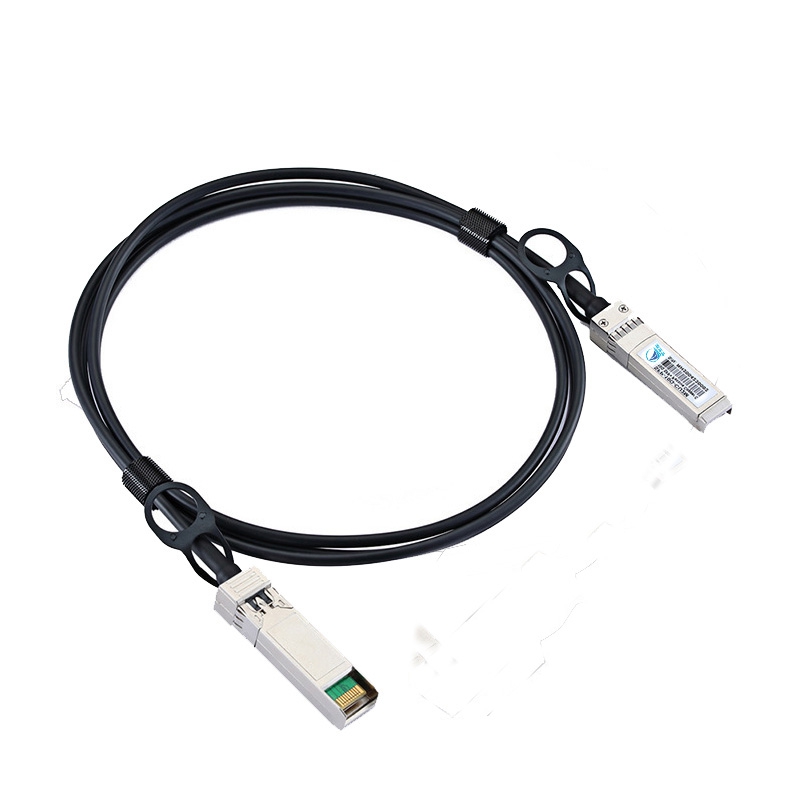

SFP28 Passive Direct Attach copperCable Assembly,1-5 Meter Optional

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s SFP28 passive cable uses shielded hioh-speed diferential cables, compliant with 25G Etheret lEEE802 3by standard and SFF-840?SFP28 standard, it supports 25G transmission rate and can be backward compatible with low-rate applications.The SFP28 passive cable isthe preferred solution for 25G rate shor-distance applications. it is commonly used for data transmission between data centers and cabinetsor adiacent cabinets,its biggest features are low cost, ultra low power consumption (less than 0.1 watt) and high reliability.
    Feature
    ● Up to 25Gb/s bi-directional data links
    ● Compliant with SFF-8402
    ● Hot-pluggable
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● Enhanced EMl design
    ● Single power supply 3.3V
    ● RoHS Compliant
    ● Operating temperature range: 0‘C to 70°C

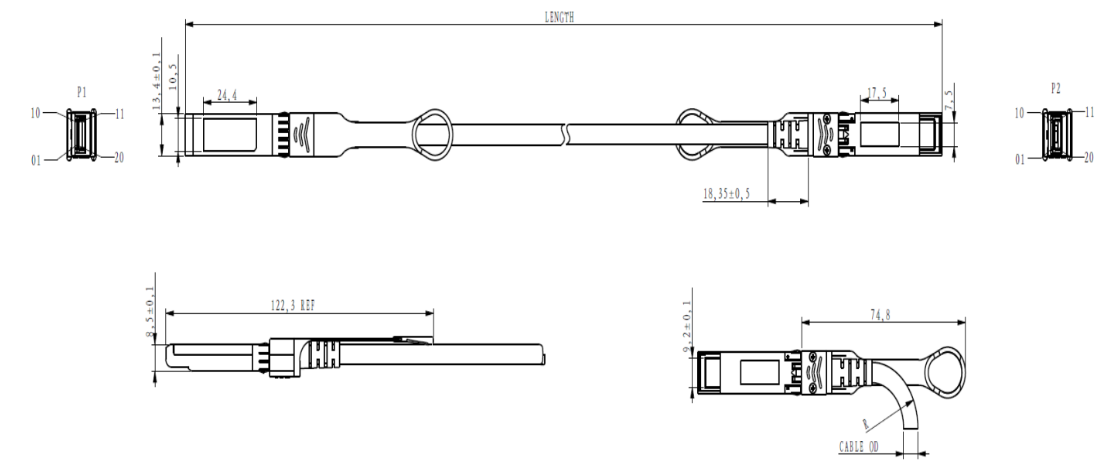

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    2
    Storage Temperature
    TSTO
    -40

    85
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-SFP28-25G-30AWG-***M
    25G SFP28 Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    30AWG
    ≤3M
    HZT-DAC-SFP28-25G-28AWG- ***M
    25G SFP28 Passive Direct Attach Copper Black Cable Assembly, ****≤5m
    28AWG
    ≤5M
    HZT-DAC-SFP28-25G-26AWG-***M
    25G SFP28 Passive Direct Attach Copper Black Cable Assembly,.****≤10m

    26AWG
    ≤10M
