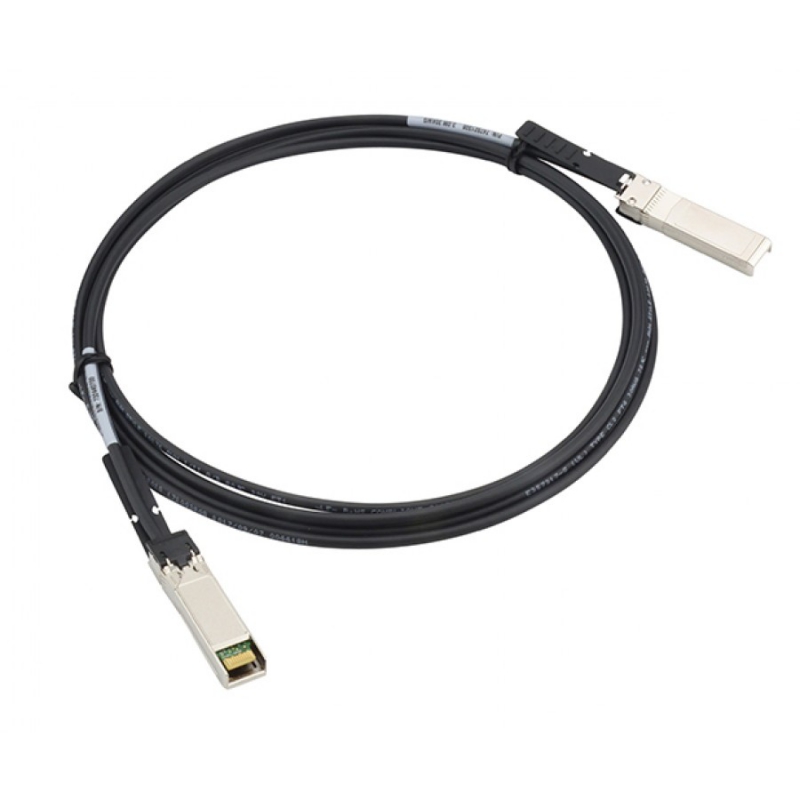

SFP-10G-CU1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s 10G SFP+ passive cable uses shielded high-speed diferential cables,compliant with 10 Gigabit Ethernet standards and SFP Multi.Source Agreement (lMsA) standards, supports 10G transmission rates, and is backward compaible with 1G rates.SFP+ passive cable is thepreferred solution for shor-distance applications. it is widely used for data transmission between data centers and cabinets or adiacentcabinets. ts biagest feature is low cost, ultra-ow power consumption lless than 0.1 watt) and hioh reliability.
    Feature
    ● Up to 10 Gb/s bi-directional data links
    ● Compliant with 10GFC
    ● Compliant with SFF-8431
    ● AC coupled inputs and outputs
    ● 100 Ohm differential impedance
    ● Enhanced EMl design
    ● Single power supply 3.3V
    ● RoHS Compliant
    ● Operating temperature range: 0‘C to 70C
    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Gauge
    Length
    HZT-DAC-SFP-10G-30AWG-***M
    10G SFP Passive Direct Attach Copper Black Cable Assembly, ****≤3m
    30AWG
    ≤3M
    HZT-DAC-SFP-10G-28AWG- ***M
    10G SFP Passive Direct Attach Copper Black Cable Assembly, ****≤5m
    28AWG
    ≤5M
    HZT-DAC-SFP-10G-24AWG-***M
    10G SFP Passive Direct Attach Copper Black Cable Assembly,.****≤10m

    24AWG
    ≤10M
