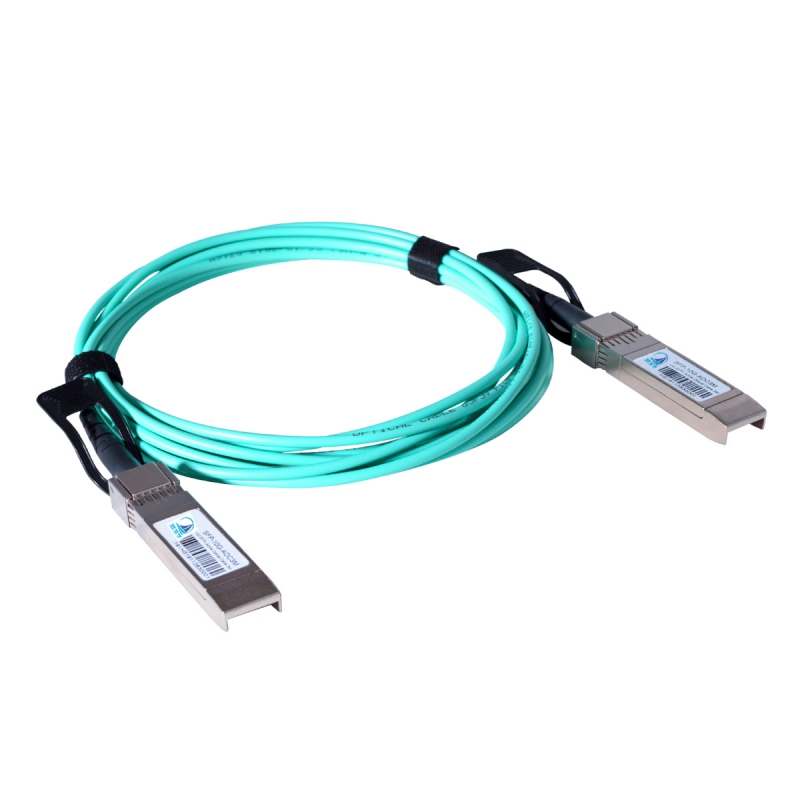

SFP-10G-AOC1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘S AOC-SFP-10G-0M3-***M SFP+ active optical cables are based on 10 Gigabit Ethernet and SFf-8431 standard, and provide a quick
    and reliable interface for the 10G Etherlnet application, The dioital diagnostic functions are available via 2-wire seralbus soecified in SFF-847.
    Feature
    ● Up to 10.5 Gb/s bi-directional data links
    ● Compliant with lEEE 802.3aeCompliant with SFF-8431
    ● Hot-pluggable SFP+ footprint
    ● 850nm VCSEL laser transmitter and PlN receiverBuilt-in digital diagnostic functions
    ● Up to 300m on OM3 MMF
    ● Low power consumption (Module work consumption <1W)
    ● Single power supply 3.3V
    ● RoHS Compliant
    ● Operating temperature range (Case Temperature) : 0‘c to 70°C

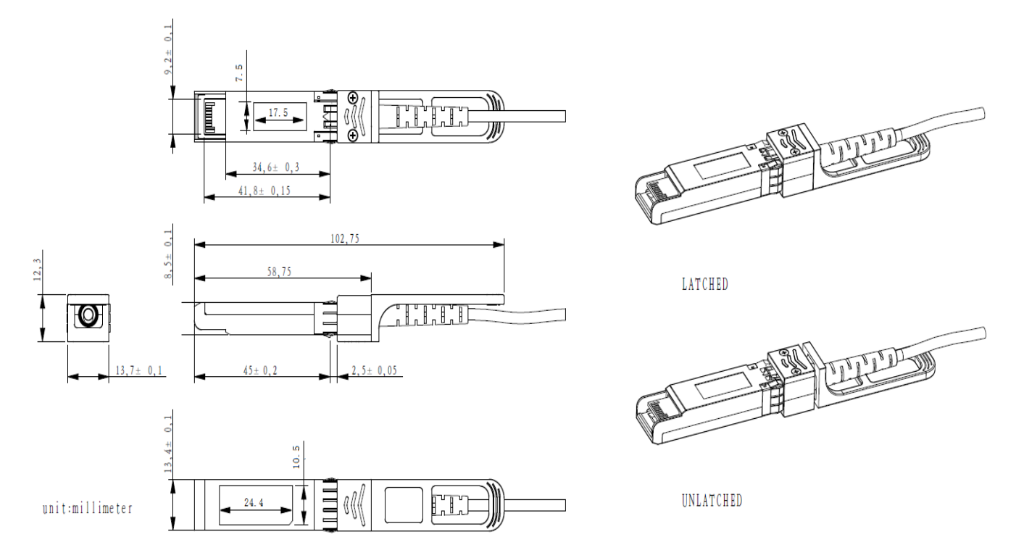

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Color on Clasp
    HZT-AOC-SFP-10G- ***M
    10G SFP+ Active Optical Cable,Length 0.5~100 meters
    Black or Blue
