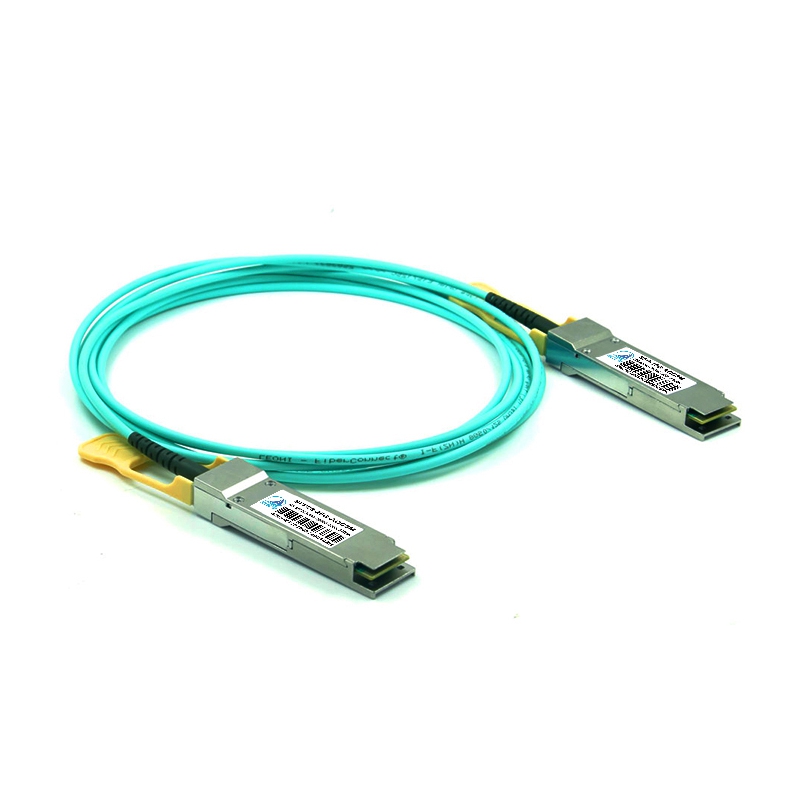

SFP28-25G-AOC1M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘S AOC-QSFP28-0SFP28-0M3-aaa.aaM-C0C0c QSFP28 active optical cable transceivers are 4-channel active optical cable forOSFP28 application. This fullduplex optical assembly ofers 4 independent transmit and receive channels, each capable of up to 25Gbps foran aggregate bandwidth of 100Gbps 0SEP28 A0c can be used as a direct replacement for traditional copper cables with the added beneft of a liohter weioht andsmaller diameter solution for cable lengths from 1 to 70 meters.
    Feature
    ● Hot-pluggable QSFP28 form factor4 high-speed full duplex channels
    ● Supports 103.1Gb/s aggregate bit rate
    ● 4x25Gbps 850nm VCSEL laser
    ● QSFP28 MSA compliant
    ● Low power dissipation: <3.5W per cable end (<2.5W with CDRs off)
    ● Cable lengths from 1 to 70 meters
    ● RoHS Compliant
    ● Operating temperature range: 0‘Cto70‘C

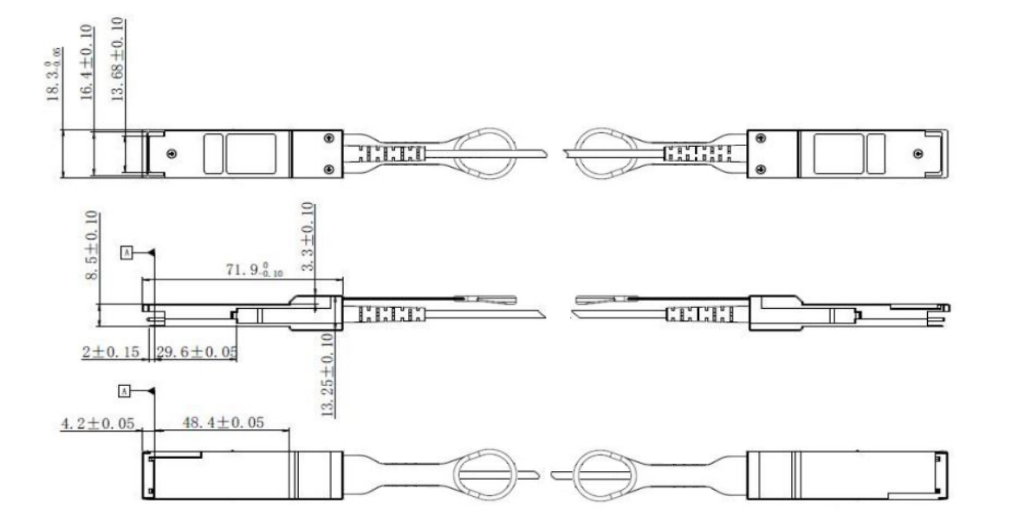

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Color on Clasp
    HZT-AOC-SFP28-25G- ***M
    25G SFP28 Active Optical Cable,Length 0.5~100 meters
    Black or Blue
