QSFP-40G-AOC1M

  • Description
  • Technical data
  • Make an inquiry
    Description

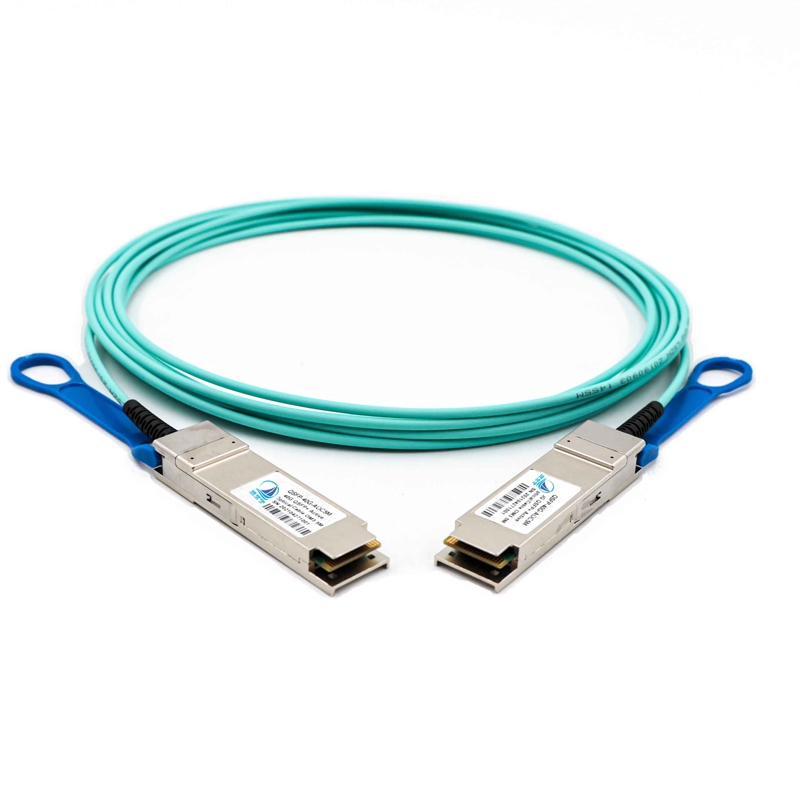

    HZT‘s 40G QSFP+ AOC cables provide an ideal aternative solution to QSFP+ direct attach copper cables (DAC) and QSFP+ transceivers ofshort reach while providing improved signal integrity, exceptional cost, and performance value. They are designed expressed for high speed.high density and low power consumption for today‘s data center networking applications.
    The QSFP+ AOC cables are composed of QSFP+ transceivers in both ends and OM3 multimode fiber cable in diferent cable length from 1 to100 meters. They offer 4 independent data transmission channels and 4 data receiving channels via the multimode fibers. An aggregate datarate of 40 Gbps can be achieved by this product. The QSFP+ AOC is one kind of paralel transceiver which provides increased port densityand total system cost savings.
    Feature
    ● Four-channel full-duplex active optical cable
    ● Transmission data rate up to 11.3Gbit‘s per channel
    ● Reliable VCSEL array technology using multimode fiber
    ● Available in standard lengths of 3,5,10,15,20,30, 50,100m
    ● Low power consumption <1.5W
    ● Operating case temperature 0‘C to +70°C
    ● 3.3V power supply voltage
    ● RoHS 6 compliant
    ● Hot Pluggable QSFP form factor

    Dimension

       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    5*10-5


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    2
    Storage Temperature
    TSTO
    -40

    85
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Color on Clasp
    HZT-AOC-QSFP-40G- ***M
    40G QSFP+ Active Optical Cable,Length 0.5~100 meters
    Black or Blue
