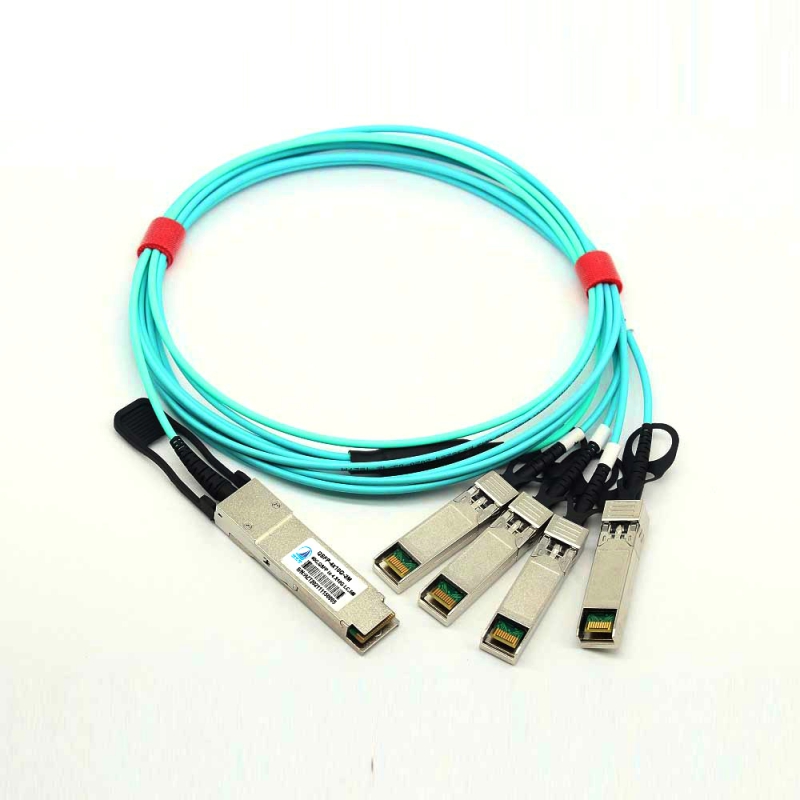

40G QSFP+ to 4xSFP+ Breakout ActiveOptical Cable up to 30m

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s QSFP+ to 4xSFP+ active optical cable are suitable for 1 to 300 meters MMF OM3 distances to connect QSFP+ and SFP+ equipments
    This interconnect system is fully compliant with QSFP+ MSA and SFP+ MSA.
    Feature
    ● QSFP+ End: Compliant with QSFP+ MSA specifications
    ● SFP+ End: Compliant with SFP+ MSA specifications
    ● 4 independent duplex channels operating at 10Gbps
    ● Cable length up to 100 meters
    ● Hot-pluggable SFP footprint
    ● Reliable VCSEL array technology
    ● Small bend radius for easy installation and fiber management
    ● Single power supply 3.3V
    ● RoHS Compliant
    ● Operating temperature range: 0‘c to70°c

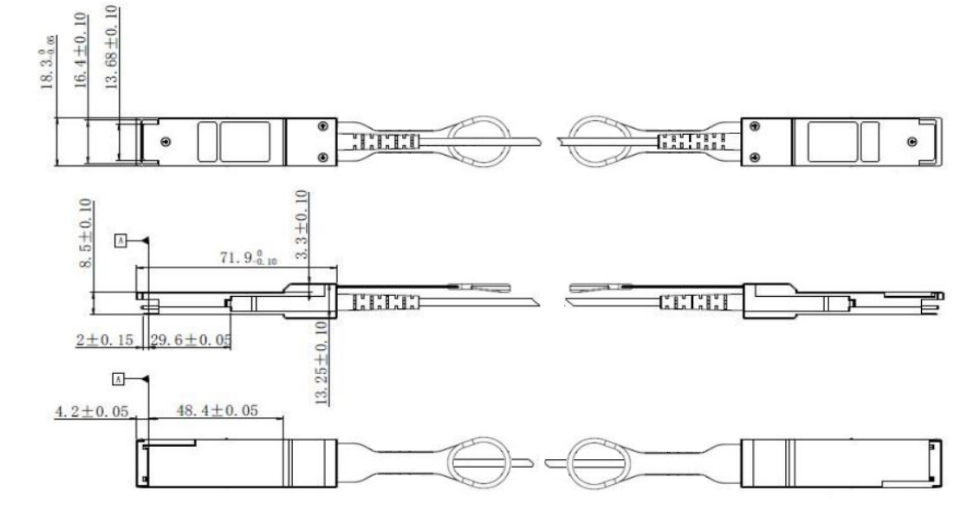

    Dimension
       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V

     Ordering Information
    Part Number
    Description
     Color on Clasp
    HZT-AOC-QSFP-4x10G- ***M
    40G QSFP+ to 4 * 10G Break-out  Active Optical Cable,Length 0.5~100 meters
    Black
