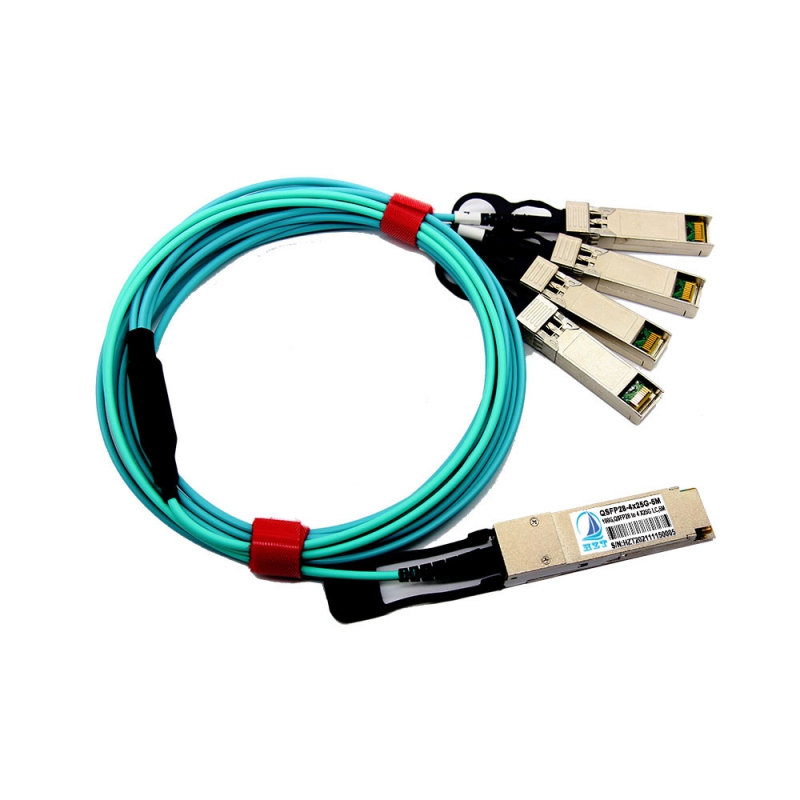

QSFP28--4x25G-AOC5M

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s 100G QSFP28 to 4X25G A0C is a high data rate parallel active optical cable (A0C), to overcome the bandwidth limitation of traditionacopper cable. The AOC is terminated with a QSFP28 module at one end and four SFP28 modules at the other With the OSEp28 teminal itofers 4 independent data transmission channels and 4 data receiving channels via multimode ribbon fibers, each capable of 25Gb/s operation. The fiber ribbon then fans out to four iber cables, each of which is terminated with an SFP28 module. Consequently, an aggregatedata rate of 100Gb/s over up to 100m transmission can be achieved by this product, to support the ultra-fast computing data exchange. Theproduct is desianed wth fomm factor, ooticalelectnical connection according to the 0SEP28 and SEp28 ulti.Source Aoreements lMSA).  It has been desioned to meet the harshest extemmal operatina conditions including temperature, humidity and Ell interference.
    Feature
    ● Four-channel full-duplex active optical cable from QSFP28 to four SFP28
    ● Supports 25.78125Gb/s per channelLow Power Dissipation, Max 1 .8W on QSFP28 end, Max. 0 8W on SFP28 end
    ● Operating Case Temperature:0‘C-70°GR-468:Reliability Qualification
    ● QSFP28 fomm factor compliance to
    ● SFF-8679 electrical interface
    ● ● SFF-8661 Pluggable Module
    ● SFF-8636 Management Interface
    ● lEEE 802 3bm: Physical Layer Specifications and Management Parameters
    Dimension
       Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    100

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    2
    Storage Temperature
    TSTO
    -40

    85
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    3.6
    V


     Ordering Information
    Part Number
    Description
     Color on Clasp
    HZT-AOC-QSFP28-4x25G- ***M
    100G QSFP28 Active Optical Cable,Length 0.5~100 meters
    Black
