RS485 Half-duplex/Full duplex Data To Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-RS485-SM001 RS485 To Fiber Optic Converter support RS485 data over one multi-mode or single-mode optical fiber. The serial data support RS422 data protocols. These fiber optic transmitter and fiber optic receiver are typically used in applications with PTZ Control, Access Control System, CCTV surveillance, Industirlia control, ITS etc, and are available for stand-alone or rack-mount installations FC, ST or SC optical connectors is optional.
    Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

    Feature
     Support RS485 DATA Protocols.
     Support 1/2/4/8/16-ch or Bi-directional.
     Stand alone or rack-mount for optional.
     Support OEM

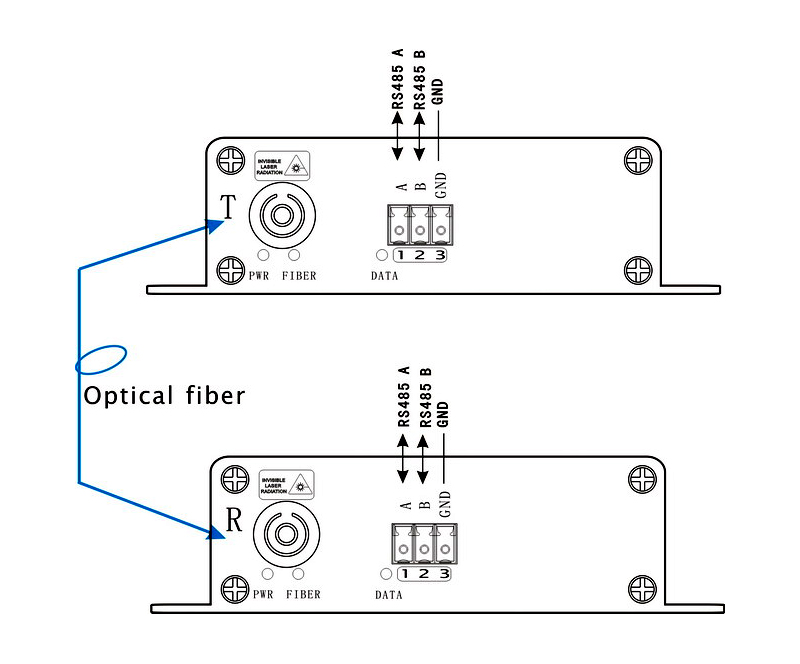

    Connection Diagram




    Specification
    Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power:
    -12~ -3dBm
    Optic fiber:
    50/125u multimode,9/125u single mode
    Rx sensitivity:
    -30dBm
    Optical connector:
    FC /ST /SC  (optional)
    Distance:
    0~20KM/40KM/60KM/80KM (SM)
    RS485 Data
    Data Protocol:
    RS485
    Data Rate:
    0~500 Kbps
    Error rate:
    < 10-9
    Input/Output Connector:
    Terminal Blocking Type
    Number of  Transmitter Channel:
    1-ch RS485, (Notice: RS485 direction is Forward,  Reverse, BIDI half-duplex or Full-deplex)
    Number of  Receiver Channel :
    1-ch RS485

    Electrical & Mechanical

    Input Power Requirements:
    DC 5V@2A
    Power Adapter:
    AC 90V~240V
    Power Consumption:
    < 3W
    Stand-Alone Dimensions:
    104mm × 104mm × 28mm
    Shipping Weight:
    (include Transmitter & Receiver ) 0.75kg

    Environmental

    Operation Temperature:
    -20°C ~ +75°C
    Storage Temperature:
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
