Optical
|
|
|
Wavelength:
|
1310nm&1470nm~1610nm
|
|
Output Power:
|
-12~ -3dBm
|
|
Optic fiber:
|
50/125u multimode，9/125u single mode
|
|
Rx sensitivity:
|
-30dBm
|
|
Optical connector:
|
FC /ST /SC (optional)
|
|
Distance:
|
0~20KM/40KM/60KM/80KM (SM)
|
|

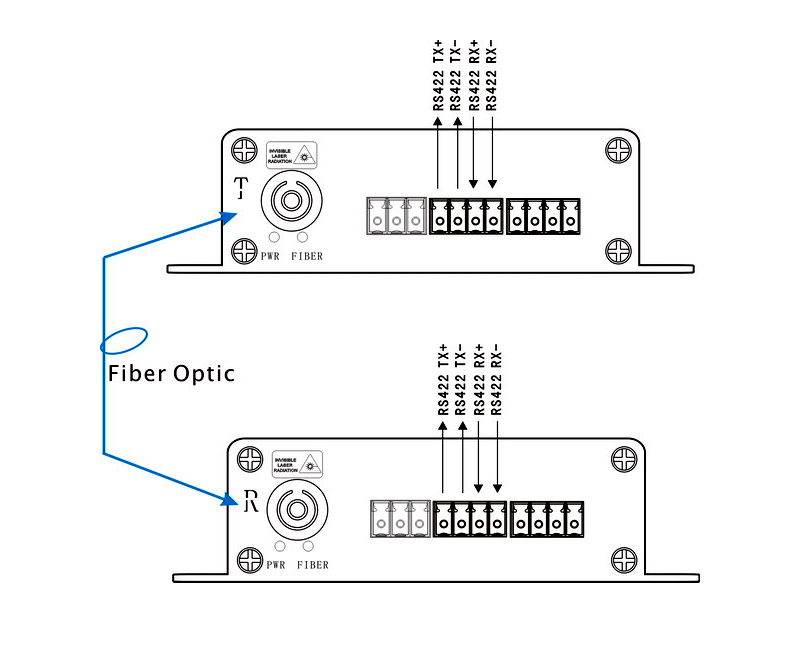

RS422 Data
|
|
|
Data Protocol:
|
RS422
|
|
Data Rate:
|
0~500 Kbps
|
|
Error rate:
|
< 10-9
|
|
Input/Output Connector:
|
Terminal Blocking Type
|
|
Number of Transmitter Channel:
|
1-ch RS422,
|
|
Number of Receiver Channel :
|
1-ch RS422
|
|
Electrical & Mechanical |
|
|
Input Power Requirements:
|
DC 5V@2A
|
|
Power Adapter:
|
AC 90V~240V
|
|
Power Consumption:
|
< 3W
|
|
Stand-Alone Dimensions:
|
104mm × 104mm × 28mm
|
|
Shipping Weight:
|
(include Transmitter & Receiver ) 0.75kg
|
|
Environmental |
|
|
Operation Temperature:
|
-20°C ~ +75°C
|
|
Storage Temperature:
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
 |
