Optical
|
|
|
Wavelength:
|
1310nm&1470nm~1610nm
|
|
Output Power :
|
-14~ -8dBm /-5~0dBm
|
|
Optic fiber :
|
50/125u multimode，62.5/125u multimode，9/125u single mode
|
|
Rx sensitivity :
|
-30dBm
|
|
Optical connector :
|
FC /ST /SC /LC (optional)
|
|
Distance :
|
0~500M(MM) / 0~20KM/40KM/60KM/80KM(SM)
|
|
RCA Audio |
|
|
Input/output Impedance
|
600ohm(unbalance)
|
|
Max input/output voltage
|
3.0Vp-p
|
|
Frequency Response
|
10 Hz～29kHz @±3dB
|
|
SNR
|
> 70dB
|
|
Connector
|
RCA Connector
|
|

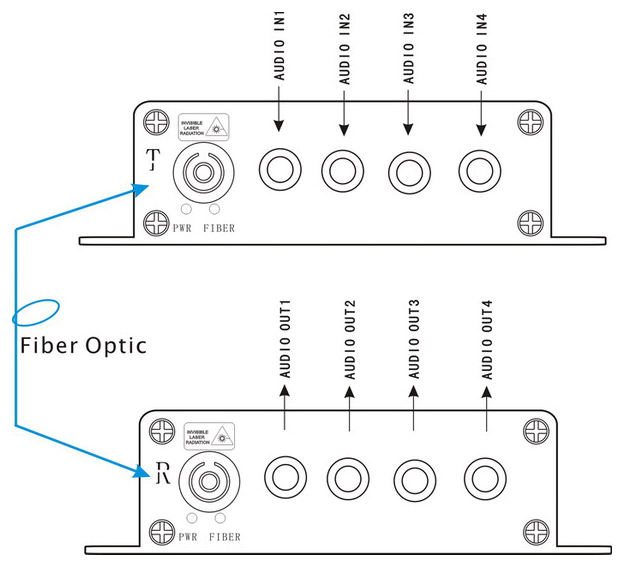

Number of Transmitter Channel :
|
4-ch Analog line-level RCA Audio Input
|
|
Number of Receiver Channel :
|
4-ch Analog line-level RCA Audio Output
|
|
Electrical & Mechanical |
|
|
Input Power Requirements :
|
DC 5V@2A
|
|
Power Adapter :
|
AC 90V~240V
|
|
Power Consumption :
|
< 3W
|
|
Stand-Alone Dimensions :
|
104mm × 104mm × 28mm
|
|
Shipping Weight :
|
(include Transmitter & Receiver ) 0.8Kg
|
|
Environmental |
|
|
Operation Temperature :
|
-20°C ~ +75°C
|
|
Storage Temperature :
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
 |
