2-CH Analog RCA Audio Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

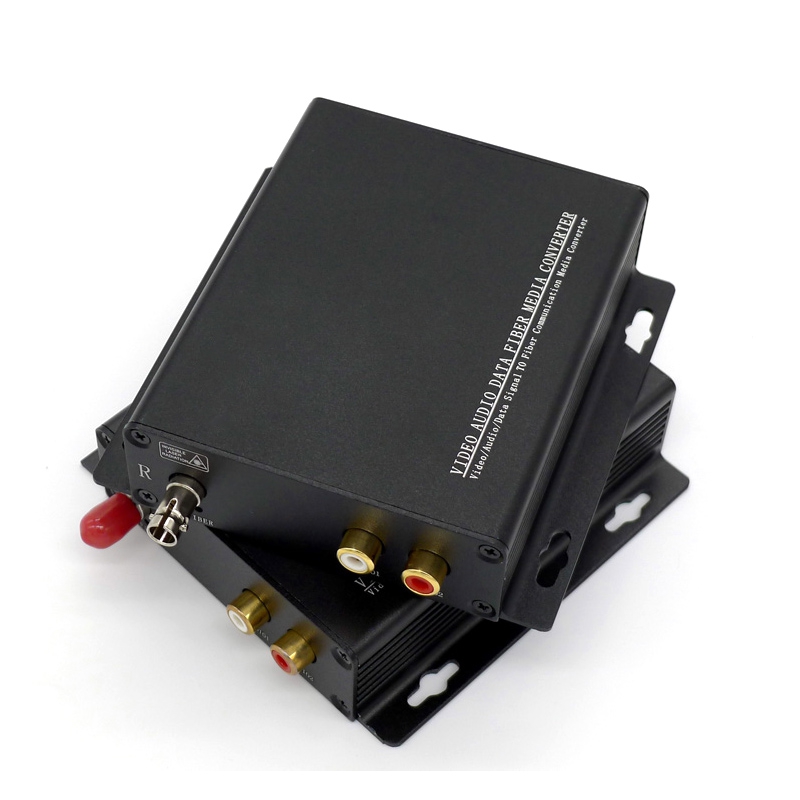

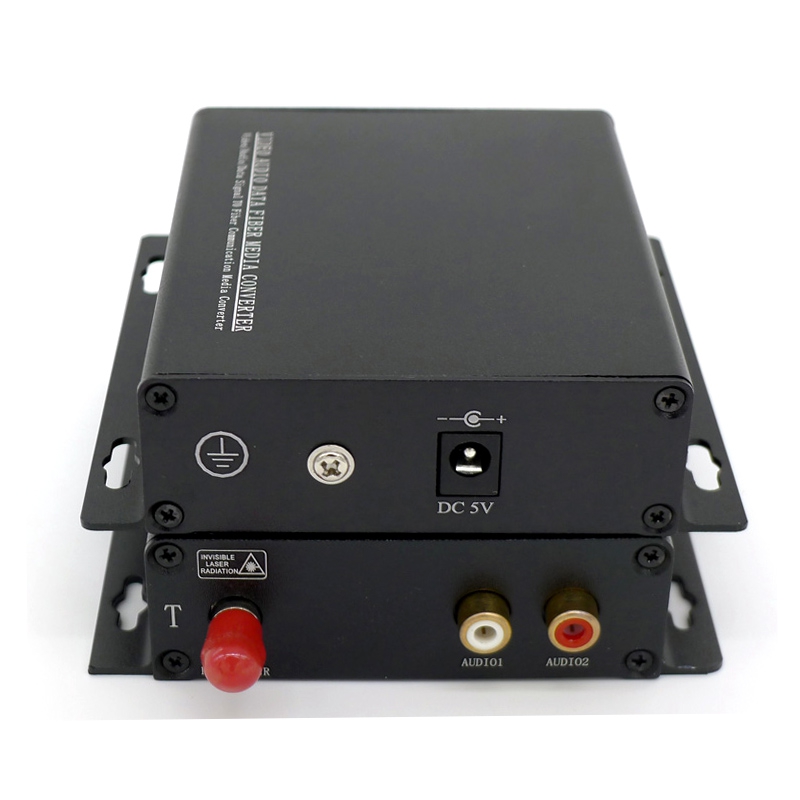

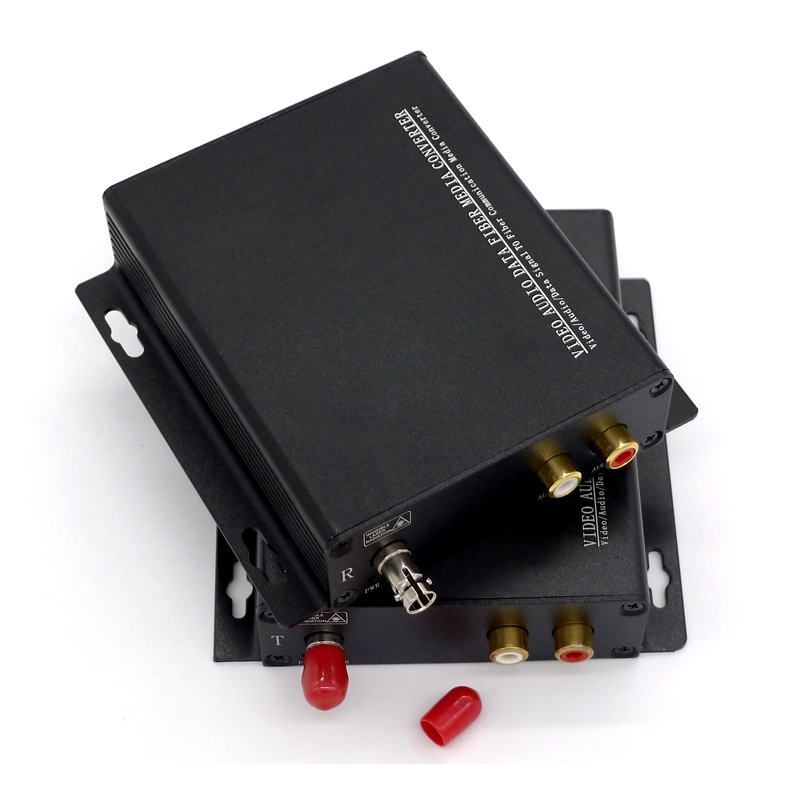

    HZ-RCA-2ASM001 2-CH RCA Audio To Fiber Converter support 2 channels Audio (RCA) over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
    Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
    Features
    • 24-Bit Digitally Encoded Audio
    • Support Point-to-Point or Daisy-Chain connection
    • Multimode Fiber transmit up to 4km without Optical Attenuation
    • Single-Mode Fiber transmit up to 100km without Optical Attenuation
    • No EMI, RFI, Cross Talk or Video Distortion and no ground loops
    • LED Indicators for Instant System Monitoring
    • Standalone or Rack Mount in FVC14 Chassi
    • Produce according to customer‘s specifications, providing OEM

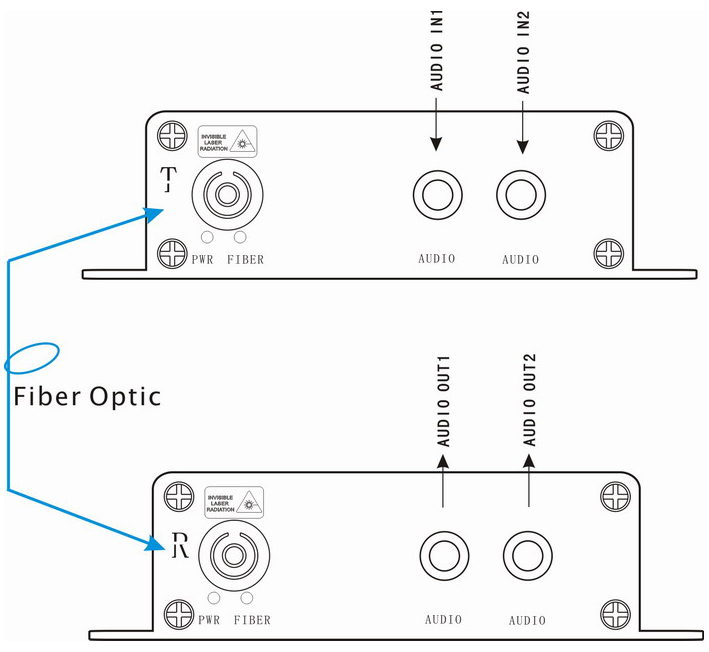

    Connection Diagram


    Fiber Optic:
    Wavelength: 1310nm
    Output Power: -9~-3dBm
    Optical fiber: 9/125u single mode, 50/125u multimode，62.5/125u multimode
    Rx sensitivity: -18dBm
    Optical connector: ST, SC,FC,LC Optional.
    Distance: 0~500M (MM)   /   0~10KM   (SM Default),  20/40/60KM can customized.
    Analog Audio
    Input/ output Impedance : 600ohm(unbalance)
    Max input/output voltage : 3.0Vp-p
    Frequency Response :

    10 Hz～29kHz @±3dB
    SNR:  > 70dB
    Connector:  RCA
    Number of tranmitter Input 2-CH RCA Audio input
    Number of receiver output 2-CH RCA Audio output
    General：
    Input Power  DC 5V2A
    Power consumption (maximum) < 3W
    Operating temperature 0°C to 55°C
    Storage temperature -10°C to 70°C
    Operating humidity 0 ~ 95% (non-condensing)
    Net Weight 0.75 /pair
    Dimension : 104mm × 104mm × 28mm
    Case material Aluminum
