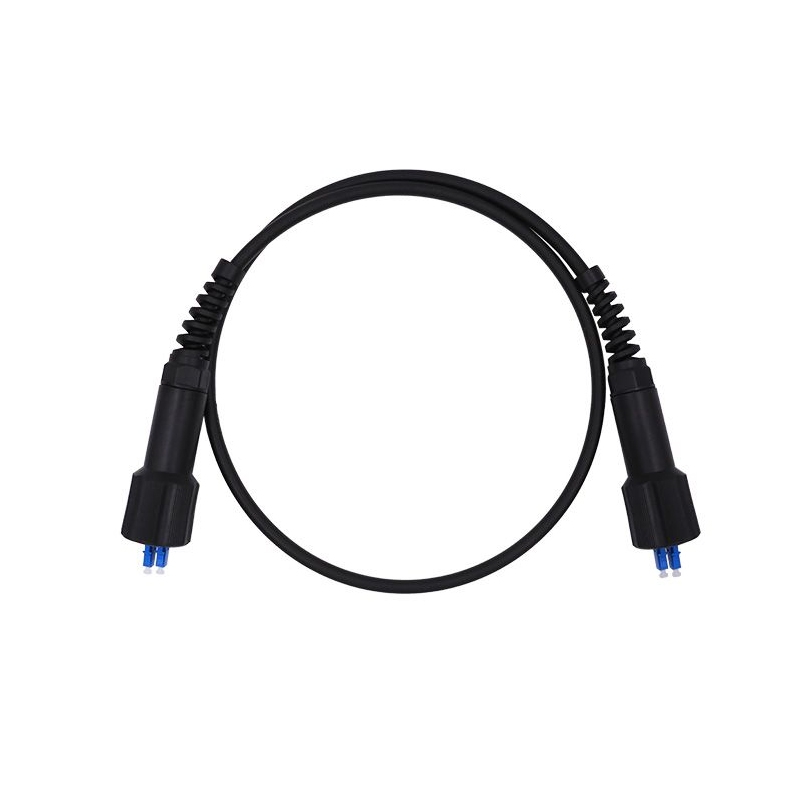

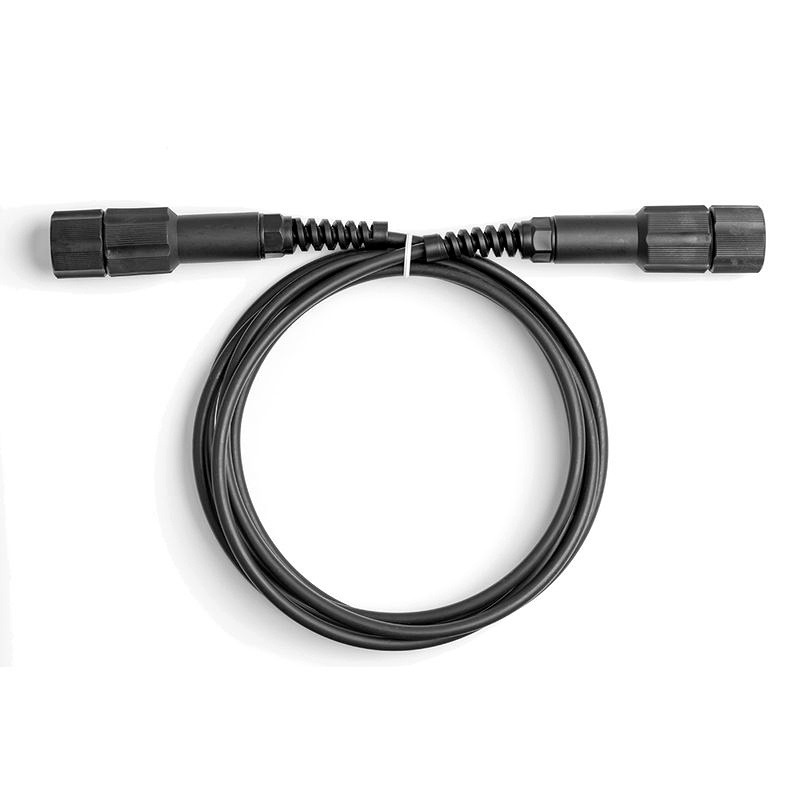

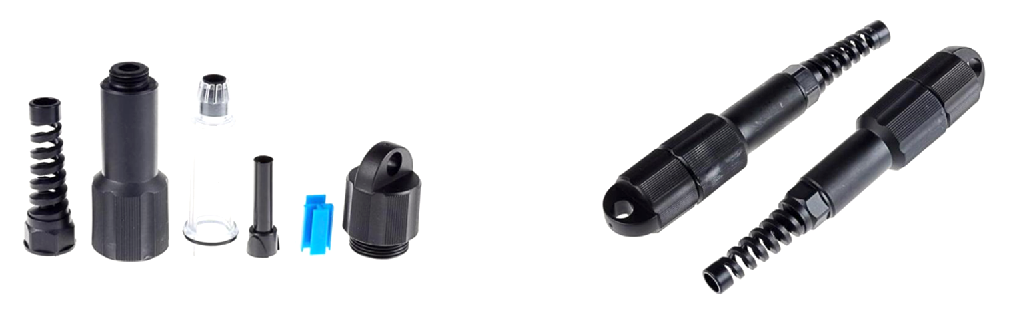

PDLC-PDLC Duplex Outdoor Waterproof Fiber Optical Patch Cord

  • Description
  • Technical data
  • Make an inquiry

    Description

    PDLC connectors and required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
    Features

    Standard Duplex LC connector, low IL, high RL.

    IP67 protection, salt-mist proof, humidity proof,dust proof.

    Easy Operation, reliable and cost-effective Installation.

    100% optically tested to ensure quality performance assemblies.

    Application

    ●Used in access building cable.♦ Used in wireless base station (BS) horizontal and vertical cabling.

    Military communication system

    Coal, oil, natural gas, geological exploration

    Broadcast television, temporary communication

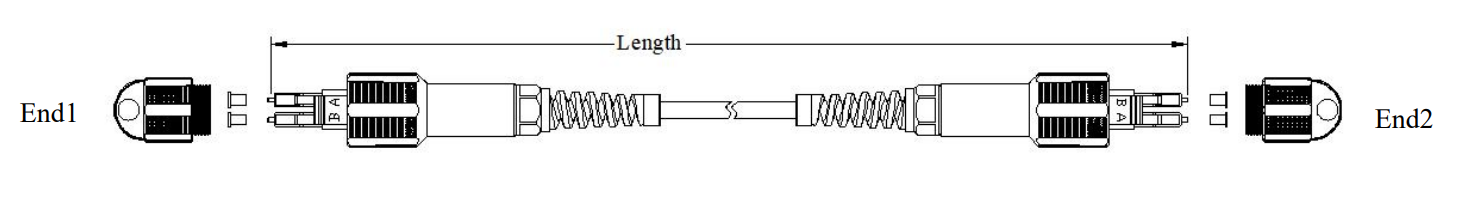

    Connector Structure Drawing



    Specfication
    Item Parameter
    Connector Side A:  PDLC
    Connector Side B :  PDLC

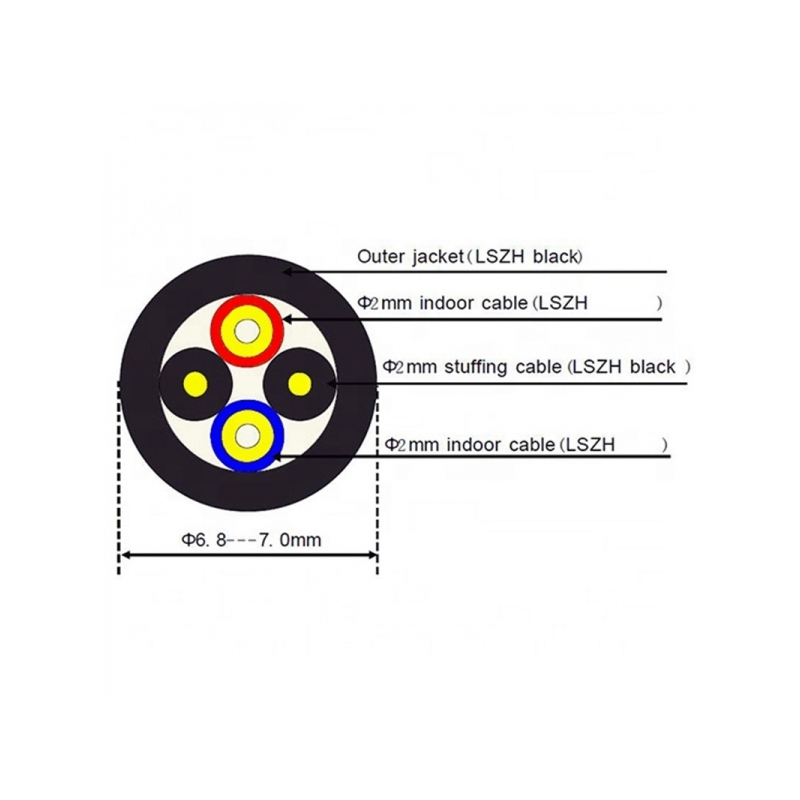

    Cable Diameter : 7.0±0.2mm
    Material & Color for Jacket :  LSZH Color Black
    Insertion loss :

    Single mode:Typical l value≤0.15dB;Maximum≤0.30
    Multi mode:Typical value≤0.15dB;Maximum≤0.25
    Return loss :  SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC)
    Minimum allowable Tensile Strength (N)

    Short Term  600N
    Long  Term  1000N

    Minimum allowable Crush Load (N/100mm)

    Short Term  1000N
    Long Term  2000N
    Minimum Bending Radius (MM)


    Short Term  20D
    Long Term  10D

    Mechanical Characteristics
    Endurance : 500 matings
    Vibration : Frequency: 10 to 55Hz,Amplitude: 0.75mm
    Cable retention :  400N (main cable); 50N (connector part)
    Strength of coupling mechanism : 80N for 2 to 3mm cable
    Cable torsion : 15N for 2 to 3mm cable
    Fall :  10 drops, 1m drop height
    Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
    Cold -25°C, 96h duration
    Dry heat +70°C, 96h duration
    Change of temperature -25°C to +70°C, 12 cycles
    Humidity +40°C at 93%, 96h duration
