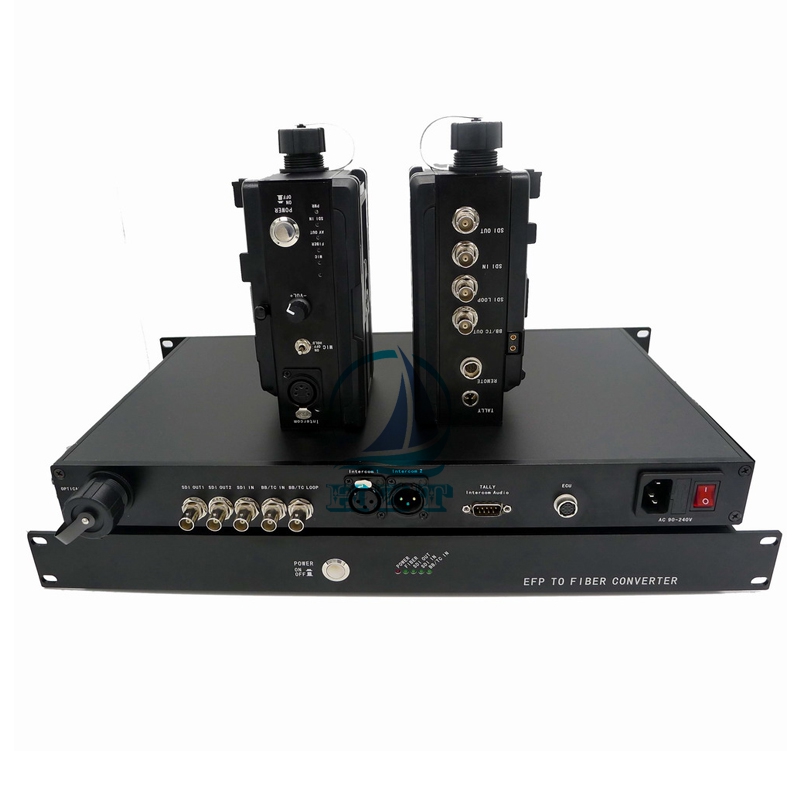

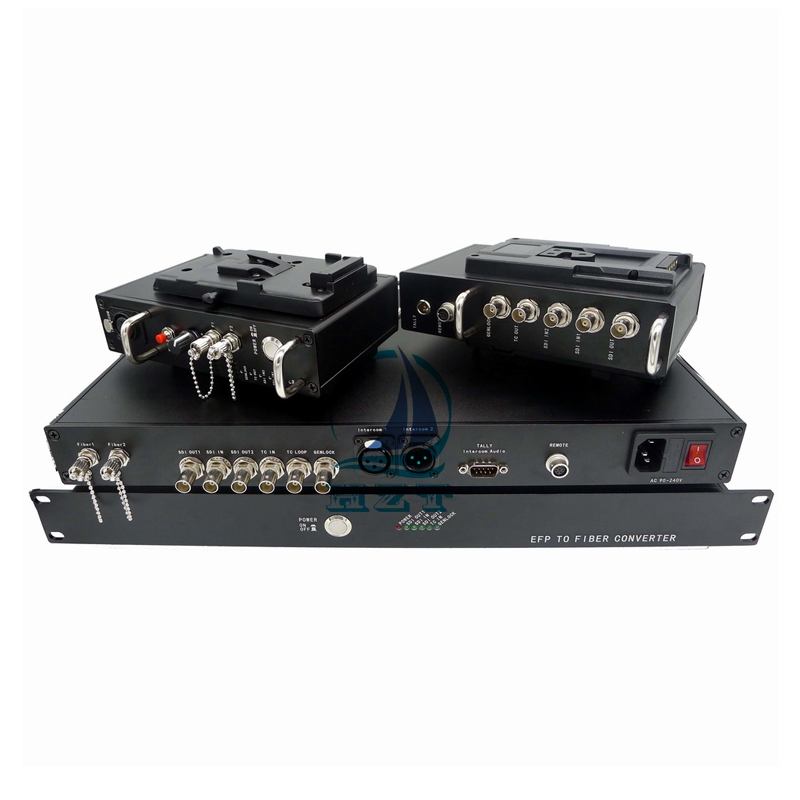

EFP to fiber Converter for Panasonic camera

  • Description
  • Technical data
  • Make an inquiry

    Description

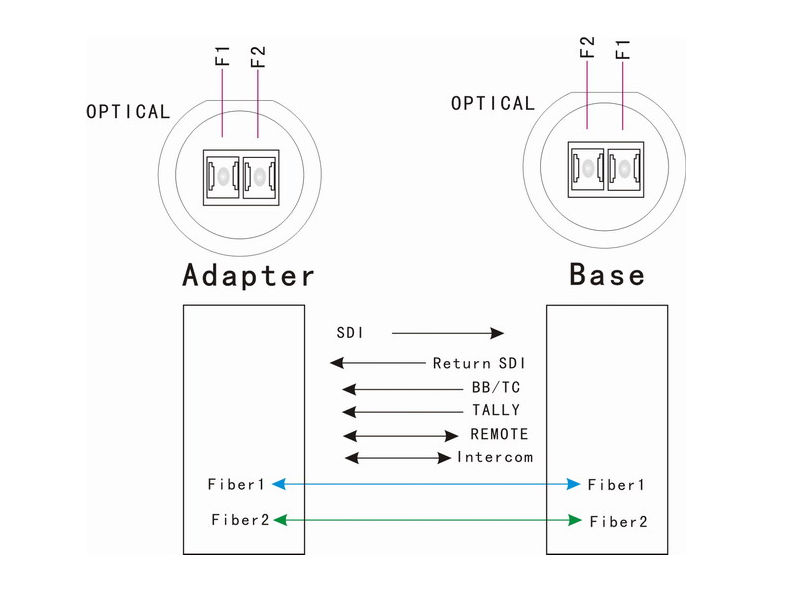

    HZT EFP to fiber for Panasonic camera includes one Camera  Adapter and one Base Station. The system transports 1-CH 3G/HD-SDI signal from the Panasonic AG-HPX370 or AG-HPX500 series camera to the Base Station, 1-CH Reverse 3G/HD-SDI, Genlock or BB/TC,Remote control for Panasonic camera(Panasonic’s 10 pin interface, base can be connected Panasonic RCU AJ-RC10G、ECU AG-EC4G),, intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally (One color or two colors can beselected). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
    Features
    ● 1-CH forward 3G-SDI and 1-CH reverse SDI
    ●  Handle all Pathological patterns
    ● Automaticcable equalization to ensure signal integrity
    ● 3G/HD/SD-SDIinput auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M,SMPTE 292M and SMPTE 259M
    ● Mic inputs with mute and pre-amps
    ● Headphone with volume up or down
    ● Remotecontrol (Sony/ Panasonic/JVC/Ikegami/ Datavideooptional)
    ● Tally LED+/-wet output or dry Contact Closure optional
    ● V-mount or A-mount (Anton/Bauer) battery plate optional
    ● Genlock or TC/BB is available
    ● Reverse PGM/IFB audio optional
    ● 10/100M Ethernet is optional
    ● Remote camera power supply (14.6V DC up to100 Watts), with insertion detection protection, Lemo SMPTE 304 or NeutrikOpticalCON DUO connector
    ● SMPTE hybrid cable 200+m

    Function List

    Optical: Wavelength: 1310nm / 1550nm / CWDM
    Output Power: -6~-1dBm
    Rx sensitivity: <-18dBm
    Transmission Distance: Remote power 100W,SMPTE hybrid cable 200+meter
    Optical connector: ODVA Duplex LC Connector, Camera end can be rotated 90 degrees
    SDI input /output: Signal format: SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate: 270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization: Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
    SDI interface: BNC 75 Ohm
    SDI Number: Camera Adapter Base Station
    1-CH 3G-SDI Video Input, 1-CH 3G-SDI Video Output 1-CH 3G-SDI Video Input, 2-CH 3G-SDI Video Output
    Genlock: Input/output impedance: BNC 75Ω (unbalance)
    Input/output voltage: 1.0Vp-p
    Differential Gain: < ±1.5%
    Differential Phase: < ±1%
    SNR: >60dB
    Genlock Number: Camera Adapter Base Station
    1-CH Genlock output 1-CH Genlock input, 1-CH Genlock Loop-out
    Intercom: Camera Adapter Base Station:
    Interface: 4-pin XLR(Male) / 5-pin XLR(Female)/ 3.5mm headset jack 3-pin XLR Female/Male: Party line audio for Clearcom / Altairaudio / Granitesound’s Intercom main station ,or Line level balanced audio input and output DB9(Male): Line level unbalanced audio input and output,
    Microphone: Mic inputs with mute and pre-amps None
    Headphone: with volume up or down None
    Tally: Camera Adaptor Base Station
    Interface: 4-pin or 3pin mini XLR DB9(Male)
    Input/Output: Dry Contact Closure or wet LED+/- (Output) Dry Contact Closure or TTL (Input)
    LED Indicator: On: short or LED on Off: open or LED off On: short to GND or TTL low, Off: open or TTL high
    Remote: Camera Adapter Base Station
    Interface: Panasonic’s 10 pin interface Panasonic’s 10 pin interface
    Data: RS422 /RS232/RS485 RS422 /RS232/RS485
    PGM: Camera Adapter Base Station
    Interface: 4-pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack 3-pin XLR Female: Line level balanced audio input
    Headphone: with volume up or down None
    Ethernet: Work mode: Full duplex/half duplex
    Data Rate: 10/100/1000Mbps(AUTO)
    connection terminal: RJ45
    Physical: Camera Optic Adaptor Base Station
    Input power: DC 11~19V AC90~240V
    Power consumption: <12W <12W
    Net weight: 1kg 3kg
    Appearance size: 188mm*116mm*45mm Standard 1U Rack Chassis
    Work Temp: -25°C to 55°C
    Storage Temp: -40°C to 85°C
    Humidity: 0 ~ 95% (non-condensing)
