Description

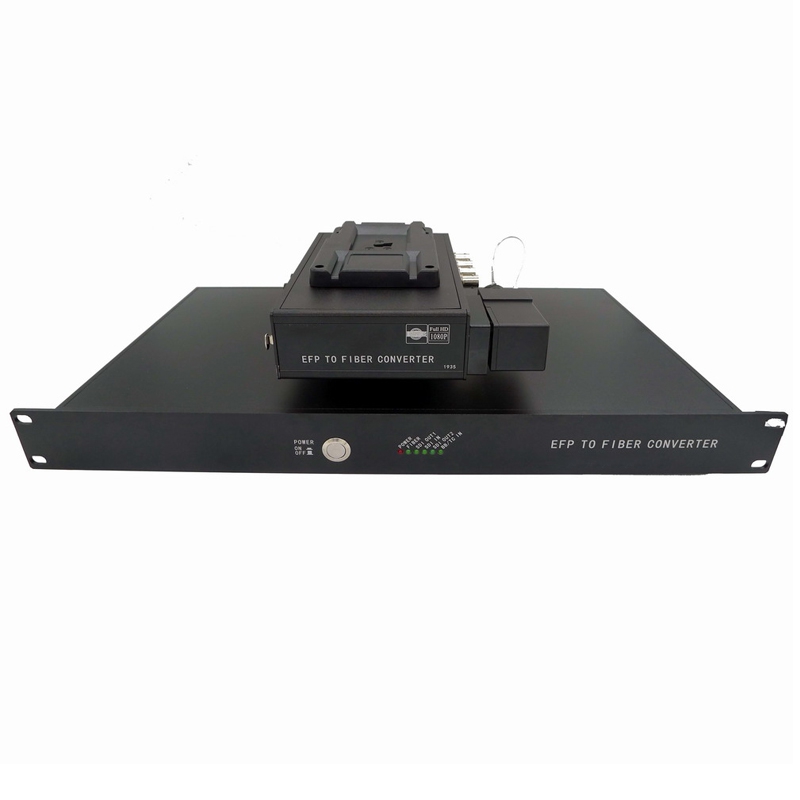

HZT Panasonic Camera EFP to Fiber Converter includes one Camera Adaptor and one Base Station. The system transports 2-CH 3G/HD-SDI signal from the camerato the Base Station, 1-CH reverse 3G/HD-SDI, Genlock or BB/TC, intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), 1-CH reverse PGM audio ,1-CH 10/100M Ethernet , Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features
● 2-CH forward 3G-SDI and 1-CH reverse SDI
● Handle all Pathological patterns
● Automaticcable equalization to ensure signal integrity
● 3G/HD/SD-SDIinput auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M,SMPTE 292M and SMPTE 259M
● Mic inputs with mute and pre-amps
● Headphone with volume up or down
● Remotecontrol (Sony/ Panasonic/JVC/Ikegami/ Datavideooptional)
● Tally LED+/-wet output or dry Contact Closure optional
● V-mount or A-mount (Anton/Bauer) battery plate optional
● Genlock or TC/BB is available
● Reverse PGM/IFB audio optional
● 10/100M Ethernet is optional
● Remote camera power supply (14.6V DC up to100 Watts), with insertion detection protection, Lemo SMPTE 304 or NeutrikOpticalCON DUO connector
● SMPTE hybrid cable 200+m

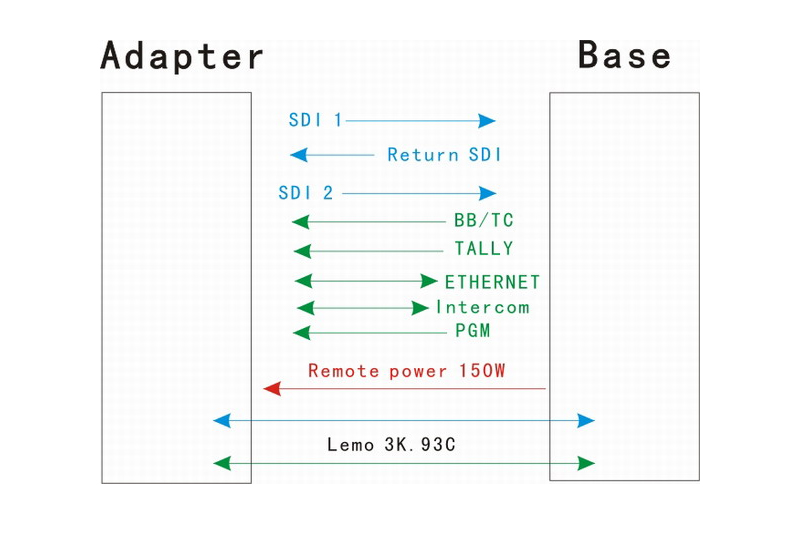

Function List
