Panasonic Camera EFP Fiber Converter

Products

Can‘t find what you‘re looking for?
Click here to talk directly to a member of the sales team.
FIND A SALES MANAGER

3G-SDI Video+ Return Video+ Remote+Tally+ Intercom+ Genlock to Fiber Converter For Panasonic Camera

  • Description
  • Technical data
  • Make an inquiry
    Description

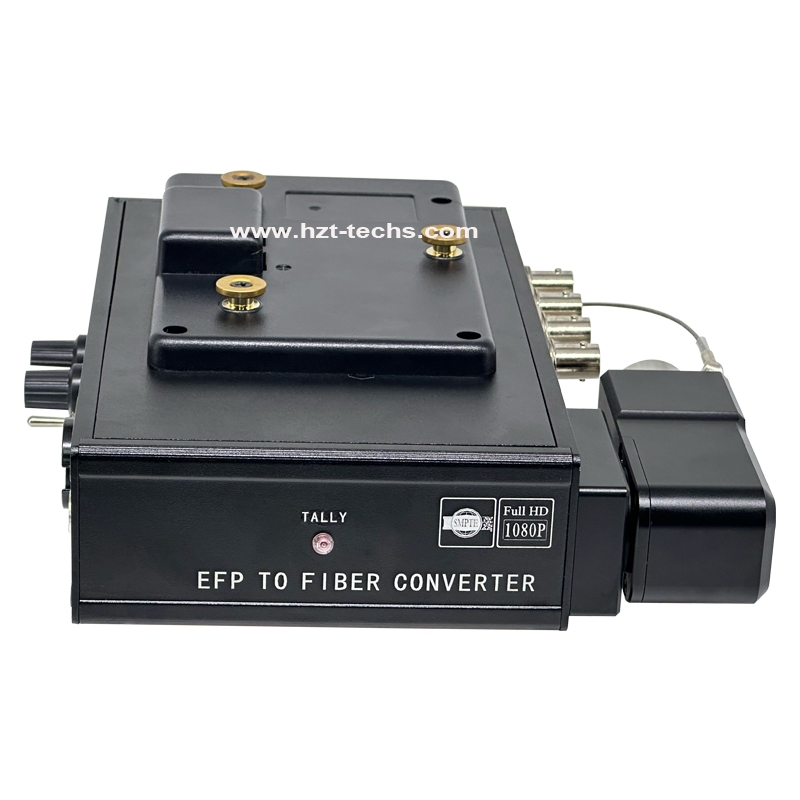

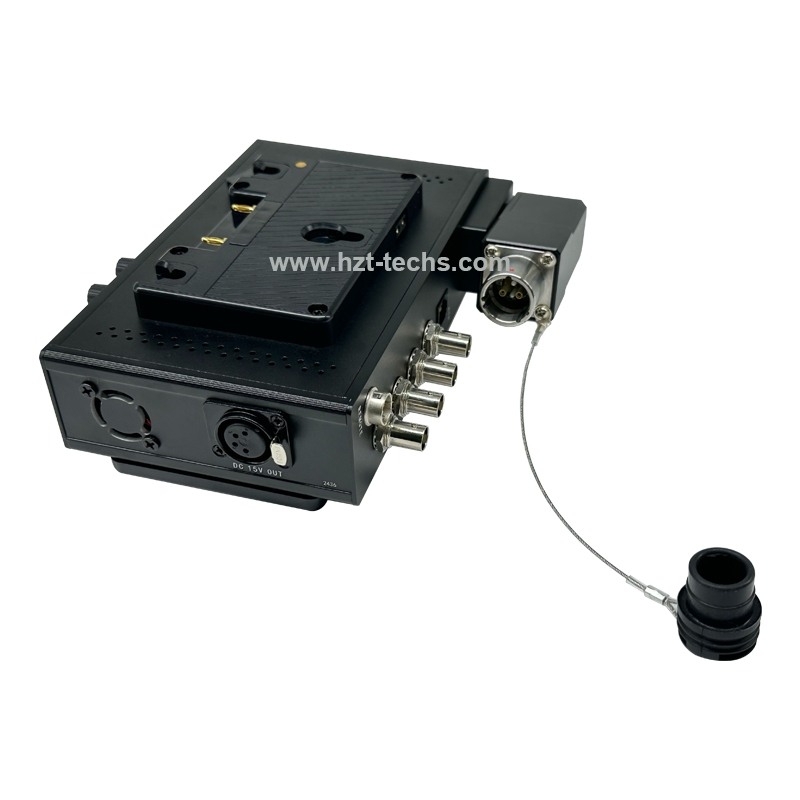

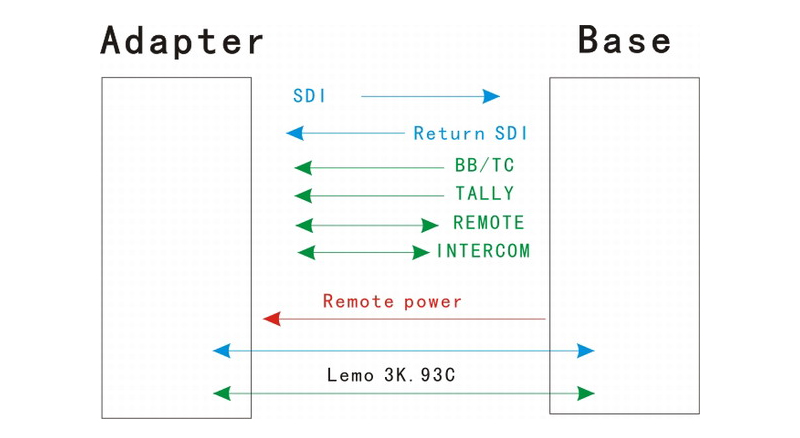

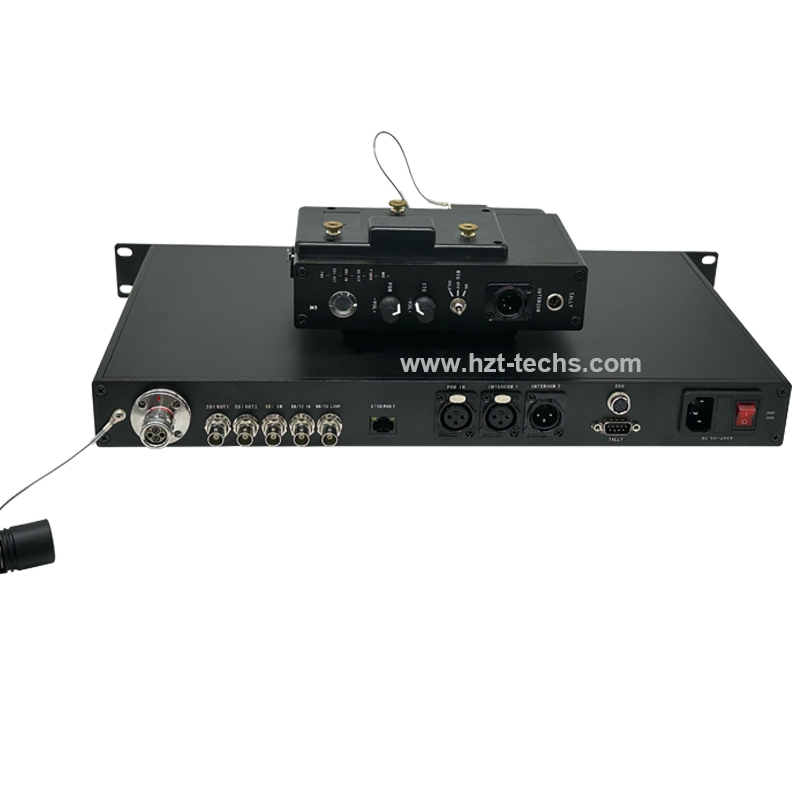

    EFP to fiber for Panasonic RCU includes one Camera  Adaptor and one  Base Station. The system transports 1-CH 3G/HD-SDI signal from the camera to the Base Station, 1-CH Reverse 3G/HD-SDI, Genlock or BB/TC, Remote control for Panasonic camera (Panasonic’s 10 pin interface, base can be connected Panasonic RCU AJ-RC10G、ECUAG-EC4G), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (14.6V DC up to 100Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
    Features
    ● 1-CH forward and 1-CH reverse 3G-SDI
    ●  Handle all Pathological patterns
    ● Automaticcable equalization to ensure signal integrity
    ● 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M,SMPTE 292M and SMPTE 259M
    ● Mic inputs with mute and pre-amps
    ● Headphone with volume up or down
    ● Remote control (Sony/ Panasonic/JVC/Ikegami/ Datavideooptional)
    ● Tally LED+/-wet output or dry Contact Closure optional
    ● V-mount or A-mount (Anton/Bauer) battery plate optional
    ● Genlock or TC/BB is available
    ● Reverse PGM/IFB audio optional
    ● 10/100M Ethernet is optional
    ● Remote camera power supply (14.6V DC up to100 Watts), with insertion detection protection, Lemo SMPTE 304 or Neutrik OpticalCON DUO connector
    ● SMPTE hybrid cable 200+m

    Function List

    Optical： Wavelength: 1310nm / 1550nm / CWDM
    Output Power: -6~-1dBm
    Rx sensitivity: <-18dBm
    Transmission Distance: Remote power 100W，SMPTE hybrid cable 200+meter
    Optical connector: Lemo SMPTE 304 / Neutrik OpticalCON DUO,
    Camera end can be rotated 90 degrees
    SDI input /output: Signal format: SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate: 270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization: Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
    SDI interface: BNC 75 Ohm
    SDI Number: Camera Adapter Base Station
    1-ch 3G-SDI Video Input, 1-ch 3G-SDI Video Output 1-ch 3G-SDI Video Input, 2-ch 3G-SDI Video Output
    Genlock
    /BB/TC:    		 Input/output impedance: BNC 75Ω (unbalance)
    Input/output voltage: 1.0Vp-p
    Differential Gain: < ±1.5%
    Differential Phase: < ±1%
    SNR: >60dB
    Genlock Number: Camera Adapter Base Station
    1-ch Genlock output 1-ch Genlock input, 1-ch Genlock Loop-out
    Intercom: Camera Adapter Base Station:
    Interface: 4pin XLR(Male) / 5pin XLR(Female)/ 3.5mm headset jack 3pin XLR Female/Male: Party line audio for Clearcom / Altairaudio / Granitesound’s Intercom main station ,or Line level balanced audio input and output DB9(Male): Line level unbalanced audio input and output,
    Microphone: Mic inputs with mute and pre-amps None
    Headphone: with volume up or down None

    Tally: Camera Adaptor Base Station
    Interface: 4-pin or 3pin mini XLR DB9(Male)
    Input/Output: Dry Contact Closure or wet LED+/- (Output) Dry Contact Closure or TTL (Input)
    LED Indicator: On: short or LED on Off: open or LED off On: short to GND or TTL low, Off: open or TTL high
    Remote： Camera Adapter Base Station
    Interface: Panasonic’s 10 pin interface Panasonic’s 10 pin interface
    Data: RS422 /RS232/RS485 RS422 /RS232/RS485
    PGM: Camera Adapter Base Station
    Interface: 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack 3pin XLR Female: Line level balanced audio input
    Headphone: with volume up or down None
    Ethernet： Work mode: Full duplex/half duplex
    Data Rate: 10/100/1000Mbps(AUTO)
    connection terminal: RJ45
    Physical: Camera Optic Adaptor Base Station
    Input power: DC 11~19V AC90~240V
    Power consumption: <12W <12W
    Net weight: 1kg 3kg
    Appearance size: 188mm*116mm*45mm Standard 1U Rack Chassis
    Work Temp: -25°C to 55°C
    Storage Temp: -40°C to 85°C
    Humidity: 0 ~ 95% (non-condensing)
