Fiber NO.
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Blue
|
orange
|
Green
|
brown
|
Grey
|
white
|
Red
|
black
|
Yellow
|
Purple
|
Pink
|
Aqua
|
Fiber Connector Assembly
|
Fiber Connector
|
LC, SC, ST, FC, MPO or Customized
|
|
|
Branch Length
|
Default: Each side 50cm, other length must be marked on the order.
|
|
|
Cable Length
|
1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m, 100m, 150m, 200m,300m or customized
|
|
|
Permit Flattening Force
|
3000N/100mm
|
|
|
Allowable tensile force
|
Long term:
|
600 N
|
|
Short term:
|
1200N
|
|
|
Bending Radius
|
Static”
|
10D /mm
|
|
Dynamic:
|
20D /mm
|
|
|
Storage Temperature
|
-20 ~ +70 ℃
|
|
|
Operating Temperature
|
-20 ~ +70 ℃
|
|
|
Items |

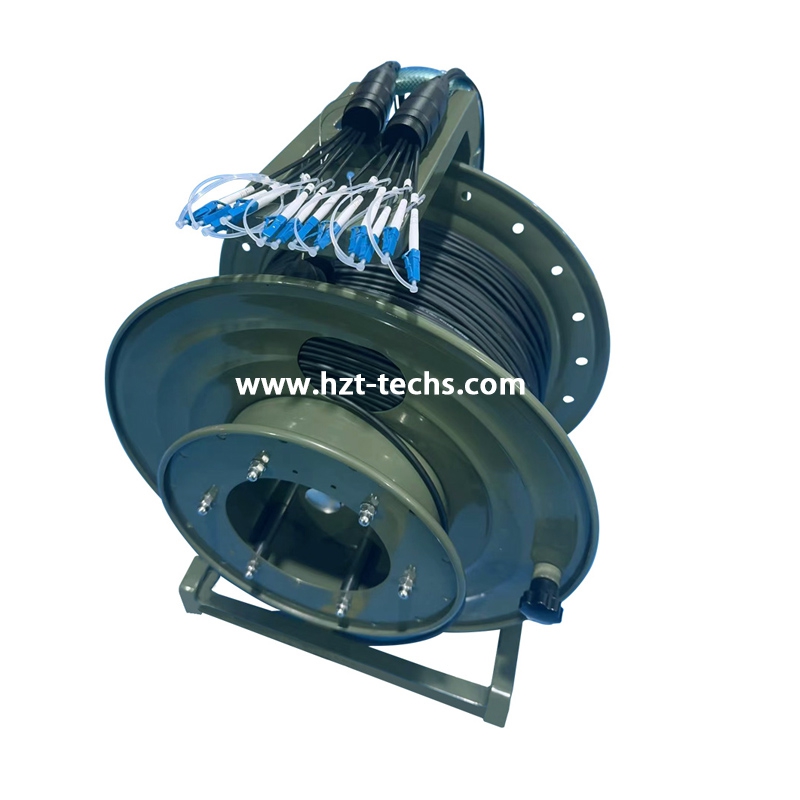

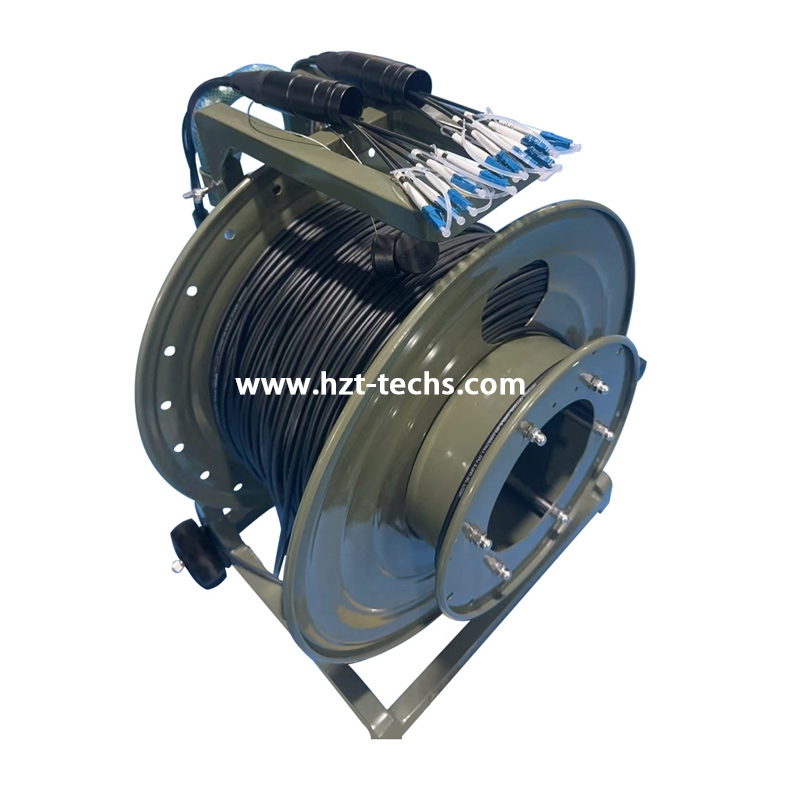

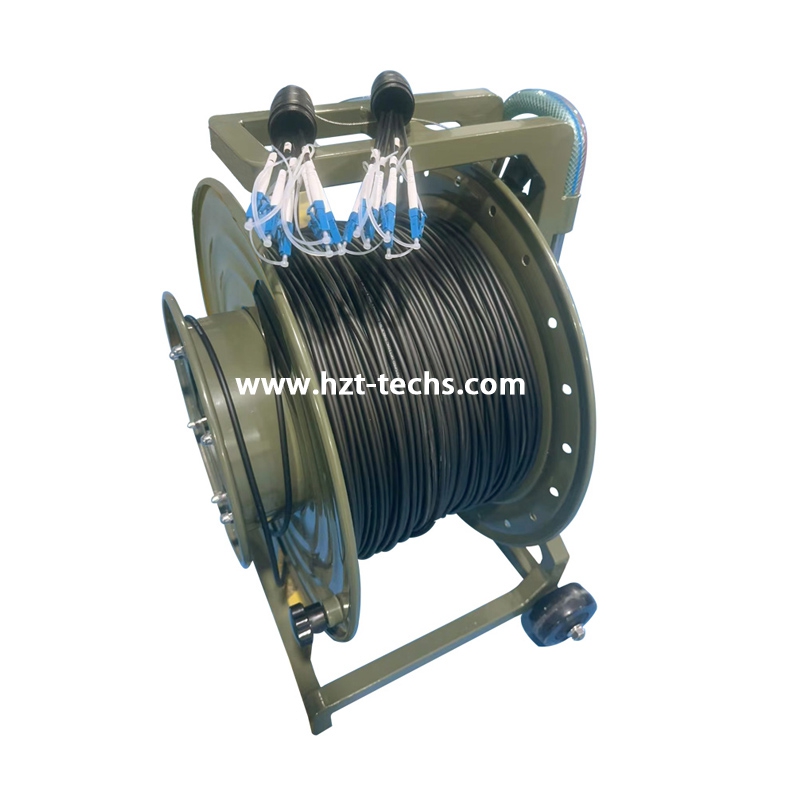

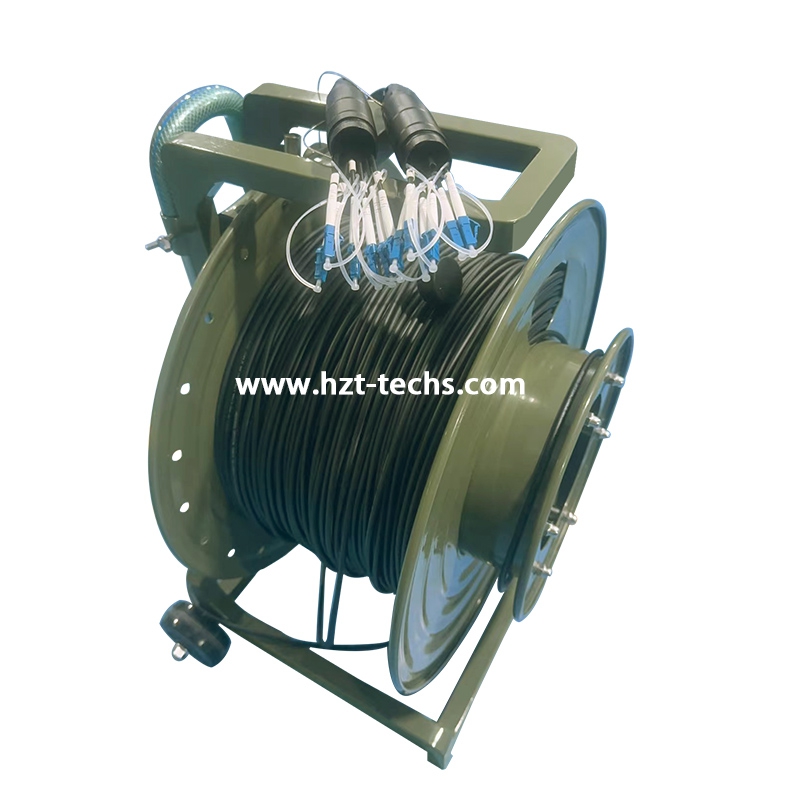

Tactical Cable Reel Types |
||||||
|
Picture |
|
|
|||||
|
Part Number |
HZT-235 |
HZT-310 |
HZT-380 |
HZT-03 |
HZT-05 |
HZT-10 |
|
|
Reel Material |
Plastic |
Plastic |
Plastic |
Metal |
Metal |
Metal |
|
|
Wheels |
No |
No |
No |
Yes |
Yes |
Yes |
|
|
Reel Dimensions |
255*220*345mm (W x D x H) |
365*295*425mm (W x D x H) |
405*310*510mm (W x D x H) |
510*350*480mm (W x D x H) |
570*360*520mm (W x D x H) |
570*470*520mm (W x D x H) |
|
|
Package Dimensions |
255*220*345mm |
365*295*425mm |
405*310*510mm |
570*410*540mm |
600*420*580mm |
600*560*580mm |
|
|
Reel Max. Cable Length |
3.0mm |
269 |
628M |
1000M |
1000M |
1500M |
3000M |
|
5.0mm |
97M |
226M |
300M |
300M |
500M |
1000M |
|
|
9.0mm |
20M |
70M |
135M |
100M |
150M |
350M |
|
|
Reel Gross Weight |
|||||||
 |
