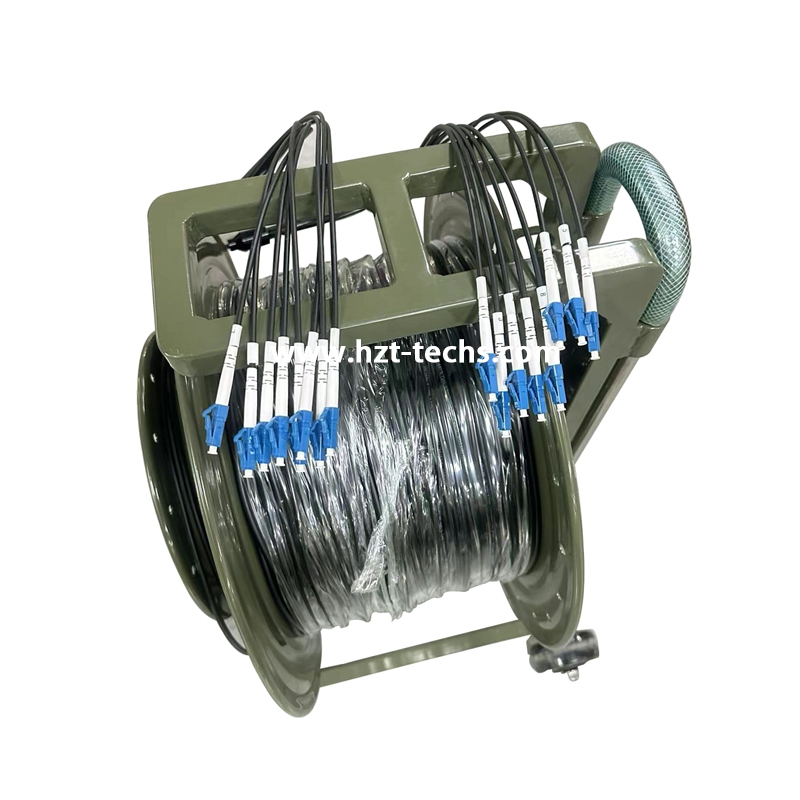

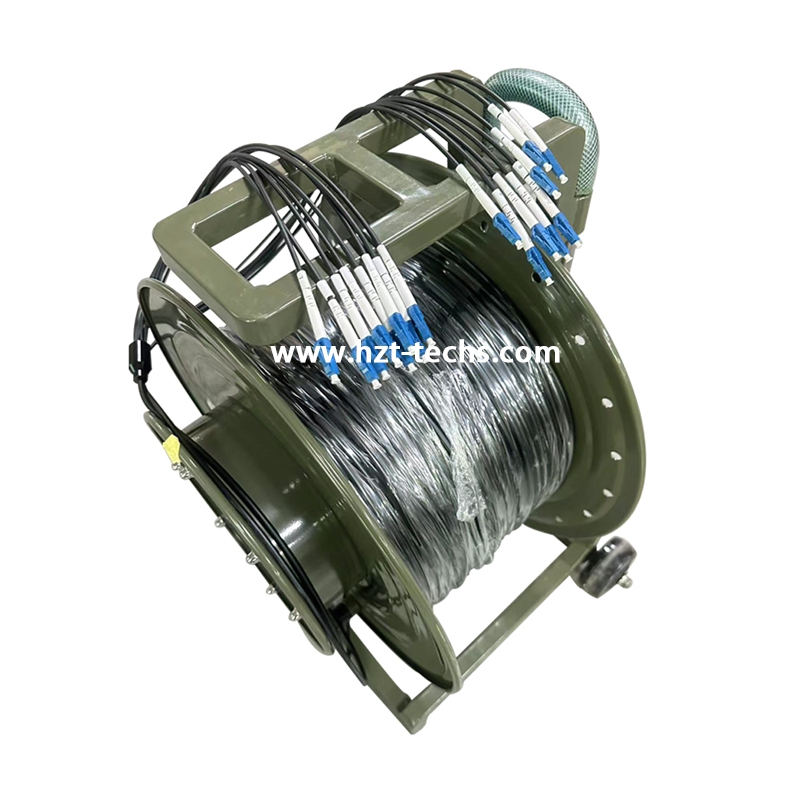

8 Core LC-LC Tactical Flexible Fiber Optical Cable

  • Description
  • Technical data
  • Make an inquiry
    Cable Description
    Outdoor Tactical Armored Flexible Cable are designed with a Ruggedized, crush resistant, durable jacket for superior flexibility and abrasion resistance across a wide temperature range. Single loose tube up to 12 250micron fibers with Aramid yarns strength member.Then in the helical tube and surrounded with metal braiding and TPU jacket for high crush resistance for harsh outdoor application.

    It is ideal for using in communication, broadcast and pro audio applications. Additionally, extendable pull rod and pulley
    allows operators to easily rotate reel in deployment or take-up situations and easy transportation and deployment.

    Cable Features
    ●  Tight buffer fiber ease of stripping.
    ●  The jacket is anti-aging, anti-abrasion.
    ●  Kevlar improves the tensile strength and mechanical intensity.
    ●  Kevlar make cable have excellent tensile strength.
    ●  All dielectric structure protect it from electromagnetic influence.
    ●  Good mechanical and environmental characteristics.
    ●  Military communication system cable distribution.
    ●  Excellent for use in deployment/retrieval applications.

    Cable Structure

    Optical Fiber Color
    Fiber NO.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    Color
    Blue
    orange
    Green
    brown
    Grey
    white
    Red
    black
    Yellow
    Purple
    Pink
    Aqua

    Fiber Connector Assembly

    Fiber Connector
    LC, SC, ST, FC, MPO or Customized
    Branch Length
    Default: Each side 50cm, other length must be marked on the order.
    Cable Length
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m, 100m, 150m, 200m,300m or customized
    Permit Flattening Force
    3000N/100mm
    Allowable tensile force
    Long term:
    600 N
    Short term:
    1200N
    Bending Radius
    Static”
    10D /mm
    Dynamic:
    20D /mm
    Storage Temperature
    -20 ~ +70 ℃
    Operating Temperature
    -20 ~ +70 ℃

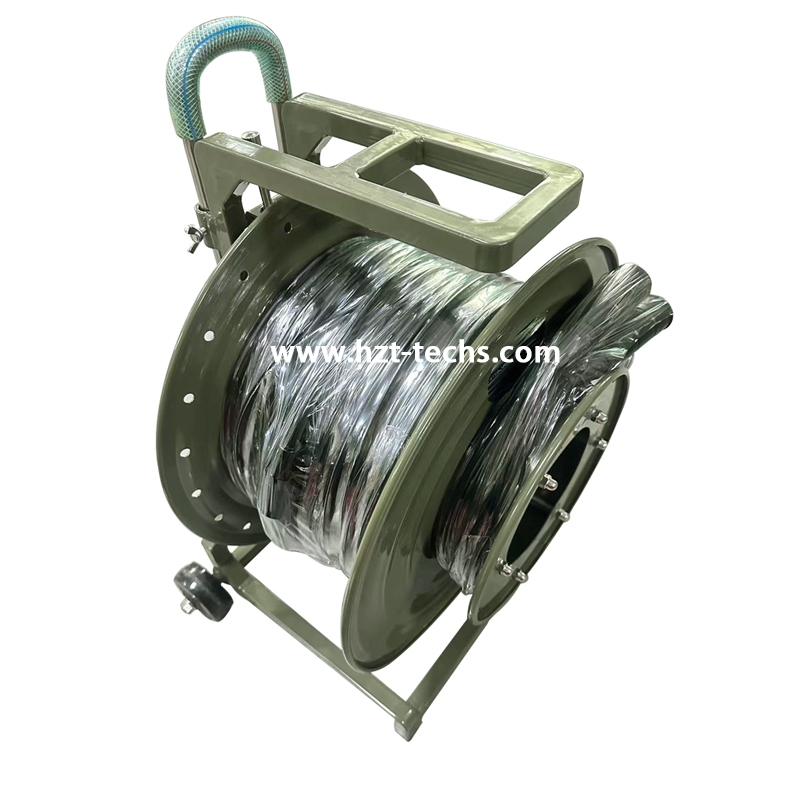

    Reel specification

    Items

    Tactical Cable Reel Types







    Part Number

    HZT-235

    HZT-310

    HZT-380

    HZT-03

    HZT-05

    HZT-10

    Reel Material

    Plastic

    Plastic

    Plastic

    Metal

    Metal

    Metal

    Wheels

    No

    No

    No

    Yes

    Yes

    Yes

    Reel Dimensions

    255*220*345mm

    (W x D x H)

    365*295*425mm

    (W x D x H)

    405*310*510mm

    (W x D x H)

    510*350*480mm

    (W x D x H)

    570*360*520mm

    (W x D x H)

    570*470*520mm

    (W x D x H)

    Package Dimensions

    255*220*345mm

    365*295*425mm

    405*310*510mm

    570*410*540mm

    600*420*580mm

    600*560*580mm

    Reel Max.

    Cable Length

    3.0mm

    269

    628M

    1000M

    1000M

    1500M

    3000M

    5.0mm

    97M

    226M

    300M

    300M

    500M

    1000M

    9.0mm

    20M

    70M

    135M

    100M

    150M

    350M

    Reel Gross Weight
