4 Core LC-LC SM/MM Tacitcal Armored Fiber Optical Cable With Fixed LC on the reel

  • Description
  • Technical data
  • Make an inquiry
    Product Overview:
    Our innovative 4-core tactical armored fiber optic cable is engineered for rapid, reliable, and robust deployment in demanding environments. This pre-terminated cable solution features a unique design where one end of the LC connectors is permanently fixed and integrated onto the storage reel. This eliminates the need for handling the entire cable length during connection, significantly enhancing operational efficiency and protecting the critical fiber interfaces from damage. Simply deploy the free end and connect it using a standard, short LC jumper cable.

    Key Features & Benefits:
    Integrated Fixed LC Connectors on Reel:

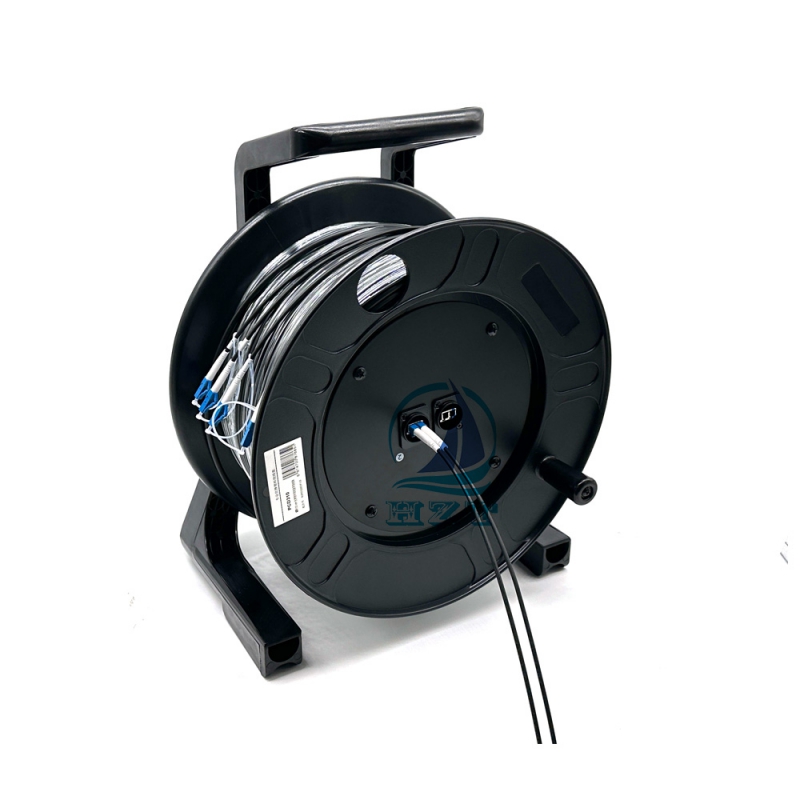

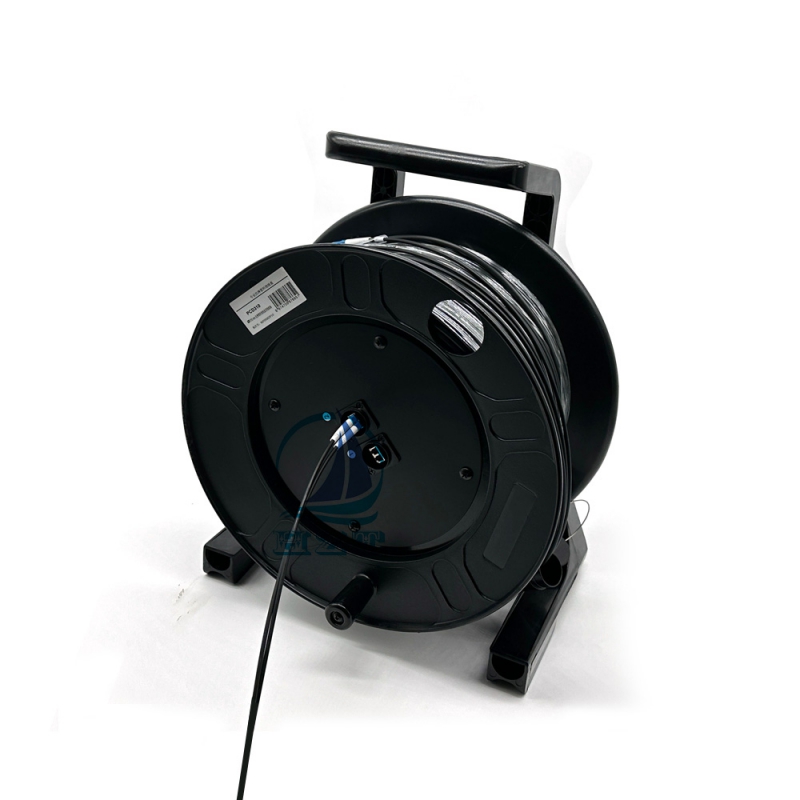

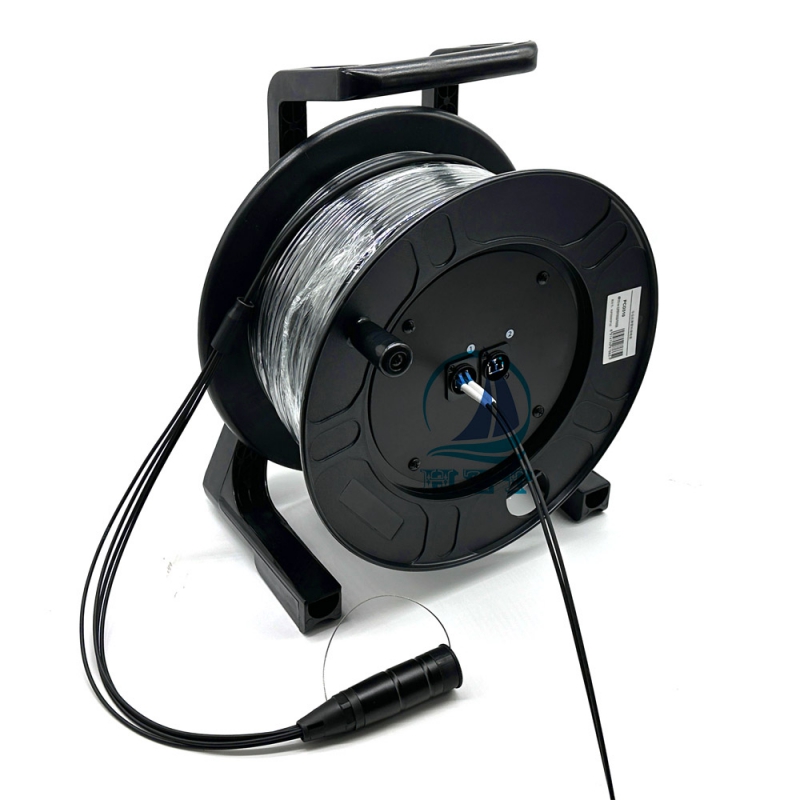

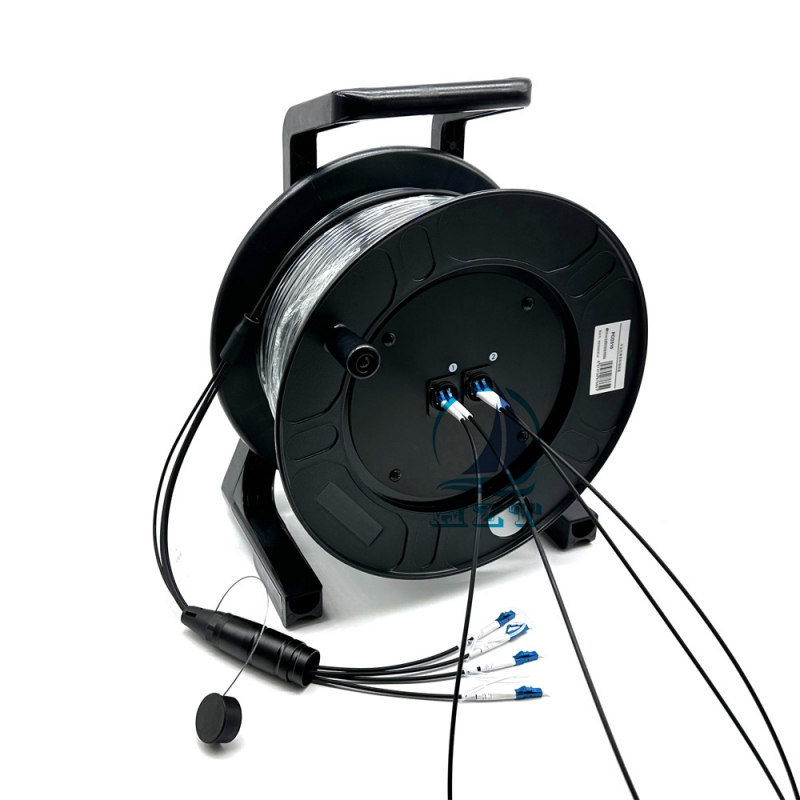

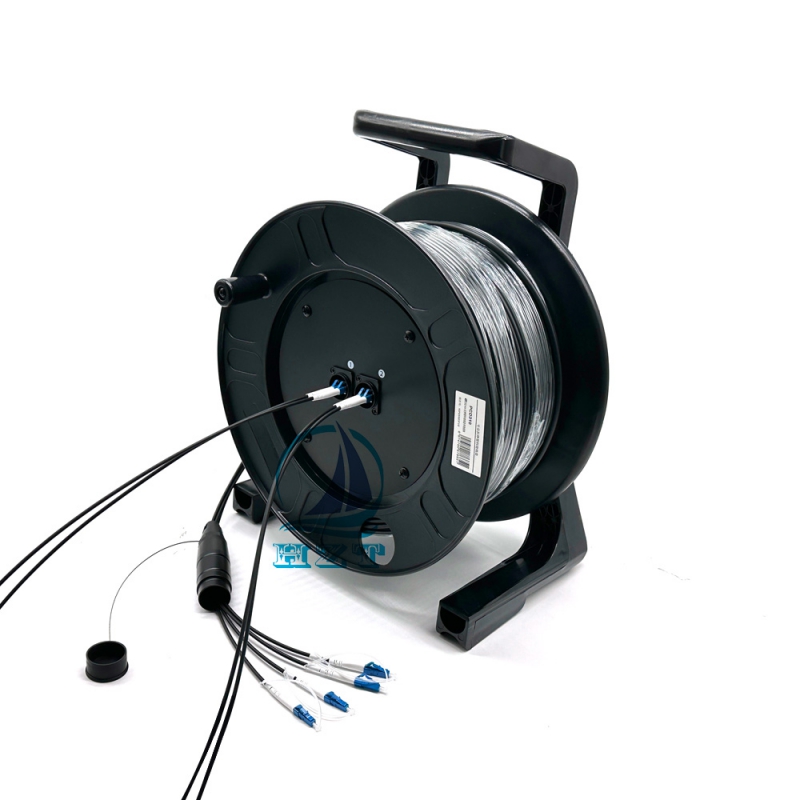

    ● The Core Innovation: One set of four LC connectors (duplex style) is securely housed and protected within a dedicated compartment on the cable reel itself.
    ● Reduces Connector Damage: This design is the primary solution to prevent broken clips and contaminated end-faces. By fixing this end, it is never handled, dropped, or exposed to the field environment, drastically reducing the risk of physical damage from repeated plugging and unplugging.
    ● Simplified Field Operation: In the field, users only need to unspool the cable to the required length. To connect, a short, inexpensive LC-LC jumper patch cord is used to bridge the fixed connector on the reel to the target equipment. This keeps the valuable tactical cable safe while the more easily replaceable jumper bears the brunt of wear and tear.
    Robust Tactical Design:
    ● Heavy-Duty Armoring: The cable is encased in a strong, yet flexible, non-kinking armored jacket. This provides superior protection against crushing, abrasion, rodent bites, and other physical stresses encountered in tactical, industrial, or outdoor settings.
    ● Weather & Chemical Resistance: The outer jacket is designed to withstand moisture, temperature extremes, oils, and solvents, ensuring performance in harsh conditions.
    High-Performance Optical Connectivity:
    ● Available for SM/MM: Offered in both Single-mode (OS2) and Multimode (OM3/OM4) versions to suit various application needs for long-haul or high-bandwidth short-range communication.
    ● Low Insertion Loss: Features premium-grade LC connectors with zirconia ceramic ferrules to ensure low signal loss and high performance across all four channels.
    ● Pre-Terminated & Tested: Each cable is 100% factory pre-terminated, polished, and optically tested, guaranteeing performance and saving valuable installation time.
    Deployment-Reel System:
    ● The cable is supplied on a heavy-duty, portable reel with a sturdy handle for easy transport and deployment.
    ● The integrated connector housing is clearly marked and designed for quick access while providing excellent physical protection for the fixed connectors during transit and storage.

    Technique Parameter

    Items
    Parameter
    Product Name:
    4 Core LC/UPC-LC/UPC Tactical Armored Cable
    Fiber Count:
    4 Core = 4 Fiber
    Fiber Type:
    G657A1, (can customized G657A2, OM1, OM2, OM3, OM4 and OM5)
    Connector Type:
    LC to Fixed LC(Fixed on the reel.)
    Polish Type:
    UPC to UPC,  (APC optional)
    Armored Spiral Steel Tube:
    Material:
    SUS204
    Outer Diameter:
    2.8±0.2mm
    Steel tube Thickness:
    0.32±0.05 mm
    Aramid Yarns:
    1000 Den
    Outer Jacket:
    Material:
    TPU
    Thickness:
    1.0±0.10mm
    Cable nominal diameter(mm):
    5.0±0.20mm
    Net weight:
    35±2Kg
    Protective Cover:
    Supported.
    Dustproof plug:
    Pull-ring dust plug
    Reel :
    Plastic Reel or metal reel.(Short length don’t need reel.)
    Cable length:
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m, 100m, 150m,
    200m,300m,500m,1000m or customized
    Permit Flattening Force:
    3000N/100mm
    Allowable tensile force:
    Long term:
    600 N
    Short term:
    1200N
    Bending Radius:

    Static:
    10D /mm
    Dynamic:
    20D /mm
    Storage Temperature:
    -20 ~ +70 ℃
    Operating Temperature:
    -20 ~ +70 ℃

      Reel Specification

      More reel information please move to     https://www.hzt-techs.com/cable-reel/.
