Fiber NO.
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Blue
|
orange
|
Green
|
Brown
|
Grey
|
White
|
Red
|
Black
|
Yellow
|
Purple
|
Pink
|
Aqua
|
|
Items
|
Parameter
|
||||
|
Product Name:
|

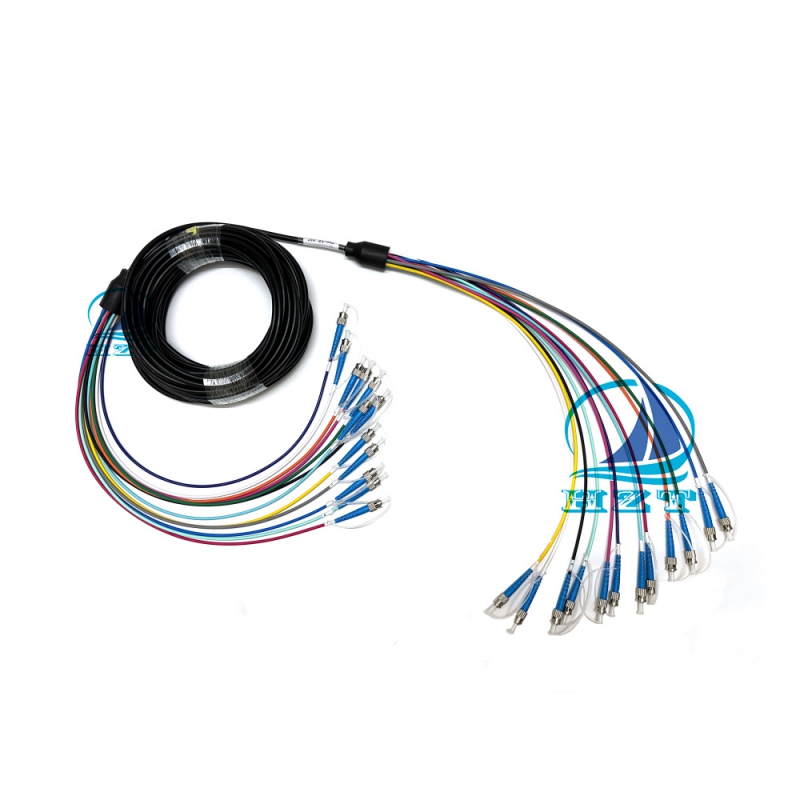

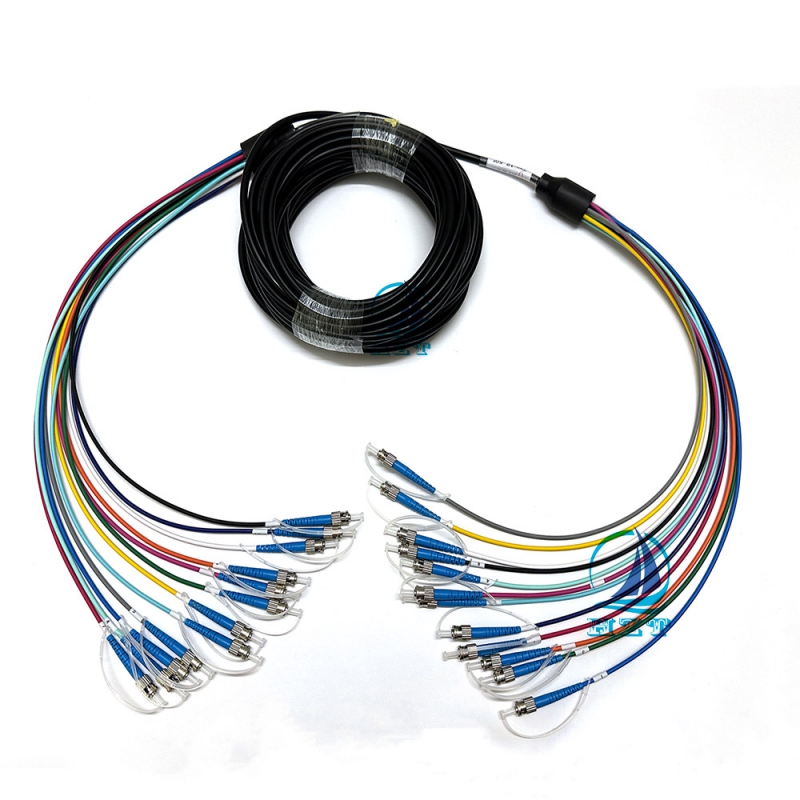

12Core ST/UPC-ST/UPC Tactical Armored
|
||||
|
Fiber Count:
|
12 Core (1 Core = 1 Fiber)
|
||||
|
Fiber Type:
|
G657A1, (can customized G657A2, OM1, OM2, OM3, OM4 and OM5)
|
||||
|
Connector Type:
|
ST to ST
|
||||
|
Polish Type:
|
UPC to UPC, (APC optional)
|
||||
|
Armored Spiral Steel Tube:
|
Material:
|
SUS204
|
|||
|
Outer Diameter:
|
3.8±0.1mm
|
||||
|
Steel tube Thickness:
|
0.35±0.05 mm
|
||||
|
Aramid Yarns:
|
1000 Den
|
||||
|
Outer Jacket:
|
Material:
|
TPU
|
|||
|
Thickness:
|
1.0±0.10mm
|
||||
|
Cable nominal diameter(mm):
|
6.0±0.20mm
|
||||
|
Net weight:
|
45±2Kg
|
||||
|
Protective Cover:
|
Supported.
|
||||
|
Breakout Cable Color
|
12 Colors, MOQ: 100 PCS
|
||||
|
Fan-out Cable Length
|
Default:0.5m, other length is available
|
||||
|
Dustproof plug:
|
Pull-ring dust plug
|
||||
|
Reel :
|
Plastic Reel or metal reel.(Short length don’t need reel.)
|
||||
|
Cable length:
|
1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m, 100m, 150m,
200m,300m,500m,1000m or customized
|
||||
|
Permit Flattening Force:
|
3000N/100mm
|
||||
|
Allowable tensile force:
|
Long term:
|
600 N
|
|||
|
Short term:
|
1200N
|
||||
|
Bending Radius:
|
Static:
|
10D /mm
|
|||
|
Dynamic:
|
20D /mm
|
||||
|
Storage Temperature:
|
-20 ~ +70 ℃
|
||||
|
Operating Temperature:
|
-20 ~ +70 ℃
|
||||
 |
