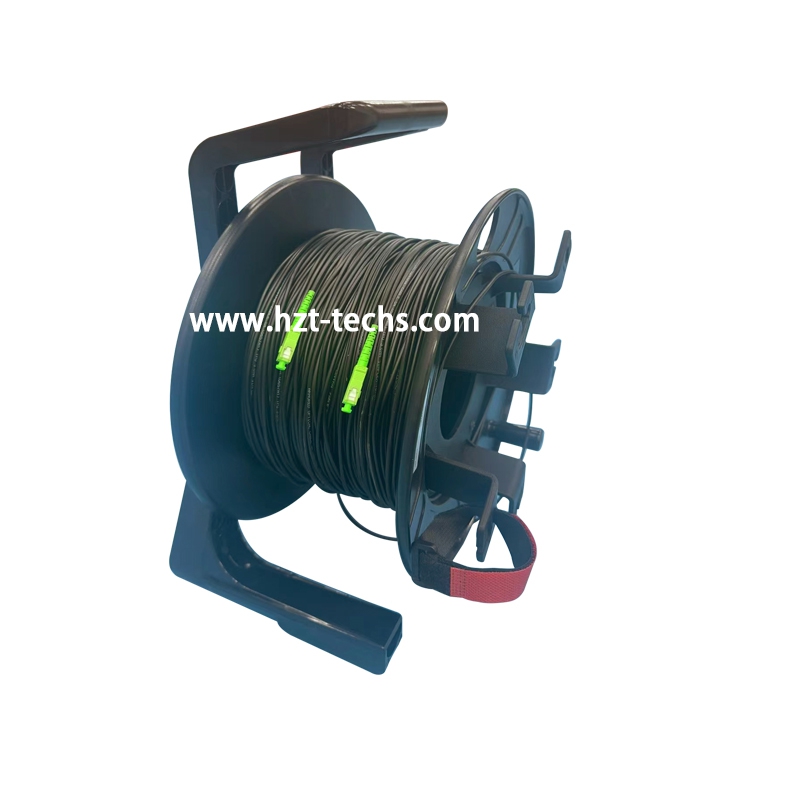

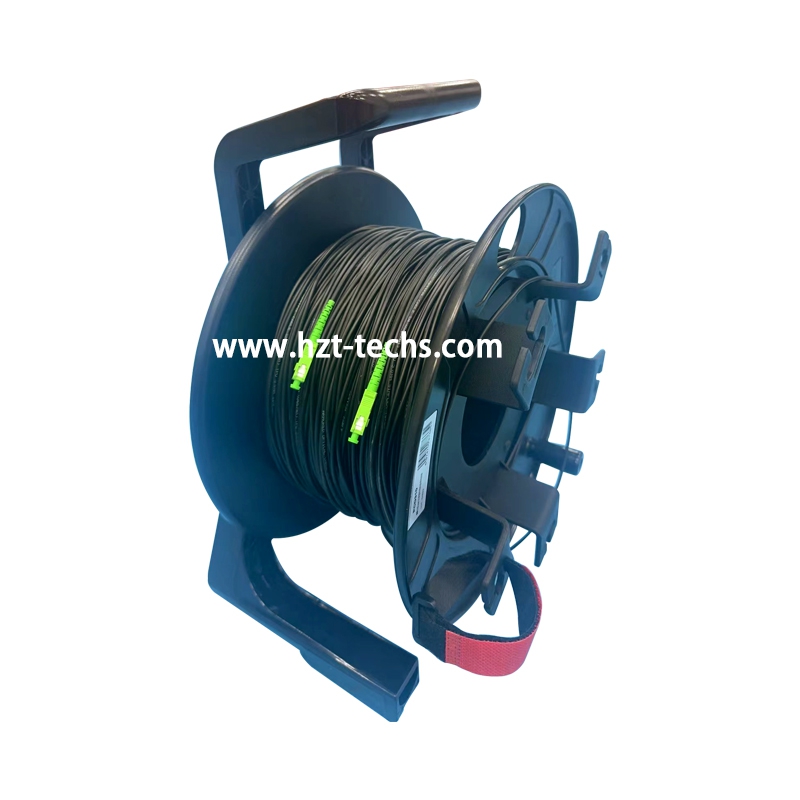

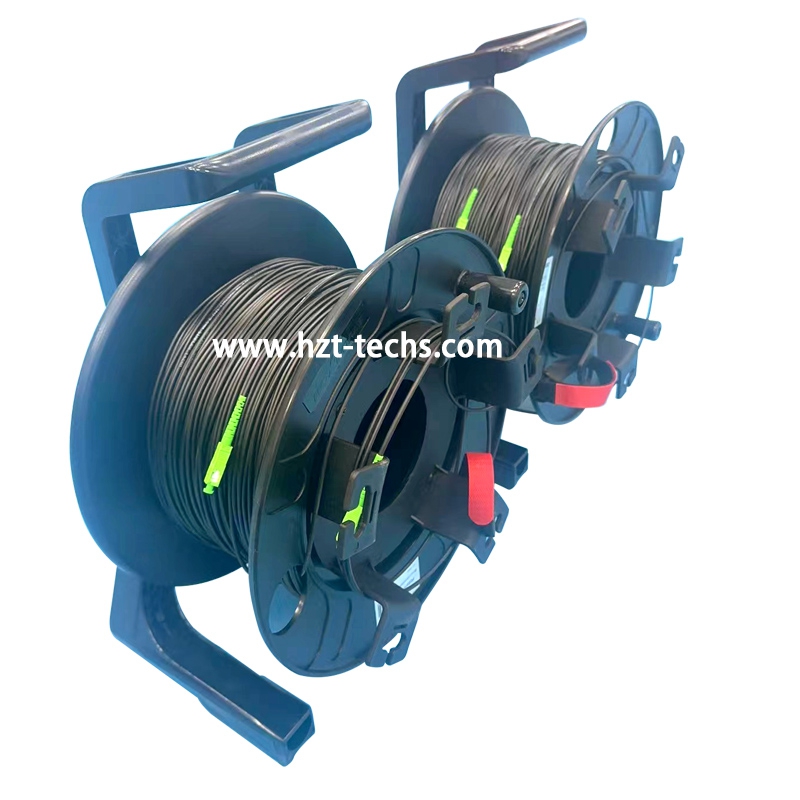

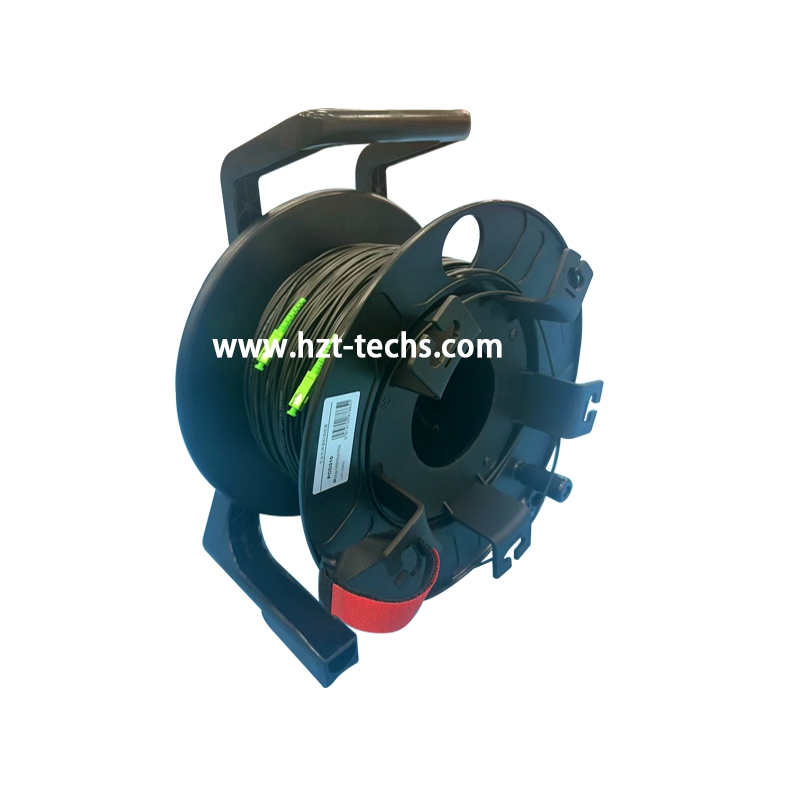

1 Core SC/APC-SC/APC Tactical Armored Fiber Cable

  • Description
  • Technical data
  • Make an inquiry
    Cable Description
    Outdoor Tactical Armored Flexible Cable are designed with a Ruggedized, crush resistant, durable jacket for superior flexibility and abrasion resistance across a wide temperature range. Single loose tube up to 12 250micron fibers with Aramid yarns strength member.Then in the helical tube and surrounded with metal braiding and TPU jacket for high crush resistance for harsh outdoor application.

    It is ideal for using in communication, broadcast and pro audio applications. Additionally, extendable pull rod and pulley
    allows operators to easily rotate reel in deployment or take-up situations and easy transportation and deployment.

    Cable Features
      Tight buffer fiber ease of stripping.
      The jacket is anti-aging, anti-abrasion.
      Kevlar improves the tensile strength and mechanical intensity.
      Kevlar make cable have excellent tensile strength.
      All dielectric structure protect it from electromagnetic influence.
      Good mechanical and environmental characteristics.
      Military communication system cable distribution.
      Excellent for use in deployment/retrieval applications.

    Cable Structure


    Optical Fiber Color
    Fiber NO.
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    Color
    Blue
    orange
    Green
    brown
    Grey
    white
    Red
    black
    Yellow
    Purple
    Pink
    Aqua

    Technique Parameter

    Items
    Parameter
    Product Name:
    1 Core SC/APC-SC/APC Tactical Armored Cable
    Fiber Count:
    1 Core = 1 Fiber
    Fiber Type:
    G657A1, (can customized G657A2, OM1, OM2, OM3, OM4 and OM5)
    Connector Type:
    SC to SC
    Polish Type:
    APC to APC,  (UPC optional)
    Armored Spiral Steel Tube:
    Material:
    SUS204
    Outer Diameter:
    2.8±0.2mm
    Steel tube Thickness:
    0.32±0.05 mm
    Aramid Yarns:
    1000 Den
    Outer Jacket:
    Material:
    TPU
    Thickness:
    1.0±0.10mm
    Cable nominal diameter(mm):
    5.0±0.20mm
    Net weight:
    35±2Kg
    Protective Cover:
    Supported.
    Dustproof plug:
    Pull-ring dust plug
    Reel :
    Plastic Reel or metal reel.(Short length dont need reel.)
    Cable length:
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m, 100m, 150m,
    200m,300m,500m,1000m or customized
    Permit Flattening Force:
    3000N/100mm
    Allowable tensile force:
    Long term:
    600 N
    Short term:
    1200N
    Bending Radius:

    Static:
    10D /mm
    Dynamic:
    20D /mm
    Storage Temperature:
    -20 ~ +70 ℃
    Operating Temperature:
    -20 ~ +70 ℃

      Reel Specification

      More reel information please move to
    https://www.hzt-techs.com/cable-reel/.
