Mini ADSS Aerial Optic Fiber cable ASU Overhead Fiber Optical Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

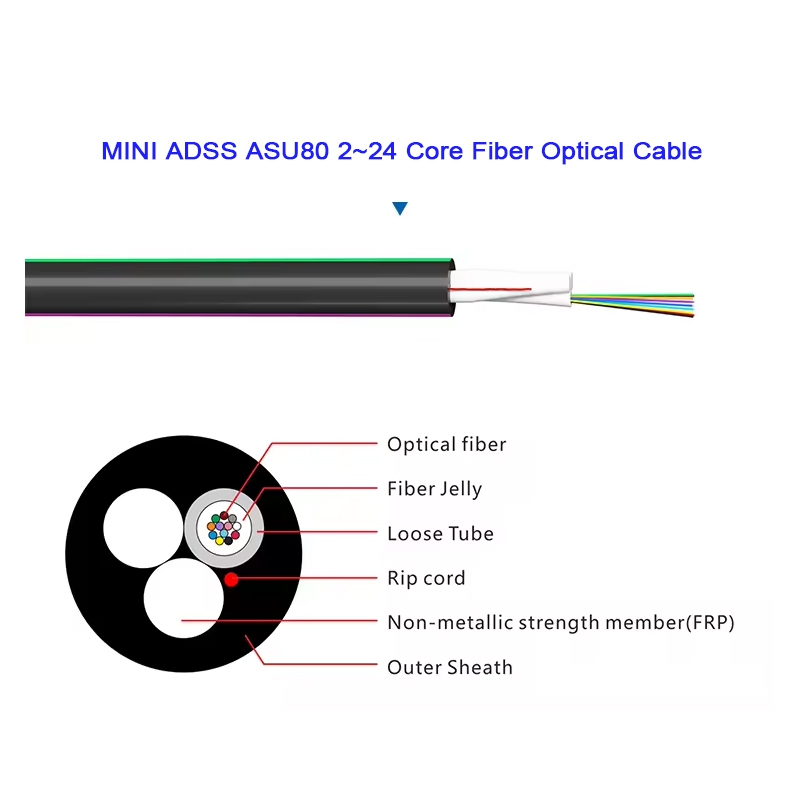

    ASU Fiber Optic Cable The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.FRP rods  filled . The cable is completed with a polyethylene (PE) sheath.
    The 2~24 Fibers ASU Cable(AS80 and AS120) is a Self-Supported Optical Cable, It was developed to provide the connection between devices, being indicated for installation in urban and rural networks, in spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strength member as a traction element, thus avoiding electrical discharges in the networks. It is easy to handle and install, eliminating the need to use strings or grounding.
    It is mainly used in the communication route of overhead high voltage transmission system, and can also be used in the communication line under the environment such as lightning zone and long distance overhead line.
    Compared with the stranded ADSS fiber optic cable, This fiber optic cable can not only save the use of imported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overall structure size. Compared with the common 150-meter span ADSS-24 fiber optic cable , the price of the This cable of the same specification can be reduced by 20% or more.
    Features:
    ● FRP Filled element make cable hight tension
    ● Tube filling gel
    ● Loose tube stranded
    ● PE sheath outdoor cable
    ● Anti water yean protect cable from water
    Application:
    ● Outdoor aerial and duct application;
    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth(Class A)
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm



    Technique Parameter
    Item
    Parameters
    Fiber Count
    12 Fibers
    Span
    80M (100M or 120Meter)
    Cable Diameter(mm)
    6.6±0.2
    Cable weight
    42KG/KM
    Colored Coating Fiber
    Dimension
    250mm±15um
    Color
    Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Violet、Pink、Aqua
    Loose tube
    Dimension
    2.0mm
    Material
    PBT
    Color
    White
    Strength Member
    Dimension
    2.0mm
    Material
    FRP
    Outer Jacket
    Material
    PE
    Color
    Black
    Tensile Strength
    Long term
    1000N
    Short term
    1500N
    Crush resistance
    Long term
    500N/100m
    Short term
    1000N/100m
    Installation Temperature
    -0℃ to + 60℃
    Operating Temperature
    -20℃ to + 70℃
    Storage Temperature
    -20℃ to + 70℃
