Aerial Self-supporting 2~144 Core GYTC8S Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, OM1, OM2, OM3 OR OM4.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

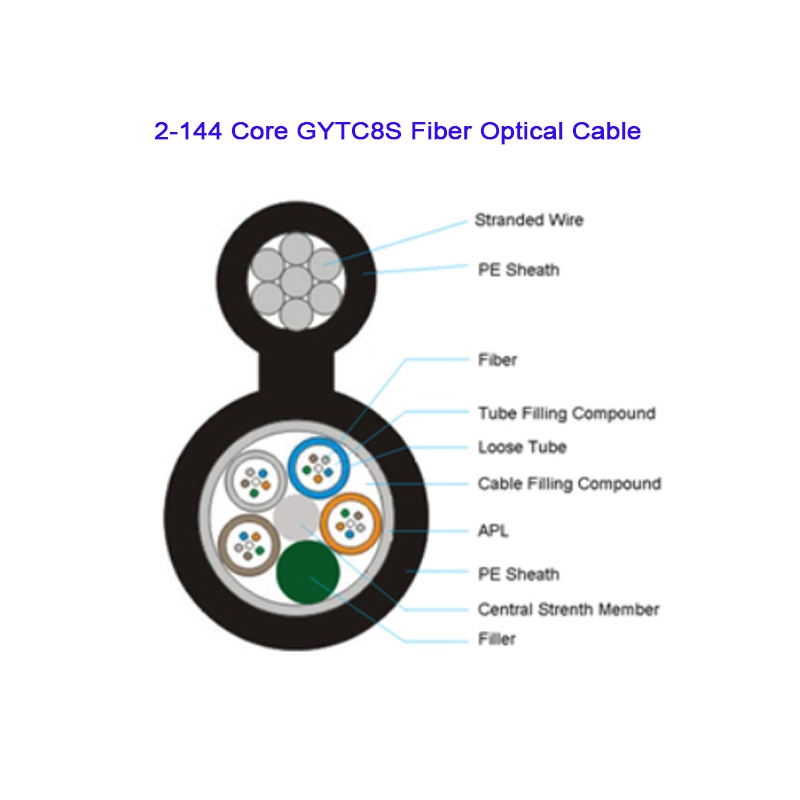

    In the GYTC8S cable. single-modelmultimode fibers are posioned in the loose tubes, while the loose tubes strand toaether around metalic central strenoth membelinto a compact and circular cable core, and the water-blocking matenials are distnibuted into interstices ofit. After a PSP is appied around the cable core,this par ofcable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
    Application:
    Self supporting Aerial.
    ● High performance optical network operating
    ● High speed optical routes in buildings (FTTX).
    ● All types of fiber cables with different structures.
    ● Temperature Range:
    ● Operating :-40°C to +70°C
    ● Storage :-40°C to +70°C
    Characteristic:
    ● Excellent mechanical and temperature performance.
    ● Critical protection to fibers.
    Standards:
    Comply with stand YD/T 901-2009 as well as lEC 60794-1
    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth(Class A)
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm
    -


      Technique Parameter

    Fiber Count
    Tubes
    Fillers
    Cable Diameter(mm)
    Cable weight(KG/KM)
    Tensile Strength
    Long/Short Term N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static /Dynamic
    mm

    GYTC8S-2~6
    2~6
    4
    9.5×18.3
    218
    600/1500
    300/1000
    10D/20D
    GYTC8S-8~12
    8~12
    3
    9.5×18.3
    218
    600/1500
    300/1000
    10D/20D
    GYTC8S-14~18
    14~18
    2
    9.5×18.3
    218
    600/1500
    300/1000
    10D/20D
    GYTC8S-20~24
    20~24
    1
    9.5×18.3
    218
    600/1500
    300/1000
    10D/20D
    GYTC8S-26~30
    26~30
    0
    9.5×18.3
    218
    600/1500
    300/1000
    10D/20D
