Aerial Self-supporting GYXTC8S 2~24 Core Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core
● Fiber Type:  G652D, G657A1
● Jacket Material: PE,HDPE
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

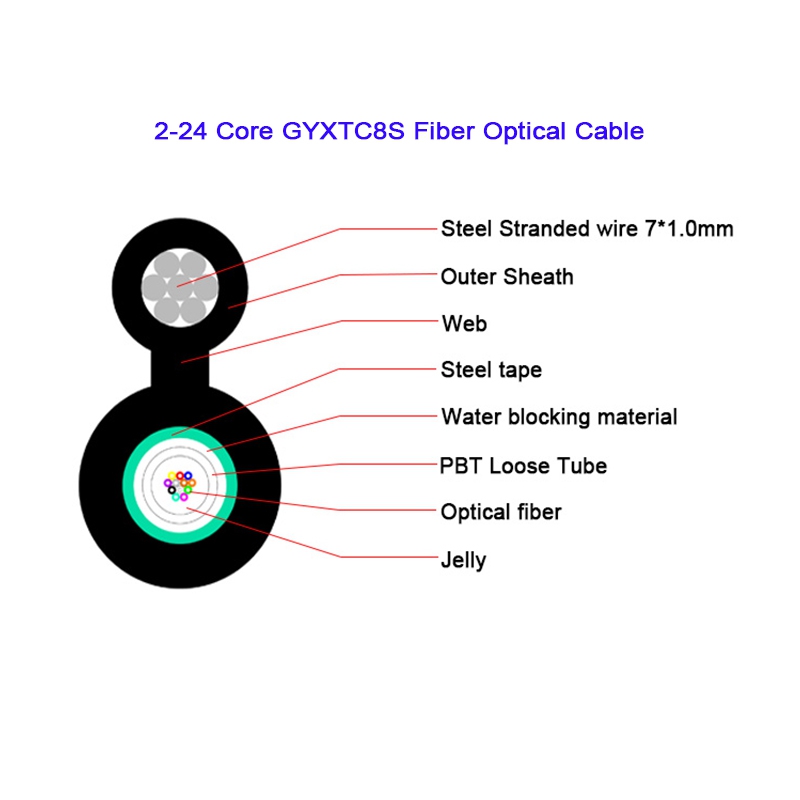

    In the GYXTC8S cable,single-mode/multimode fibers are posiioned in the loose tube, which is made of high modulus plastic materials andfiled with filing compound.PSP is longitudinally applied around the loose tube,and water-blocking materials are distributed into interstices ofit.Then.this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8structure.
    Application:
    Self supporting Aerial
    ● High performance optical network operating.
    ● High speed optical routes in buildings (FTTX)
    ● All types of fiber cables with different structures.
    Feature
    ●  2-24 Core Fiber Optic Cable with 8.3mm diameter ,
    ● HDPE osheathing,Armored with corrogated steel tape.
    ●  Armored under PE sheath.Water blocking tape between steel tape and cable core.
    ● cable core is filled with jell for waterproofing,
    ● Messenger Wire:messenger wire outer diameter with 5.0mm
    ● HDPE outer sheathing With 1.0X7=3.0mm phosphatized steel messenger wire for long lasting construction
    Temperature Range
    Operating:  -40‘℃ to +70°
    Storage:     -40‘℃ to +70°C
    Standard
    Comply with stand YD/T 1155-2001 as well as lEC60794-1.

    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth(Class A)
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm
    -


      Technique Parameter

    Cable Type
    Fiber Count
    Tube
    Cable Diameter(mm)
    Cable weight(KG/KM)
    Tensile Strength
    Long/Short Term N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static /Dynamic
    mm

    GYXTC8S-2
    2
    1
    7.5×14.5
    105
    1000/3000
    1000/3000
    10D/20D
    GYXTC8S-4
    4
    1
    7.5×14.5
    105
    1000/3000
    1000/3000
    10D/20D
    GYXTC8S-6
    6
    1
    7.5×14.5
    105
    1000/3000
    1000/3000
    10D/20D
    GYXTC8S-8
    8
    1
    7.5×14.5
    105
    1000/3000
    1000/3000
    10D/20D
    GYXTC8S-12
    12
    1
    7.5×14.5
    105
    1000/3000
    1000/3000
    10D/20D
