GYTA53 2~288 Core Double Jacket Double Armored Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

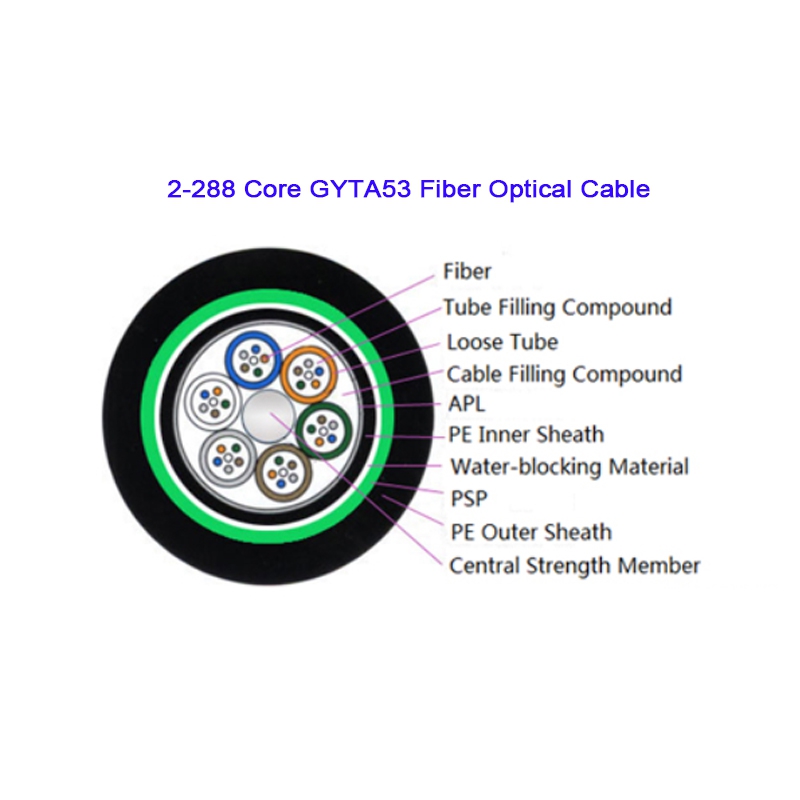

    The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filed with a water-resistant fling compound. A steel wire locates in the center ofthe core as a non-metaic sirenoth member. Thetubes (and flers) are stranded around the strength member into a compacand circular core. An Aluminum Polyethylene Laminate (APL) is aplied around the cable core. Then the cable core is covered with a thin polyethylene (PE) innersheath, which is filed withjiely to protect it from water ingress. After corugated steel tape armor is appled, the cable is completed wth a PE outer sheath
    Features
    ● Good mechanical and temperature performance
    ● Hiah strenath loose tube that is hydrolysis resistant
    ● Special tube filling compound ensure a critical protection of fiber
    ● Loose tubes filling compound
    ● Crush resistance and flexibility
    ● The following measures are taken to ensure the cable water tigh
    ● Single fiber reinforced plastic as the central strength member
    ● 100% cable core filling
    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth（Class A）
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm
    -


      Technique Parameter
    Fiber Count
    Tubes
    Fillers
    Cable Diameter(mm)
    Cable weight(KG/KM)
    Tensile Strength
    Long/Short Term N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static /Dynamic
    mm

    GYTA53-2~6
    2~6
    5
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTA53-8~12
    8~12
    4
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTA53-14~18
    14~18
    3
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTA53-20~24
    20~24
    2
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTA53-26~30
    26~30
    1
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTA53-32~36
    32~36
    0
