GYTY53 2~288 Core Double Jacket Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

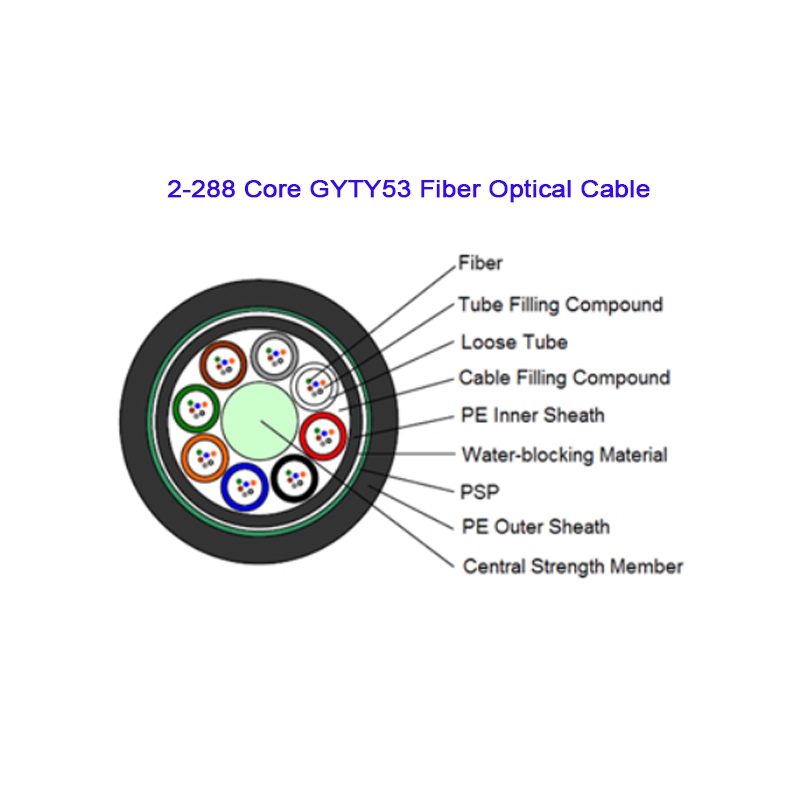

    GYTY53, the fibers, 250um, are positioned in a loose tube made of a hioh modulus plastic. The tubes are flled with a water-resistant fling compound. Asteel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count,locates in the center of core as a metaic strength membelTubes (and filers) are stranded around the strength member into a compact and circular cable core. The cable core is filed with the fiingcompound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the innersheath,the cable is completed with a PE outer sheath.
    Features
    ● Good mechanical and temperature performance
    ● High strength looes tube that is hydrolysis resistant
    ● Special tube filling compound ensure a critical protection of fiber
     Crush resistance and flexibility
    The following measures are taken to ensure the cable watertight.
     Steel wire used as the central strength member
     Loose tube filling compound
     100% cable core filling
     PSP enhancing moisture-proof
     Water-blocking material
    Standard
    GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth(Class A)
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm



    Technique Parameter
    Fiber Count
    Tubes
    Fillers
    Cable Diameter(mm)
    Cable weight(KG/KM)
    Tensile Strength
    Long/Short Term N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static /Dynamic
    mm

    GYTY53-2~6
    1
    5
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTY53-8~12
    2
    4
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTY53-14~18
    3
    3
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTY53-20~24
    4
    2
    13.8
    188
    1000/3000
    1000/3000
    10D/20D
    GYTY53-26~30
    5
    1
    13.8
    188
    1000/3000
