GYTS 2~144 Core Armored Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

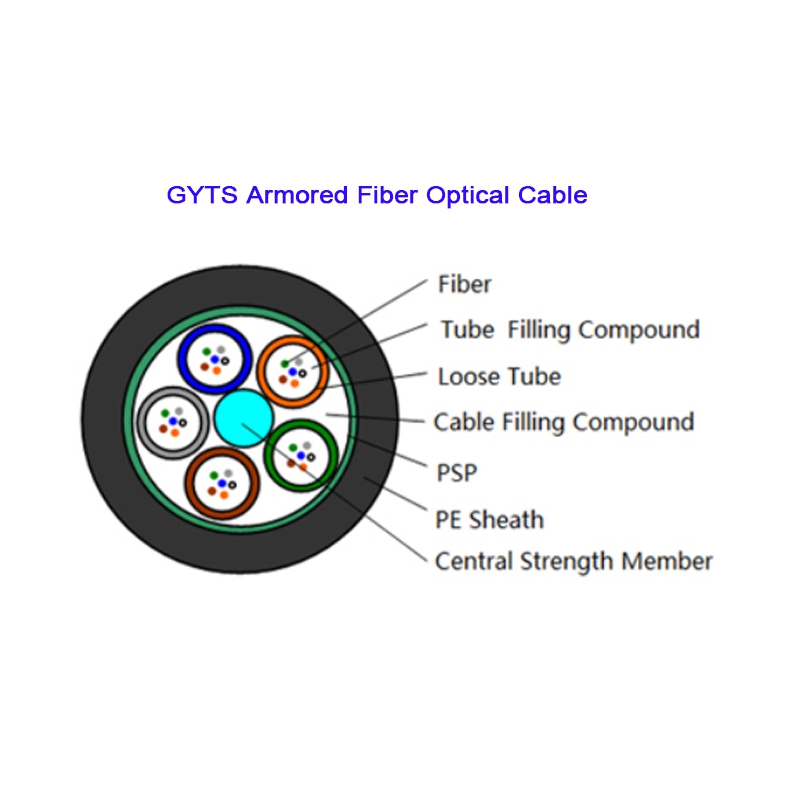

    The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are flled with a water-resistant filing compoundA steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metalic strengthmember. Tubes (and filers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinallyapplied over the cable core, which is filed with the filing compound to protect it from water ingress. The cable is completed with a PE sheath
    Characteristics
    ● Good mechanical and temperature performance
    ● High strength looes tube that is hydrolysis resistant
    ● Special tube filling compound ensure a critical protection of fiber
    ● Specially designed compact structure is good at preventing loose tubes from shrinking
    ● Crush resistance and flexibility
    ● PE sheath protects cable from ultraviolet radiation
    ● The following measures are taken to ensure the cable watertight:
    ● Steel wire used as the central strength member
    ● Loose tube filling compound
    ● 100% cable core filling
    ● PSP enhancing moisture-proof
    Standards
    GYTS cable complies with Standard YD/T 901-2001as well as lEC 60794-1.
    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth（Class A）
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm



    Technique Paremeter
    Fiber Count
    Tubes
    Fillers
    Cable Diameter(mm)
    Cable weight(KG/KM)
    Tensile Strength
    Long/Short Term N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static /Dynamic
    mm

    GYTS-2~6
    1
    4
    9.7
    90
    600/1500
    300/1000
    10D/20D
    GYTS-8~12
    2
    3
    9.7
    90
    600/1500
    300/1000
    10D/20D
    GYTS-14~18
    3
    2
    9.7
    90
    600/1500
    300/1000
    10D/20D
    GYTS-20~24
    4
    1
    9.7
    90
    600/1500
    300/1000
    10D/20D
    GYTS-26~30
    5
    0
    9.7
    90
    600/1500
    300/1000
    10D/20D
    GYTS-32~36
    6
    0
