GYFTY 2~144 Core Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

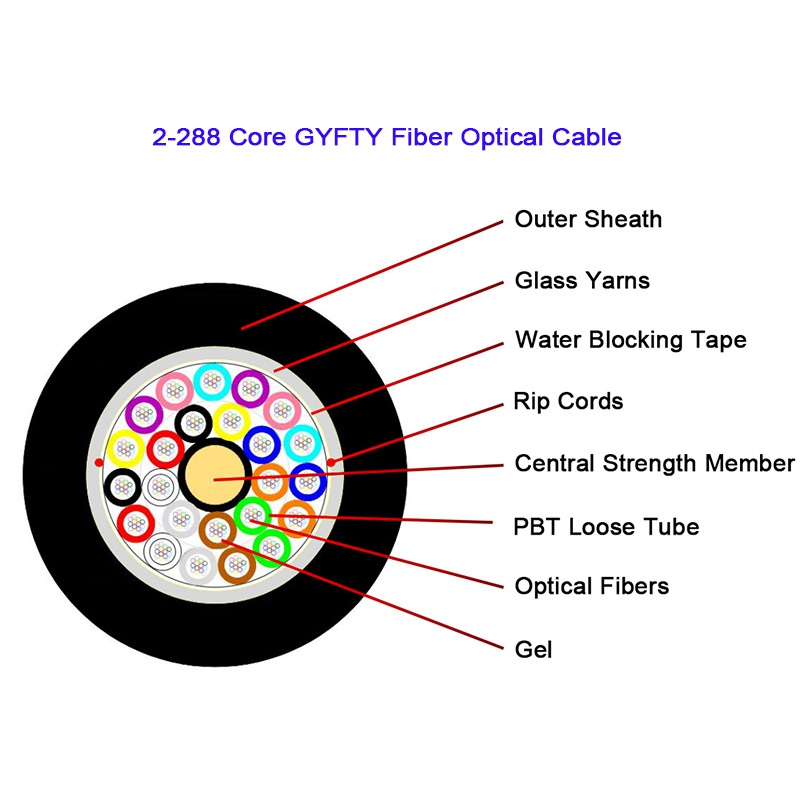

    The structure of the GYFTY cable is to insert a 250 um fiber into a loose tube made of a high modulus materia, and the loose tube is filecwith a waterproof compound.At the center of the core is a fiberglass reinforced plastic (FRP), and the loose tube (and the filing rope) istwisted around the central reinforcing core into a compact and round core with a gap in the core filed with a water-blocking filer. The outercore of the cable is extruded with a polyethylene inner sheath to form a cable.
    Features
    ● Adopt "SZ" two-way layer twisting technology
    ● Step by step water-blocking grease filling, full-section water blocking
    ● Steel (aluminum) with lap joint bonding is reliable, high strength, no twisting and cracking
    ● The fiber length control is stable
    ● After cable is formed., the additional attenuation of the fiber is almost zero, and the dispersion value is unchanged
    ● Excellent environmental performance, suitable for temperature range -10 °C ~ +70 °C
    ● Suitable for overhead, pipeline, direct burial. etc
    Applicable
    Strong electric area, overhead
    Optical Characteristics

    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm


    ≤3.0 dB/km
    ≤3.0 dB/km
    @1300nm


    ≤1.0 dB/km
    ≤1.0 dB/km
    @1310nm
    ≤0.00    dB/km
    ≤0.00dB/km


    @1550nm
    ≤0.00    dB/km
    ≤0.00dB/km


    Bandwidth（Class A）
    @850nm


    ≥500 MHz·km
    ≥200 MHz·km
    @1300nm


    ≥500    MHz·km
    ≥500 MHz·km
    Numerical aperture


    0.200±0.015NA
    0.275±0.015NA
    Cable Cutoff Wavelength
    ≤1260nm
    ≤1480nm



    Technique Paremeter
    Fiber Count
    Nominal Diameter(mm)
    Nominal Diameter(KG/KM)
    Fiber per tube
    No. Of Tubes+Fillers
    Allowable Tensile Load(N)
    Allowable Crush Resistance (N/100mm)
    Short term
    Long term
    Short term
    Long term
    2~36
    10.2
    85
    6
    6
    1500
    600
    1000
    300
    38~72
    11.1
    100
    12
    6
    1500
    600
    1000
    300
    74~96
    12.6
    130
    12
    8
    1500
    600
    1000
    300
    98~120
    14.1
    162
    12
    10
    1500
    600
    1000
    300
    122~144
    15.9
    204
    12
    12
    1500
    600
    1000
    300
    146~216
    15.9
