GYXTW 2~24 Core Fiber Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core,
● Fiber Type:  G652D, G657A1
● Jacket Material: PE,HDPE
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

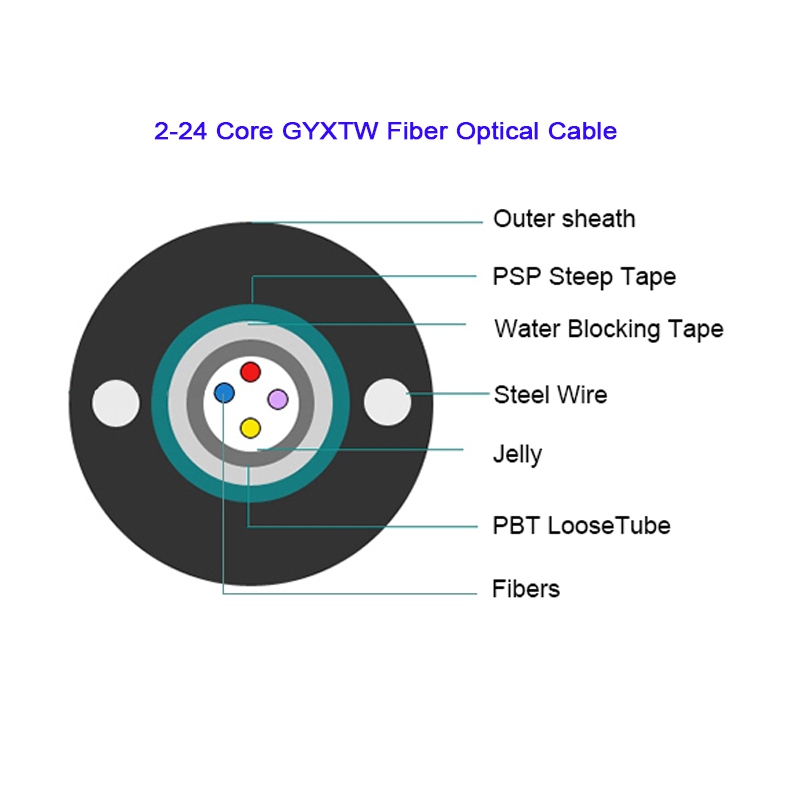

    In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which ismade of high modulus plastic materials and filled with filling compound. PSP is longitudinallyapplied around the loose tube, and water-blocking materials are distributed into intersticesbetween them to guarantee the compactness and longitudinal water-blocking performance. Twoparallel steel wires are placed at both sides of the cable core while PE sheath is extruded over
    Features
    ● Excellent mechanical and temperatureperformanceguaranteed by the accurate excess fiber lengt.
    ● Critical protection to fibers, based on the excellent hydrolysis resistance.
    ● Excellent crush resistance and flexibility.
    ● PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
    ● Two parallelsteel wires ensure tensile strength.
    ● Excellent ultraviolet prevention with PE sheath, small diameter, light weight and installation friendliness.
    Application
    ●  Aerial/Duct/Outdoor
    Standards
    ●  ITU-T G655;IEC60973-2-50 B4;DL/T 788-2016;YD/T 901-2009

    Optical Fiber Characteristics:

    Fiber Type

    9/125μm G.652D

    62.5/125µm OM2

    50/125µm OM3

    Operational

    Wavelength

    1310nm

    1550nm

    850nm

    1300nm

    850nm

    1300nm

    Attenuation (db/km)

    0.35

    0.21

    ≤3.0

    ≤1.5

    ≤3.0

    ≤0.8

    Bandwidth

    (MHz-km)

    -

    -

    ≥500

    ≥500

    ≥1500

    ≥500

    Fiber-Type &Refractive Index

    9/125μm G.652D

    50/125µm OM2

    50/125µm OM3

    Mode-Field/Cladding Diameter(µm)

    9.0±0.3

    1250.7

    50±2.5

    125±1

    50±2.5

    125±1

    Wavelength

    (nm)

    1310

    1150

    850

    1300

    850

    1300

    Dispersion

    (ps/(nm-km)

    ≤3.4

    ≤18

    -

    -

    PMD

    (ps/km)

    ≤0.1

    -

    -

    CableCut-off

    Wavelength

    (nm)

    ≤1312±12

    -

    -

    Numerical Aperture (µm)

    -

    0.275±0.015

    0.275±0.015

    Refractive Index

    -

    1.482

    1.477

    1.477


    Technical Characteristics

    Item

    Parameter

    Fiber count

    4 G.652d

    12 OM1

    24G.652d

    Number of tube

    1

    1

    1

    No. of fibers per tube

    4

    12

    24

    Cable OD

    7.0±0.2mm

    7.0±0.2mm

    9.0±0.3mm

    Steel wire

    0.8mm

    0.8mm

    0.8mm

    Cable sheathing material

    MDPE

    MDPE

    MDPE

    Cable weight

    55kg/km±10%

    60kg/km±10%

    75kg/km±15%

    Operation temperature range

    -40℃ to 70℃

    -40℃ to 70℃

    -40℃ to 70℃

    Installation temperature range

    -10℃ to 60℃

    -10℃ to 60℃

    -10℃ to 60℃

    Transport and storage temperature range

    -40℃ to 70℃

    -40℃ to 70℃

    -40℃ to 70℃

    Short Term Pulling Tension

    1000 N

    1000 N

    1000 N

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
