ADSS Double Jacket Fiber Optical Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

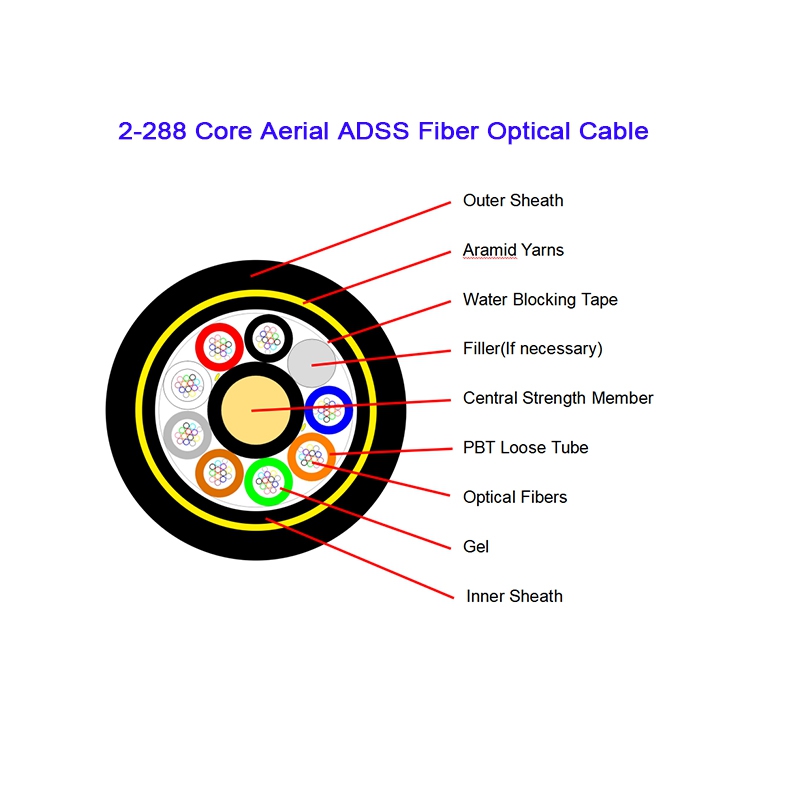

    ADSS cable is loose tube stranded. Fibers, 250ym , are positioned into a loose tube made of high modulus plasticsThe tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (FiberReinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cablecore is filed with filing compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramidyarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outersheath.
    Characteristics
    ● Can be installed without shutting off the power
    ● Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach25kv
    ● Light weight and small diameter reducing the load caused by ice and wind and the load on towersand backprops
    ● Large span lengths and the largest span is over 1000m
    ● Good performance of tensile strength and temperature
    ● The desian life span is 25 years
    Application
    The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. Foloverhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV. AT outersheath is applied. The dedicate desian of aramid guantity and stranding process can satisfy the demand on varlousspans.
    Standards
    ADSS cable complies with Standard lEEE P 1222 as well as lEC 60794-1

    Optical Characteristics



    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation (+20℃)

    @850nm





    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm





    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.00    dB/km

    ≤0.00dB/km





    @1550nm

    ≤0.00    dB/km

    ≤0.00dB/km





    BandwidthClass A

    @850nm





    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm





    ≥500    MHz·km

    ≥500 MHz·km

    Numerical aperture





    0.200±0.015NA

    0.275±0.015NA

    Cable Cutoff Wavelength

    ≤1260nm

    ≤1480nm






    Technique Parameter

    Item

    Parameters

    Fiber count

    /

    2~30

    32~60

    62~72

    96

    144

    Structure

    /

    1+5

    1+5

    1+6

    1+8

    1+12

    Fiber Type

    /

    G.652D

    Central strength member

    Material

    mm

    FRP

    Diameter(average)

    1.5

    1.5

    2.0

    2.0

    2.0

    Loose Tube

    Material

    mm

    PBT

    Diameter(average)

    1.8

    2.0

    2.0

    2.0

    2.0

    Thickness(average)

    0.32

    0.35

    0.35

    0.35

    0.35

    Max fiber/loose tube

    6

    12

    12

    12

    12

    Tubes color

    Full color identification

    Fiber excess length

    %

    0.7~0.8

    Water Blocking Layer

    Material

    /

    Flooding Compound

    Inner Sheath

    Material

    mm

    PE

    Thickness
