ADSS Single Jacket Fiber Cable

● Fiber Count: 2 Core, 4 Core, 8  Core, 12 Core, 24 Core, 36 Core, 48 Core, 72 Core, 96 Core, 144 Core and 288 Core.
● Fiber Type:  G652D, G657A1, G655.
● Jacket Material: PE,HDPE OR AT.
● Cable Length: MOQ 2KM.
● Package: Fumigate Wooden Drum. 2KM, 3KM,4KM per Drum.
● Extra service: FC,LC, ST, SC connector Assembly
  • Description
  • Technical data
  • Make an inquiry
    Description

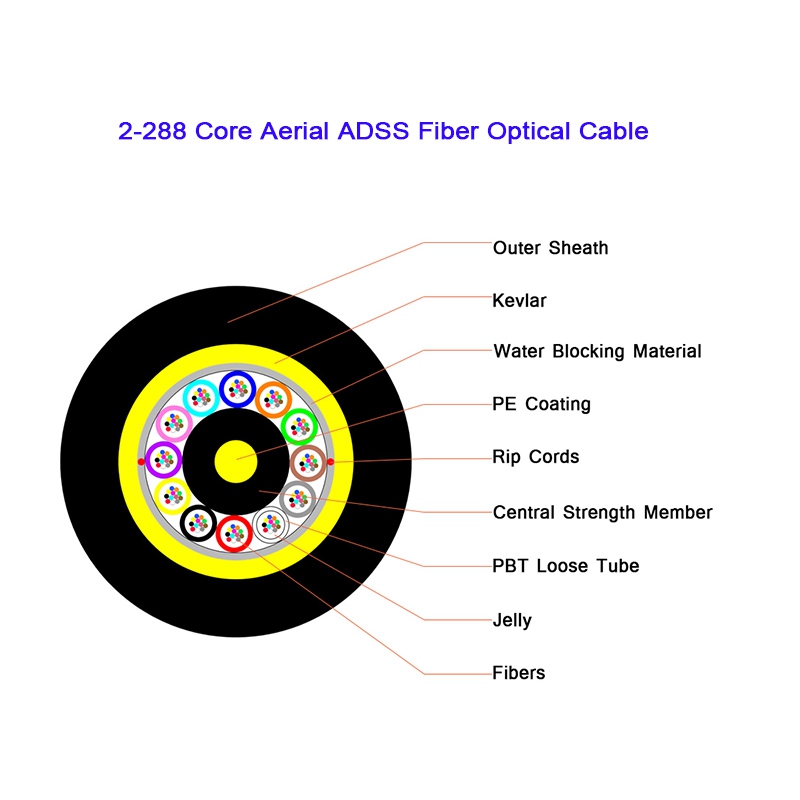

    ADSS cable is loose tube stranded. Fibers, 250ym , are positioned into a loose tube made of high modulus plasticsThe tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (FiberReinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cablecore is filed with filing compound. it is covered with thin PE (polyethylene)/ATsheath.
    Characteristics
    ● Can be installed without shutting off the power
    ● Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach25kv
    ● Light weight and small diameter reducing the load caused by ice and wind and the load on towersand backprops
    ● Large span lengths and the largest span is over 1000m
    ● Good performance of tensile strength and temperature
    ● The desian life span is 25 years
    Application
    The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. Foloverhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV. AT outersheath is applied. The dedicate desian of aramid guantity and stranding process can satisfy the demand on varlousspans.
    Standards
    ADSS cable complies with Standard lEEE P 1222 as well as lEC 60794-1

    Item

    Parameters

    Fiber Count

    /

    2~30

    32~60

    62~72

    96

    144

    Structure

    /

    1+5

    1+5

    1+6

    1+8

    1+12

    Fiber Type

    /

    G.652D

    Central strength member

    Material

    mm

    FRP

    Diameter(average)

    1.5

    1.5

    2.1

    2.1

    2.1

    Loose Tube

    Material

    mm

    PBT

    Diameter(average)

    1.8

    2.0

    2.0

    2.0

    2.0

    Thickness(average)

    0.32

    0.35

    0.35

    0.35

    0.35

    Max fiber/loose tube

    6

    12

    12

    12

    12

    Tubes color

    Full color identification

    Fiber excess length

    %

    0.7~0.8

    Water Blocking Layer

    Material

    /

    Cable jelly + water resistant layer

    Additional Strengthen Member

    Material

    /

    Aramid Yarn

    Outer Sheath

    Material

    mm

    MDPE

    Outer sheath

    1.8mm

    Cable diameter(average)



    mm

    9.6

    10.2

    10.8

    12.1

    15.0

    Cable weight (Approximate)



    KG/KM

    70

    80

    90

    105

    125

    Cable Sectional area

    mm2

    72.38

    81.72

    91.61

    115

    176.7

    Attenuation coefficient(Max)

    1310nm

    dB/km

    0.35

    1550nm

    0.21

    Rated Tensile Strength(RTS)

    KN

    5.8

    Max allowed tension( MAT)

    KN

    2.2

    Annual average operating tension (EDS)

    M/s

    3.0

    Young‘s modulus

    Kn/mm2

    7.6

    Coefficient of thermal expansion

    10-6/

    9.3

    Crush resistance

    Long term

    N/100mm

    1100

    Short term

    2200

    Min. Bend Radius

    Static

    mm

    15D

    Dynamic

    20D

    Temperature

    When Laying

    -20-+60

    Storage and transportation

    -40~+70

    Running

    -40~+70

    Scope of application

    Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm

    Cable Marks

    Company Name ADSS-xxB1-PE-100M DL/T 788-2001 xxxxM Year

    Or at customer‘s request)
